Name: B&C 4CXN36 16 Ohm
Brand: B&C
SKU: 4CXN36
Availability: InStock

Media

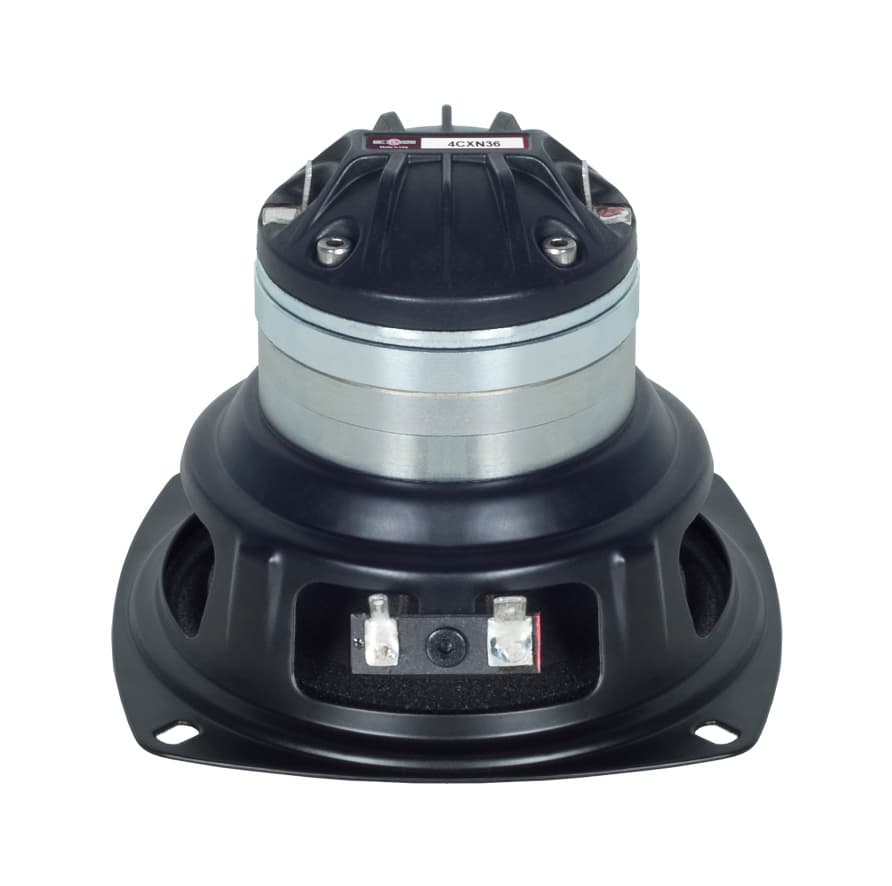

B&C 4CXN36 4 inch 16 ohm loudspeaker driver view 1

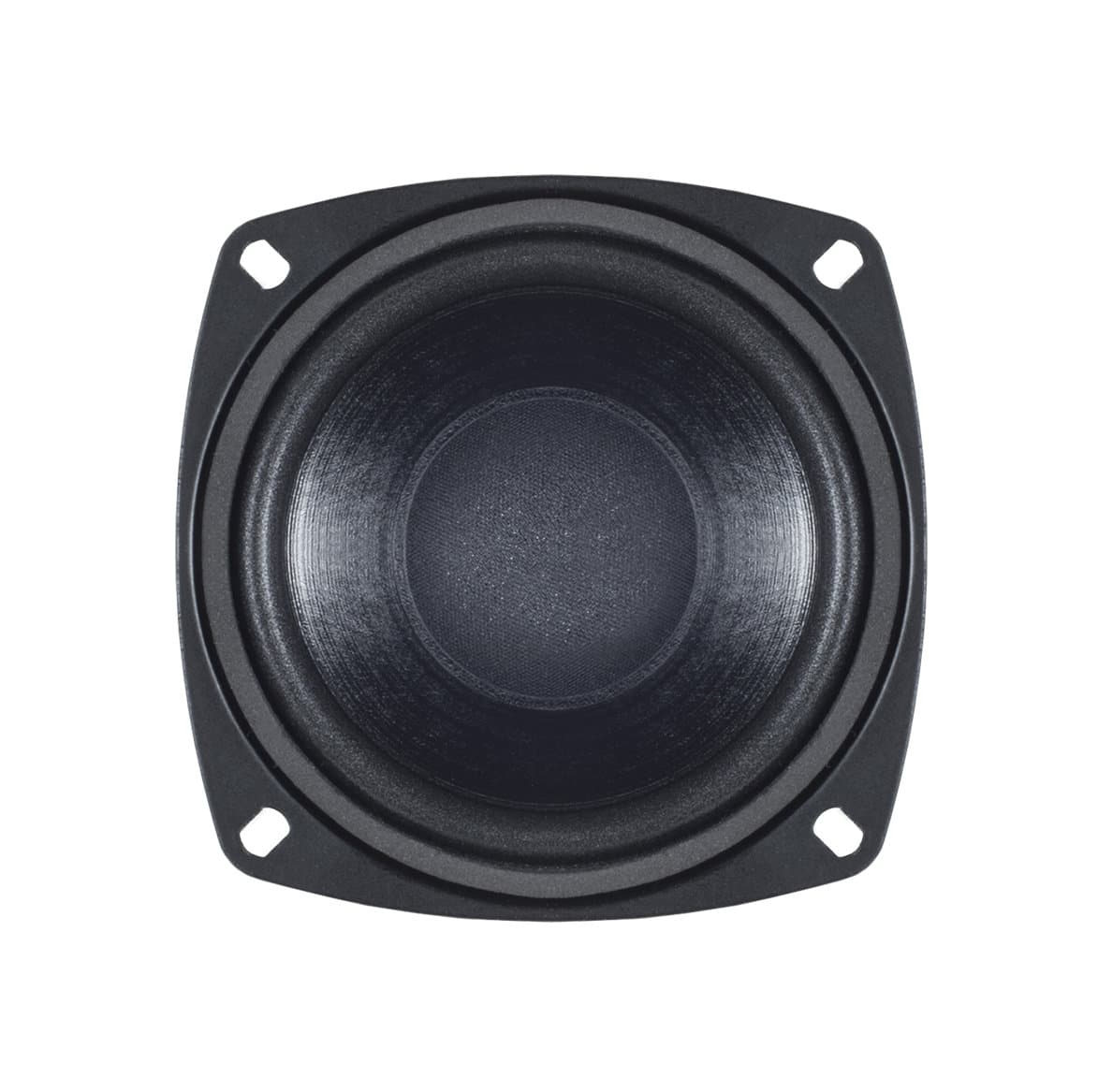

B&C 4CXN36 4 inch 16 ohm loudspeaker driver view 2

Auto-advancing

Overview

LF Driver4CXN series

B&C

B&C 4CXN36

B&C 4CXN36 is a 4" 16 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 110Hz, Qts 0.97, Vas 1.6L, Xmax 5mm, sensitivity 85.1dB, plus 28cm³ Vd and 105 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £67.54.

Size

Impedance

16Ω

RMS Power

100W

Sensitivity

85.1dB

EBP

105

Vented alignment

V_d

28cm³

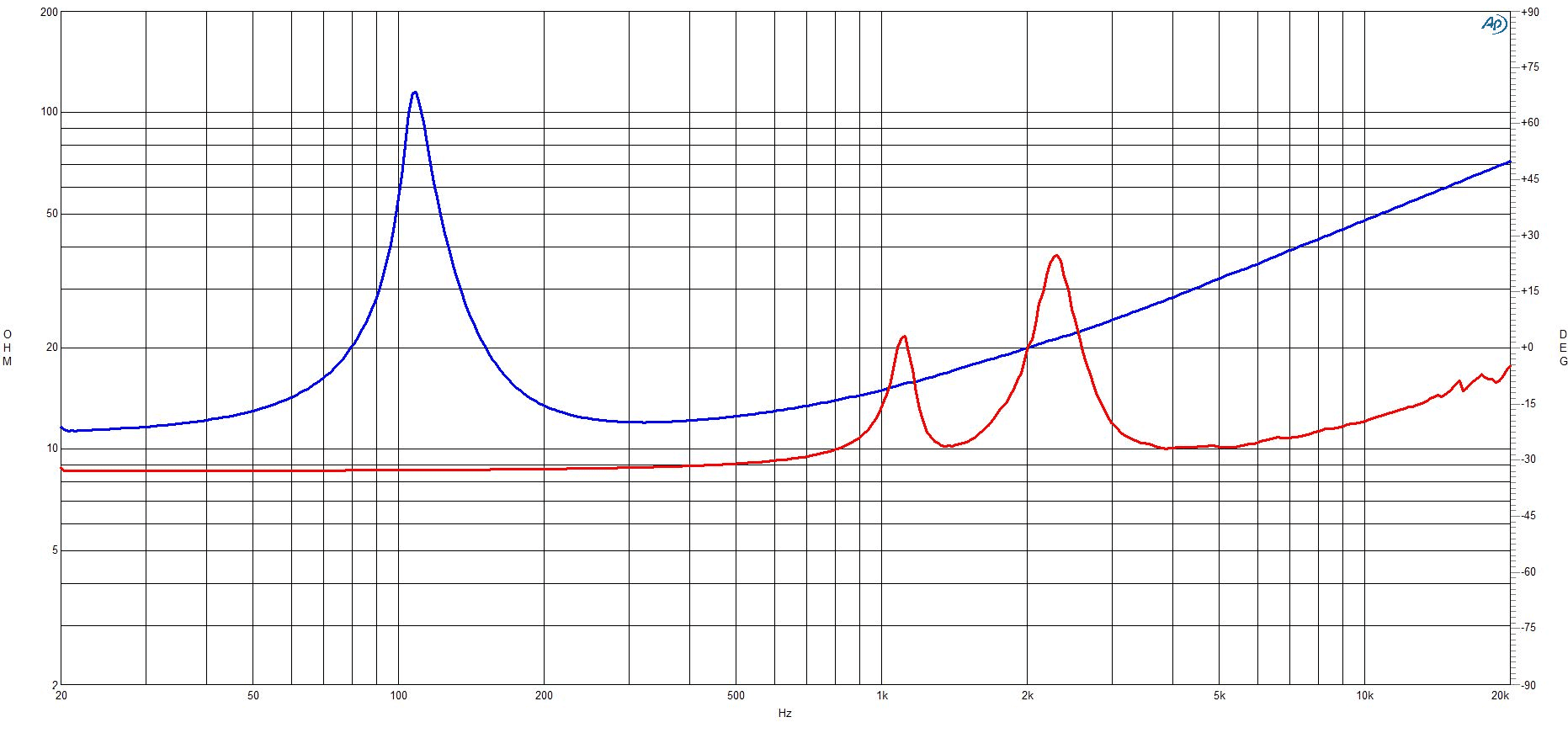

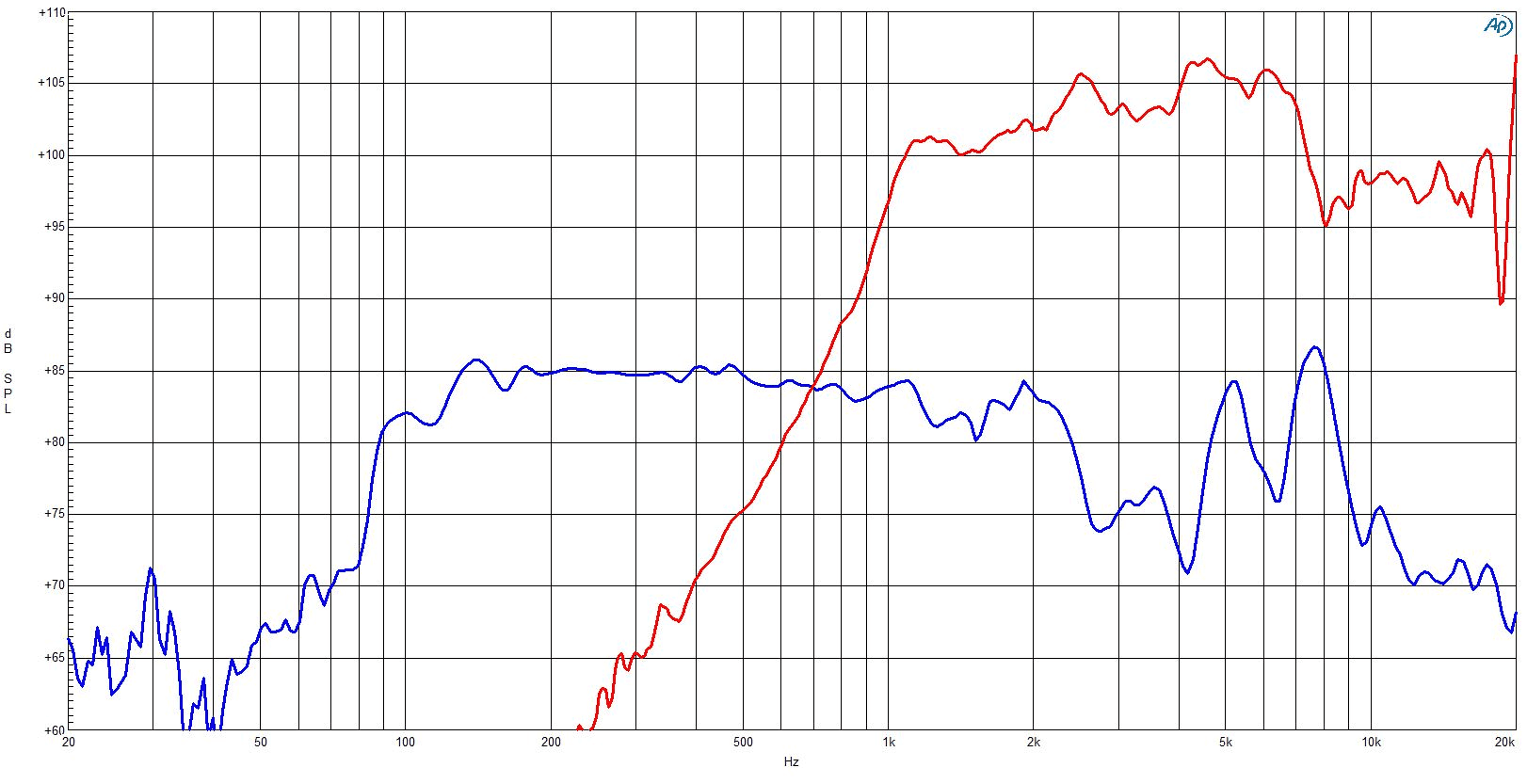

Frequency response

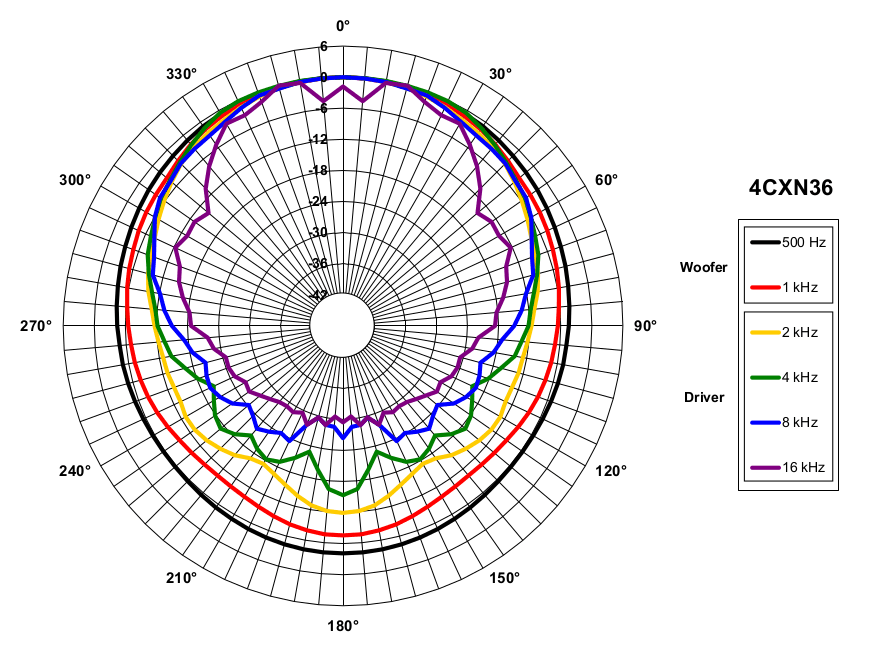

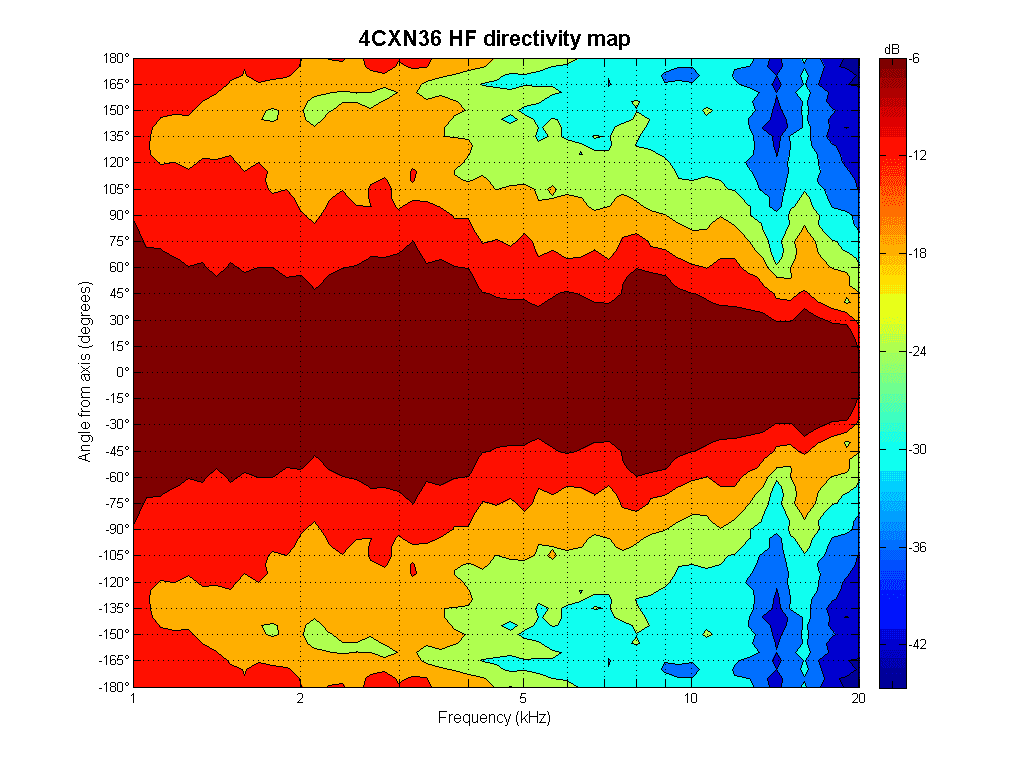

Manufacturer-provided response plots and related charts.

3 images

Overall Parameters

Valid

Canonical

Fs110Hz

Qts0.97

Qes1.05

Qms12.1

Vas1.6L

Re10.9Ω

Le1.26mH

BL6.4Tm

Sd56cm²

Mms6g

Xmax5.0mm

SPL85dB

Power100W

Power Nominal100W

Impedance16Ω

Min Impedance12.0Ω

Voice Coil34mm

Flux Density0.74T

Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.

What this validation status means

Pricing & availability

Price definitions

Price movement

Best current price

£67.54

inc VAT·Vendor hidden

View vendor

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Driver Components

LFSpecifications LF unit

Fs110 Hz

Qts0.97

Qes1.05

Qms12.1

Vas1.6 L

Re10.9 Ω

Le1.26 mH

BL6.4 Tm

Sd56 cm²

Mms6 g

Xmax5.0 mm

SPL85 dB

Power100 W

Power Nominal100 W

Impedance16 Ω

Min Impedance12.0 Ω

Voice Coil34 mm

Flux Density0.74 T

HFSpecifications HF unit

Le0.14 mH

SPL102 dB

Power25 W

Power Nominal25 W

Impedance16 Ω

Min Impedance10.2 Ω

Xover2000 Hz

Voice Coil36 mm

Flux Density1.65 T

Additional Manufacturer Specs

Bl6.43 Tm

Fs110 Hz

Le1.26 mH

Re10.9 Ω

Sd56 cm² (8.68 in²)

Ebp105 Hz

Mms5.8 g

Qes1.05

Qms12.1

Qts0.97

Vas1.6 dm³ (0.06 ft³)

η00.19 %

Xvar5 mm

Winding Depth11.2 mm (0.44 in)

Former MaterialGlass Fibre

Nominal Diameter100 mm (4 in)

Winding MaterialCopper

Magnetic Gap Depth6 mm (0.24 in)

Woofer Cone TreatmentWP Waterproof Front Side
