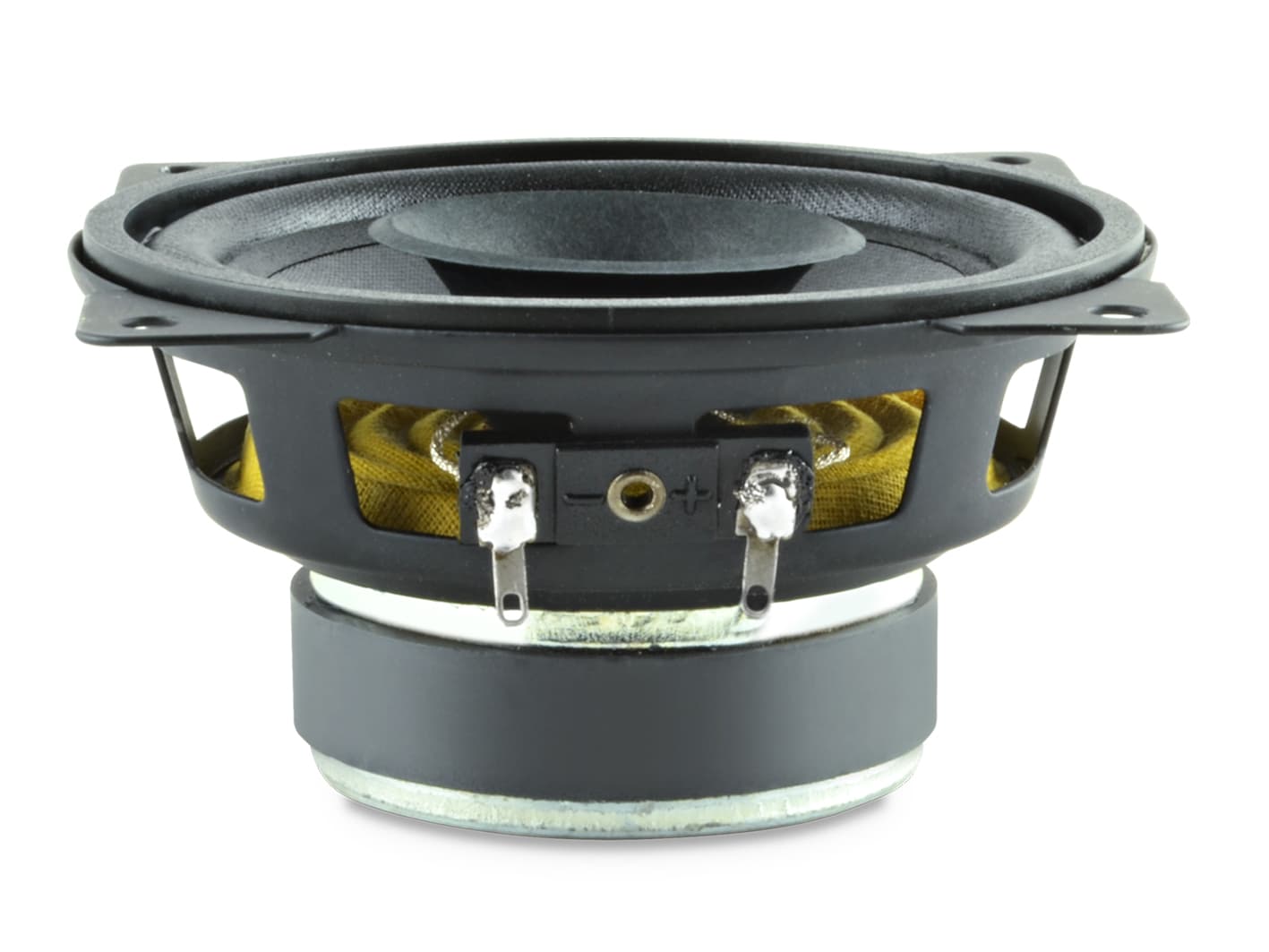

REDCATT 40NFR 16Ω
16 Ω
£25.57
Lautsprecherteile · 16 in stock · All 1 offer
- Fs
- 115Hz
- Xmax
- 0.45mm
- SPL
- 85dB
- Pe
- 25W
- BL
- 5.3T·m
- Vd
- 2cm³
- Qts
- 1.10
- Vas
- 2L
REDCATT 40NFR is a 4-inch 16 ohm LF driver rated at 25 W RMS. The validated T/S data includes Fs 115 Hz, Qts 1.10, Vas 1.5 L, Xmax 0.45 mm, sensitivity 84.5 dB, plus 2 cm³ Vd and 88 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £25.57.
The published T/S values agree with each other
Thiele/Small
- Fs
- 115Hz
- Qts
- 1.10
- Qes
- 1.30
- Qms
- 6.2
- Vas
- 1.5L
- Re
- 12.3Ω
- Le
- 0.20mH
Motor and cone
- BL
- 5.3T·m
- Sd
- 50cm²
- Mms
- 4g
- Xmax
- 0.45mm
- Vd †
- 2cm³
- Voice coil
- 19mm
Power and response
- Sensitivity †
- 84.5dB
- Manufacturer sensitivity
- 85.5dB
- Power
- 25W
- Impedance
- 16Ω
- EBP †
- 88 · Sealed or vented
Size and mounting
- Diameter
- 103.5mm
- Cutout
- 91mm
- Bolt circle
- 115mm
- Weight
- 0.2kg
Other published values
- Xmech
- 4.45
- Power Peak
- 100
Other dimensions
- Mounting Depth
- 50.5
Sensitivity shows 84.5 dB, calculated from the T/S values. REDCATT publishes 85.5 dB, 1.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 4″
- BL
- 5.3T·m
- Fs
- 115Hz
- Le
- 0.20mH
- Re
- 12.3Ω
- Sd
- 50cm²
- Mms
- 4g
- Qes
- 1.30
- Qms
- 6.2
- Qts
- 1.10
- SPL
- 84.5dB
- Vas
- 1.5L
- Xmax
- 0.45mm
- Xmech
- 4.45
- Power
- 25W
- Impedance
- 16Ω
- Power Peak
- 100
- Sensitivity
- 85.5dB
- Calculated sensitivity †
- 84.5dB
- Manufacturer sensitivity
- 85.5dB
- Voice coil
- 19mm
- Weight
- 0.2kg
- Diameter
- 103.5mm
- Mounting Depth
- 50.5
- Cutout
- 91mm
- Bolt circle
- 115mm
