Visaton FR 87 4Ω
4 Ω · 100–20000 Hz
£8.07
SteadyParts Express · 6 in stock · Ships from United States · All 2 offers
- Fs
- 137Hz
- Xmax
- 0.65mm
- SPL
- 85dB
- Pe
- 15W
- BL
- 2.1T·m
- Vd
- 2cm³
- Qts
- 1.25
- Vas
- 1L

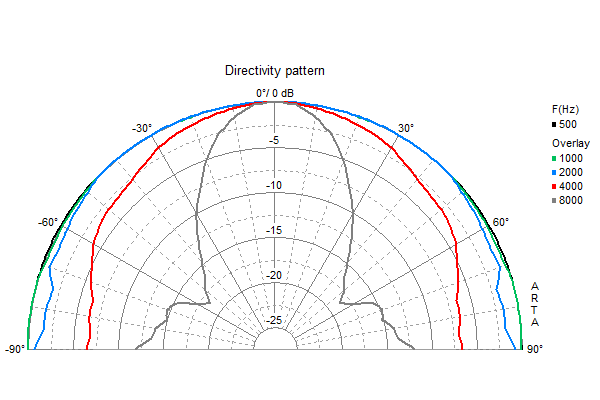

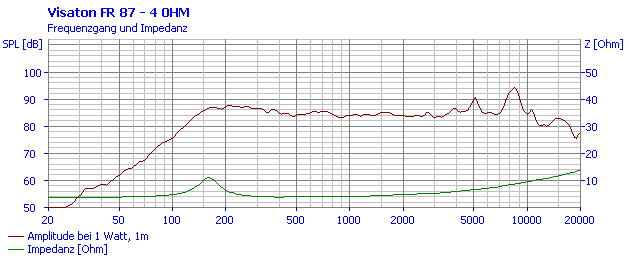

Published graphs
Visaton FR 87 is a 3.5-inch 4 ohm LF driver rated at 15 W RMS. The validated T/S data includes Fs 137 Hz, Qts 1.25, Vas 1.3 L, Xmax 0.65 mm, sensitivity 85.3 dB, plus 2 cm³ Vd and 88 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £8.07.
The published T/S values agree with each other
Thiele/Small
- Fs
- 137Hz
- Qts
- 1.25
- Qes
- 1.56
- Qms
- 6.4
- Vas
- 1.3L
- Re
- 3.5Ω
- Le
- 0.20mH
Motor and cone
- BL
- 2.1T·m
- Sd
- 37cm²
- Mms
- 2g
- Xmax Derived
- 0.65mm
- Vd †
- 2cm³
- Voice coil
- 15mm
Power and response
- Sensitivity †
- 85.3dB
- Manufacturer sensitivity
- 85dB
- Power
- 15W
- Impedance
- 4Ω
- Range
- 100–20000Hz
- EBP †
- 88 · Sealed or vented
Size and mounting
- Diameter
- 87mm
- Cutout
- 80mm
- Weight
- 0.2kg
Other published values
- Xmech
- 2
- Power Peak
- 20
† Calculated by bits from the published values
What this validation status means
Everything else Visaton lists
LF · Primary · 3.5″
- BL
- 2.1T·m
- Fs
- 137Hz
- Le
- 0.20mH
- Re
- 3.5Ω
- Sd
- 37cm²
- Mms
- 2g
- Qes
- 1.56
- Qms
- 6.4
- Qts
- 1.25
- SPL
- 85.3dB
- Vas
- 1.3L
- Xmax
- 0.65mm
- Xmech
- 2
- Power
- 15W
- Impedance
- 4Ω
- Power Peak
- 20
- Sensitivity
- 85dB
- Low limit
- 100Hz
- Calculated sensitivity †
- 85.3dB
- High limit
- 20000Hz
- Manufacturer sensitivity
- 85dB
- Voice coil
- 15mm
- Weight
- 0.2kg
- Diameter
- 87mm
- Cutout
- 80mm
