3-inch LF driver · SL series · 15 mm voice coil · 10 W
Visaton SL 713 4Ω
4 Ω · 100–20000 Hz
No price for delivery to the UK
- Fs
- 180Hz
- Xmax
- 1mm
- SPL
- 88dB
- Pe
- 10W
- BL
- 1.9T·m
- Vd
- 5cm³
- Qts
- 1.70
- Vas
- 2L

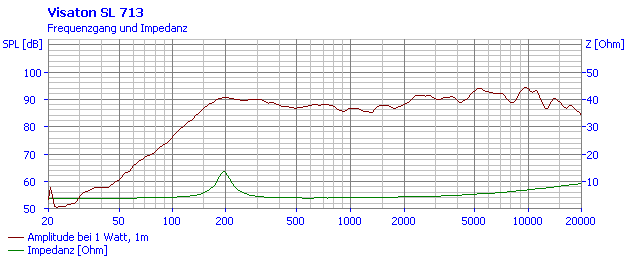

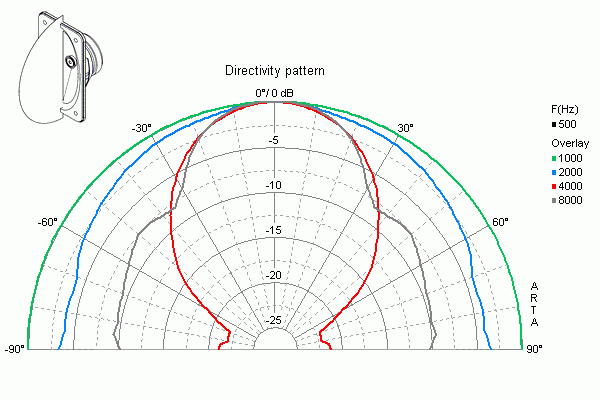

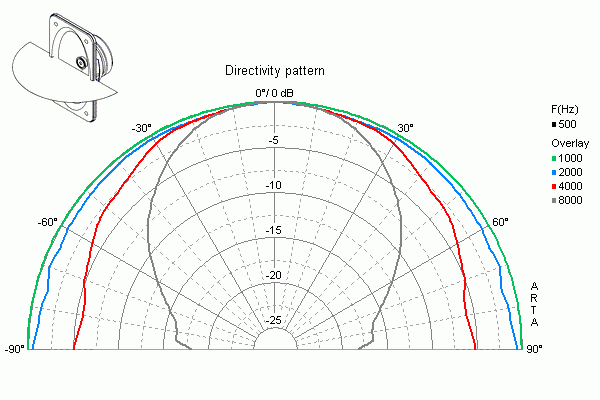

Published graphs
Visaton SL 713 is a 3-inch 4 ohm LF driver rated at 10 W RMS. The validated T/S data includes Fs 180 Hz, Qts 1.70, Vas 1.5 L, Xmax 1 mm, sensitivity 88 dB, plus 5 cm³ Vd and 82 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £17.41.
The published T/S values agree with each other
Thiele/Small
- Fs
- 180Hz
- Qts
- 1.70
- Qes
- 2.20
- Qms
- 8.2
- Vas
- 1.5L
- Re
- 3.6Ω
- Le
- 0.20mH
Motor and cone
- BL
- 1.9T·m
- Sd
- 50cm²
- Mms
- 2g
- Xmax Derived
- 1mm
- Vd †
- 5cm³
- Voice coil
- 15mm
- Flux density
- 0.90T
Power and response
- Sensitivity †
- 88dB
- Manufacturer sensitivity
- 90dB
- Power
- 10W
- Impedance
- 4Ω
- Range
- 100–20000Hz
- EBP †
- 82 · Sealed or vented
Size and mounting
- Diameter
- 130mm
- Cutout
- 66mm
- Weight
- 0.28kg
Other published values
- Xmech
- 2
- Power Peak
- 15
Sensitivity shows 88.0 dB, calculated from the T/S values. Visaton publishes 90.0 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Visaton lists
LF · Primary · 3″
- BL
- 1.9T·m
- Fs
- 180Hz
- Le
- 0.20mH
- Re
- 3.6Ω
- Sd
- 50cm²
- Mms
- 2g
- Qes
- 2.20
- Qms
- 8.2
- Qts
- 1.70
- SPL
- 88dB
- Vas
- 1.5L
- Xmax
- 1mm
- Xmech
- 2
- Power
- 10W
- Impedance
- 4Ω
- Power Peak
- 15
- Flux density
- 0.90T
- Sensitivity
- 90dB
- Low limit
- 100Hz
- Calculated sensitivity †
- 88dB
- High limit
- 20000Hz
- Manufacturer sensitivity
- 90dB
- Voice coil
- 15mm
- Weight
- 0.28kg
- Diameter
- 130mm
- Cutout
- 66mm
