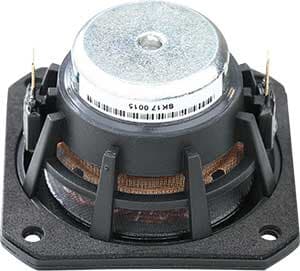

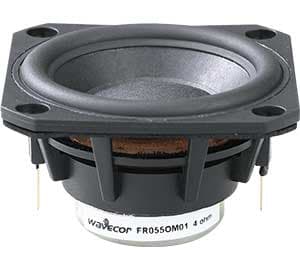

Wavecor FR055OM01 4Ω
4 Ω
No current price
- Fs
- 130Hz
- Xmax
- 1mm
- SPL
- 81dB
- Pe
- –
- BL
- 2T·m
- Vd
- 2cm³
- Qts
- 0.86
- Vas
- 0.35L
Wavecor FR055OM01 is a 2-inch 4 ohm LF driver. The validated T/S data includes Fs 130 Hz, Qts 0.86, Vas 0.35 L, Xmax 1 mm, sensitivity 81.1 dB, plus 2 cm³ Vd and 135 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 130Hz
- Qts
- 0.86
- Qes
- 0.96
- Qms
- 8.2
- Vas
- 0.35L
- Re
- 3.1Ω
Motor and cone
- BL
- 2T·m
- Sd
- 16cm²
- Mms
- 2g
- Xmax
- 1mm
- Vd †
- 2cm³
- Voice coil
- 22mm
Power and response
- Sensitivity †
- 81.1dB
- Impedance
- 4Ω
- EBP †
- 135 · Leans vented
Size and mounting
- Diameter
- 50.8mm
Other published values
- Cms
- 1mm/N
- Rms
- 0.15kg/s
† Calculated by bits from the published values
What this validation status means
Everything else Wavecor lists
LF · Primary · 2″
- BL
- 2T·m
- Fs
- 130Hz
- Re
- 3.1Ω
- Sd
- 16cm²
- Cms
- 1mm/N
- Mms
- 2g
- Qes
- 0.96
- Qms
- 8.2
- Qts
- 0.86
- Rms
- 0.15kg/s
- SPL
- 81.1dB
- Vas
- 0.35L
- Xmax
- 1mm
- Impedance
- 4Ω
- Calculated sensitivity †
- 81.1dB
- Voice coil
- 22mm
- Diameter
- 50.8mm
