LF Driver
Tang Band

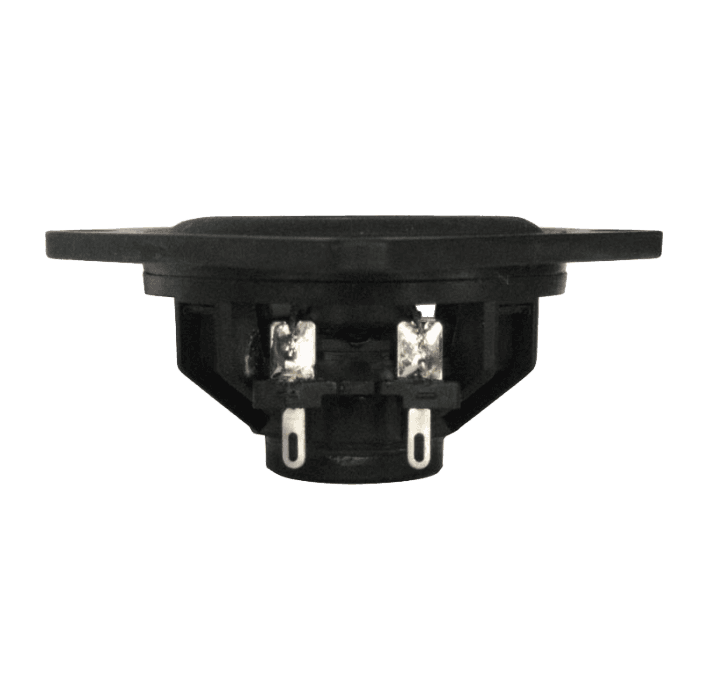

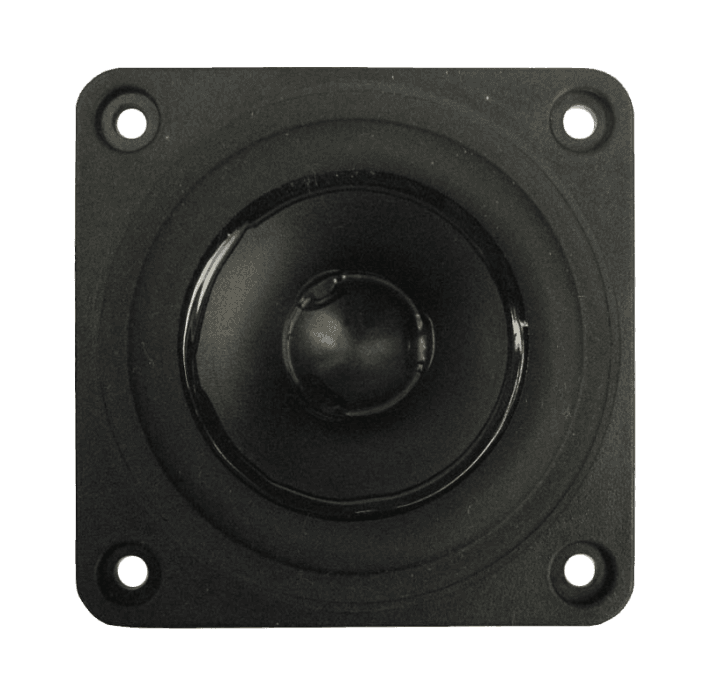

Tang Band W2-1803S
Tang Band W2-1803S is a 2" 6 ohm LF driver rated at 3W RMS. The validated T/S data includes Fs 155Hz, Qts 0.75, Vas 0.3L, Xmax 0.7mm, sensitivity 81.6dB, plus 1cm³ Vd and 152 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
6Ω
RMS Power
3W
Sensitivity
81.6dB
EBP
152
Vented alignment
Vd
1cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,716 selected pixels of 2,713 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,010 selected pixels of 2,010
T/S Parameters
Valid
Fs155Hz
Qts0.75
Qes1.02
Qms2.8
Vas0.3L
Re5.6Ω
Le0.02mH
BL2.3Tm
Sd13cm²
Mms1g
Xmax0.7mm
SPL82dB
Power3W
Impedance6Ω
