Visaton FRS 7 W 8Ω

LF Driver

WatchWatch price SimSimulate

Media

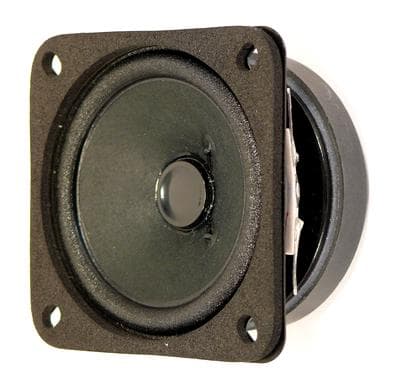

Visaton FRS 7 W 2.5 inch 8 ohm loudspeaker driver view 1

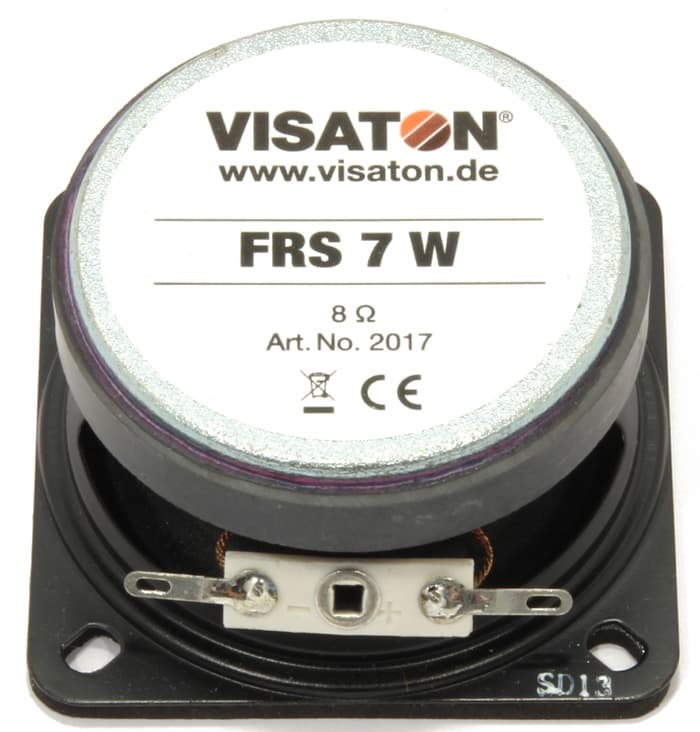

Visaton FRS 7 W 2.5 inch 8 ohm loudspeaker driver view 2

Visaton FRS 7 W 2.5 inch 8 ohm loudspeaker driver view 3

Visaton FRS 7 W 2.5 inch 8 ohm loudspeaker driver view 4

Auto-advancing

Overview

LF DriverFRS series

Visaton FRS 7 W

Visaton FRS 7 W is a 2.5" 8 ohm LF driver rated at 8W RMS. The validated T/S data includes Fs 160Hz, Qts 0.63, Vas 0.8L, Xmax 2.5mm, sensitivity 87.5dB, plus 6cm³ Vd and 176 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size

2.5"

Impedance

8Ω

RMS Power

8W

Sensitivity

87.5dB

86.0dBmanufacturer; using T/S-derived value (1.5dB delta).

EBP

176

Vented alignment

V_d

6cm³

T/S Parameters

Valid

Canonical

Fs160Hz

Qts0.63

Qes0.91

Qms2.1

Vas0.8L

Re6.6Ω

BL2.5Tm

Sd22cm²

Mms1g

Xmax2.5mm

SPL88dB

Power8W

Impedance8Ω

F Low120Hz

F High20000Hz

Voice Coil14mm

Flux Density1.10T

What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Not enough T/S data

Missing Le

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Not enough T/S data

Missing Le

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Not enough T/S data

Missing Le

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Not enough T/S data

Missing Le

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight0.2kg

Diameter65.0mm

Cutout Diameter61.0mm
