3.5-inch LF driver · FR series · 15 mm voice coil · 10 W
Visaton FR 8 8Ω
130–20000 Hz
£10.12
RumoH · In stock · Ships from Netherlands · All 2 offers
- Fs
- 150Hz
- Xmax
- 1mm
- SPL
- 84dB
- Pe
- 10W
- BL
- 2.5T·m
- Vd
- 3cm³
- Qts
- 1.09
- Vas
- 0.7L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence576 selected pixels of 1,175

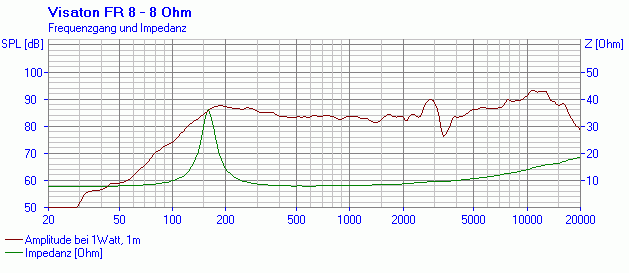

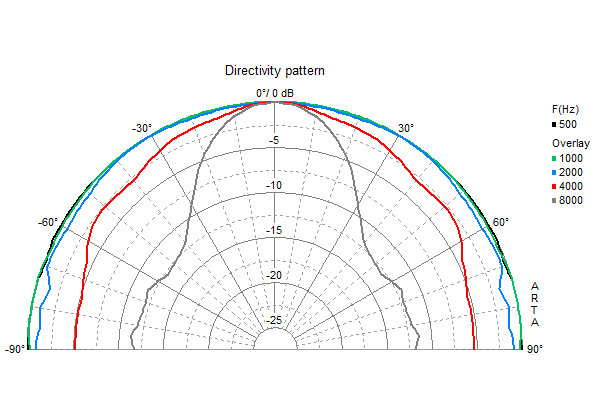

Published graphs
Visaton FR 8 is a 3.5-inch 8 ohm LF driver rated at 10 W RMS. The validated T/S data includes Fs 150 Hz, Qts 1.09, Vas 0.7 L, Xmax 1 mm, sensitivity 84.4 dB, plus 3 cm³ Vd and 109 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £10.12.
The published T/S values agree with each other
Thiele/Small
- Fs
- 150Hz
- Qts
- 1.09
- Qes
- 1.38
- Qms
- 5.3
- Vas
- 0.7L
- Re
- 7.4Ω
- Le
- 0.60mH
Motor and cone
- BL
- 2.5T·m
- Sd
- 30cm²
- Mms
- 2g
- Xmax Derived
- 1mm
- Vd †
- 3cm³
- Voice coil
- 15mm
- Flux density
- 1.40T
Power and response
- Sensitivity †
- 84.4dB
- Manufacturer sensitivity
- 86dB
- Power
- 10W
- Impedance
- 8Ω
- Range
- 130–20000Hz
- EBP †
- 109 · Leans vented
Size and mounting
- Diameter
- 80mm
- Cutout
- 75mm
- Weight
- 0.24kg
Other published values
- Xmech
- 2
- Power Peak
- 15
Sensitivity shows 84.4 dB, calculated from the T/S values. Visaton publishes 86.0 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Visaton lists
LF · Primary · 3.5″
- BL
- 2.5T·m
- Fs
- 150Hz
- Le
- 0.60mH
- Re
- 7.4Ω
- Sd
- 30cm²
- Mms
- 2g
- Qes
- 1.38
- Qms
- 5.3
- Qts
- 1.09
- SPL
- 84.4dB
- Vas
- 0.7L
- Xmax
- 1mm
- Xmech
- 2
- Power
- 10W
- Impedance
- 8Ω
- Power Peak
- 15
- Flux density
- 1.40T
- Sensitivity
- 86dB
- Low limit
- 130Hz
- Calculated sensitivity †
- 84.4dB
- High limit
- 20000Hz
- Manufacturer sensitivity
- 86dB
- Voice coil
- 15mm
- Weight
- 0.24kg
- Diameter
- 80mm
- Cutout
- 75mm
