Overview
LF DriverFR series
Visaton

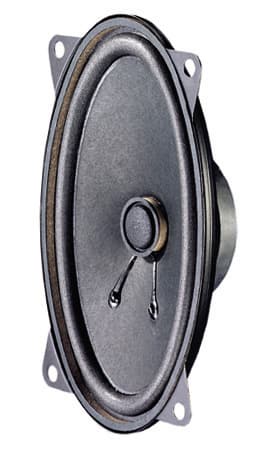

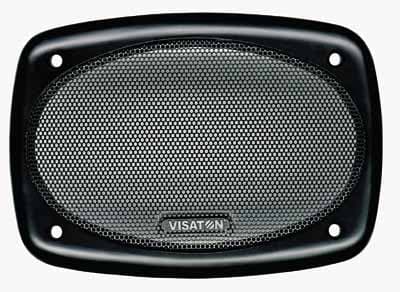

Visaton FR 9.15
Visaton FR 9.15 is a 4" 4 ohm LF driver rated at 15W RMS. The validated T/S data includes Fs 120Hz, Qts 1.82, Vas 2.9L, Xmax 1.5mm, sensitivity 85.4dB, plus 12cm³ Vd and 52 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
4Ω
RMS Power
15W
Sensitivity
85.4dB
EBP
52
Either alignment
Vd
12cm³
T/S Parameters
Valid
Fs120Hz
Qts1.82
Qes2.29
Qms8.9
Vas2.9L
Re3.5Ω
Le0.30mH
BL2.3Tm
Sd79cm²
Mms5g
Xmax1.5mm
SPL85dB
Power15W
Impedance4Ω
F Low75Hz
F High16000Hz
Voice Coil20mm
Flux Density0.90T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.3kg
Diameter150.0mm
Cutout Diameter146.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
FR 9.15
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
9 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Visaton
FR 9.15 - 4 Ohm
4"
Xmax1.5mm0%
Qts1.820%
BL2.3Tm0%
Vas2.9L0%
Qes2.290%
84%
Similarity
Visaton
R 10 SC
4"
Xmax1.5mm0%
Qts1.76-3%
BL2.4Tm+4%
Vas2.3L-21%
Qes2.63+15%
84%
Similarity
Visaton
R 10 SC SPEZIAL
4"
Xmax1.5mm0%
Qts1.76-3%
BL2.4Tm+4%
Vas2.3L-21%
Qes2.63+15%
84%
Similarity
Visaton
R 10 SC SPEZIAL - 8 OHM
4"
Xmax1.5mm0%
Qts1.76-3%
BL2.4Tm+4%
Vas2.3L-21%
Qes2.63+15%
69%
Similarity
£7.54
GRS
10S-8
4"
Xmax1.5mm0%
Qts1.65-9%
BL2.8Tm+22%
Vas1.8L-38%
Qes2.1-8%
64%
Similarity
£10.28
Visaton
R 10 S
4"
Xmax1.5mm0%
Qts1.99+9%
BL2Tm-13%
Vas1.7L-41%
Qes2.92+28%
64%
Similarity
Visaton
R 10 S TE
4"
Xmax1.5mm0%
Qts1.99+9%
BL2Tm-13%
Vas1.7L-41%
Qes2.92+28%
62%
Similarity
£10.28

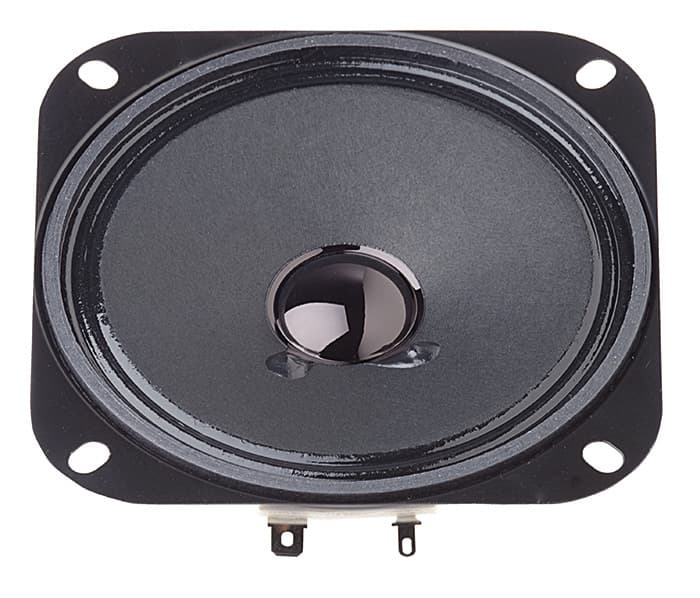

Visaton
