Visaton FR 13 4Ω

LF Driver

WatchWatch price SimSimulate

Media

Visaton FR 13 5 inch 4 ohm loudspeaker driver view 1

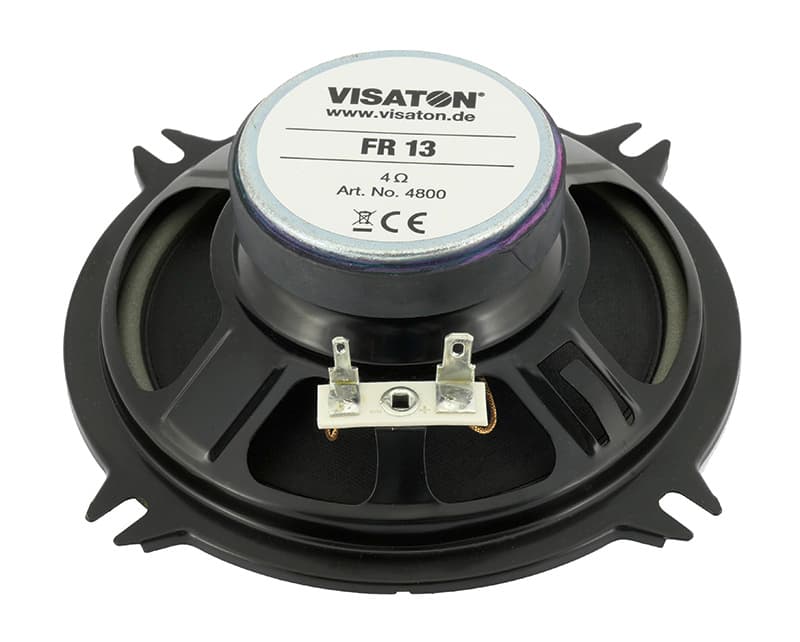

Visaton FR 13 5 inch 4 ohm loudspeaker driver view 2

Visaton FR 13 5 inch 4 ohm loudspeaker driver view 3

Visaton FR 13 5 inch 4 ohm loudspeaker driver view 4

Visaton FR 13 5 inch 4 ohm loudspeaker driver view 5

Visaton FR 13 5 inch 4 ohm loudspeaker driver view 6

Auto-advancing

Overview

LF DriverFR series

Visaton FR 13

Visaton FR 13 is a 5" 4 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 100Hz, Qts 1.25, Vas 6.1L, Xmax 2.5mm, sensitivity 87.7dB, plus 22cm³ Vd and 61 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size

5"

Impedance

4Ω

RMS Power

30W

Sensitivity

87.7dB

EBP

61

Either alignment

V_d

22cm³

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

2 curves

frequency response240 ptsp1medium

Curve provenanceInspect 2 traces

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

frequency response
Frequency response
Trace datasheet-response-trace-poc/v1
240 plotted pointsSource file SHA-256 1bde2c4bc7b1…Medium confidence514 selected pixels of 1,386
Manufacturer datasheet, page 1
impedance
Impedance response
Trace datasheet-response-trace-poc/v1
240 plotted pointsSource file SHA-256 1bde2c4bc7b1…Medium confidence680 selected pixels of 1,123
Manufacturer datasheet, page 1

T/S Parameters

Valid

Canonical

Fs100Hz

Qts1.25

Qes1.64

Qms5.2

Vas6.1L

Re3.4Ω

Le0.20mH

BL2.3Tm

Sd87cm²

Mms5g

Xmax2.5mm

SPL88dB

Power30W

Impedance4Ω

F Low65Hz

F High20000Hz

Voice Coil20mm

Flux Density0.85T

What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight0.3kg

Diameter130.0mm

Cutout Diameter116.0mm
