Overview
LF DriverWS series
Visaton

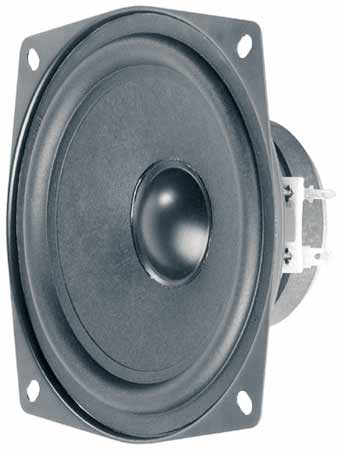

Visaton WS 13 E
Rated 5.0 out of 56 ratings at 1 shopVisaton WS 13 E is a 5" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 83Hz, Qts 1.08, Vas 7.7L, Xmax 7.5mm, sensitivity 86.5dB, plus 65cm³ Vd and 53 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £18.89.
Size
5"
Impedance
8Ω
RMS Power
40W
Sensitivity
86.5dB
EBP
53
Either alignment
Vd
65cm³
T/S Parameters
Valid
Fs83Hz
Qts1.08
Qes1.56
Qms3.5
Vas7.7L
Re7.7Ω
Le0.80mH
BL3.6Tm
Sd87cm²
Mms5g
Xmax7.5mm
SPL87dB
Power40W
Impedance8Ω
F High12000Hz
Voice Coil20mm
Flux Density1.00T
Pricing & availability
Price definitionsOffers & B-stock
1 hidden from price comparisons
Price movement
Other offers
1 vendorRumoH
Updated 28 Sept 2026· 8Ω
Source: inc VAT
£21.04
inc VAT
Best current price
Updated 28 Sept 2026
SoundImports
£18.89
Avg £19.96
inc VAT·5 in stock
Reviews
How ratings workRated 5.0 out of 5from 6 ratings at 1 shop
- Read reviews on SoundImportsSoundImportsRated 5.0 out of 5 · 6 ratings · Checked 28 Sep 2026
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.4kg
Diameter130.0mm
Cutout Diameter113.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
WS 13 E
5"
Best current price
£18.89
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Visaton
WS 13 E - 8 Ohm
5"
Xmax7.5mm0%
Qts1.080%
BL3.6Tm0%
Vas7.7L0%
Qes1.560%
