Overview
LF Driver
PRV Audio
PRV Audio 6FR200
PRV Audio 6FR200 is a 6" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 112Hz, Qts 1.29, Vas 6.9L, Xmax 3.5mm, sensitivity 90.4dB, plus 50cm³ Vd and 80 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
100W
Sensitivity
90.4dB
92.5dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
80
Either alignment
Vd
50cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs112Hz
Qts1.29
Qes1.40
Qms15.7
Vas6.9L
Re6.4Ω
Le0.26mH
BL5.2Tm
Sd143cm²
Mms8g
Xmax3.5mm
SPL90dB
Power100W
Impedance8Ω
F Low80Hz
F High20000Hz
Xover85Hz
Voice Coil38mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.3kg
Diameter166.5mm
Overall Depth78.5mm
Cutout Diameter145.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
PRV Audio
6FR200
6"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
66%
Similarity

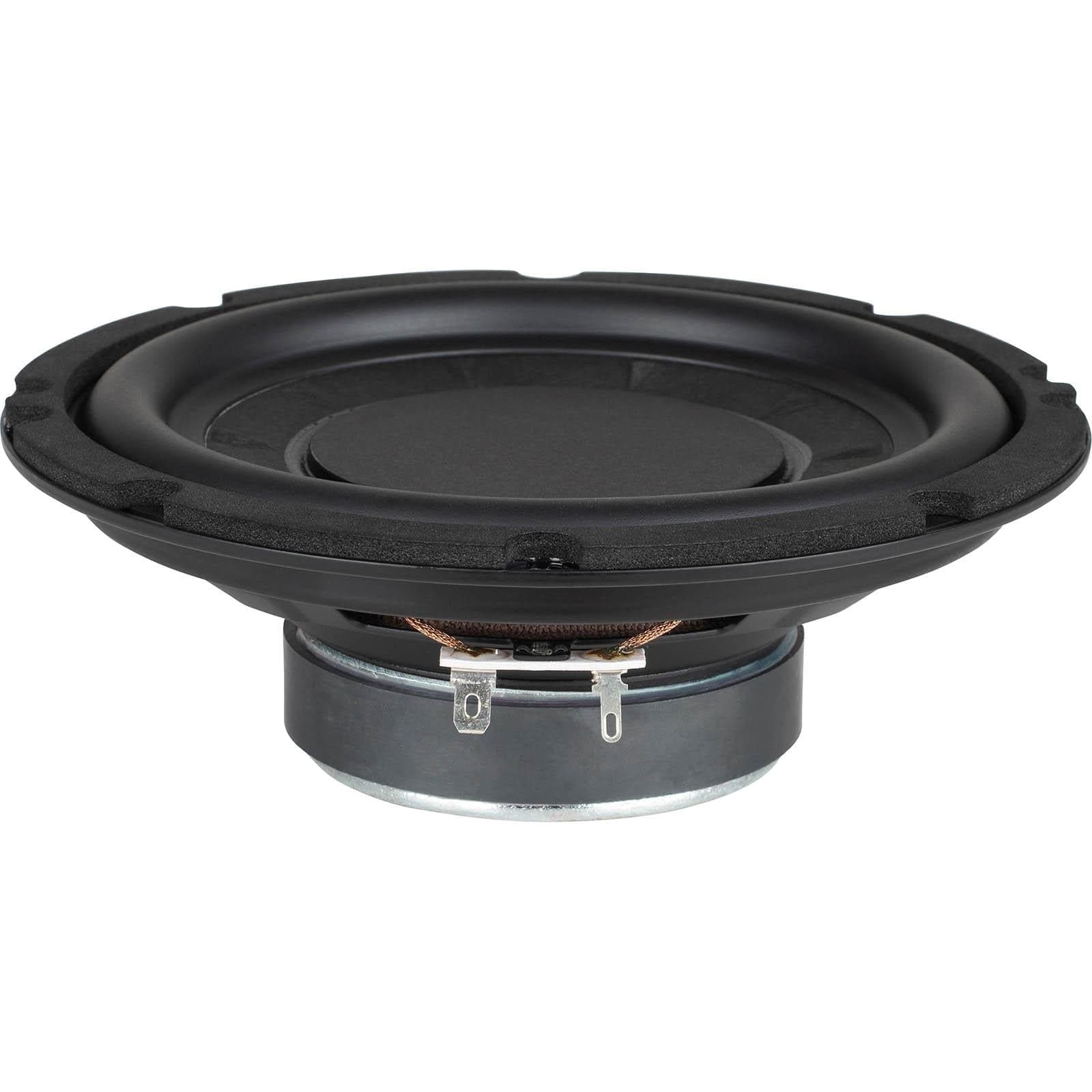

GRS
6LPSW-4
6.5"
Xmax4mm+14%
Qts1.07-17%
BL5.4Tm+4%
Vas7.6L+10%
Qes1.35-4%
52%
Similarity
PRV Audio
6MR200A
6"
Xmax2.6mm-25%
Qts1.17-9%
BL6.3Tm+21%
Vas3.2L-54%
Qes1.28-9%
38%
Similarity
£20.15
PRV Audio
6MR200A-4
6.5"
Xmax2.6mm-25%
Qts0.97-25%
BL4.9Tm-5%
Vas3.9L-44%
Qes1.08-23%
