Overview
LF DriverR series
Visaton
Visaton R 10 SC
Visaton R 10 SC is a 4" 4 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 165Hz, Qts 1.32, Vas 2.6L, Xmax 1.5mm, sensitivity 90.5dB, plus 8cm³ Vd and 99 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
4Ω
RMS Power
20W
Sensitivity
90.5dB
EBP
99
Either alignment
Vd
8cm³

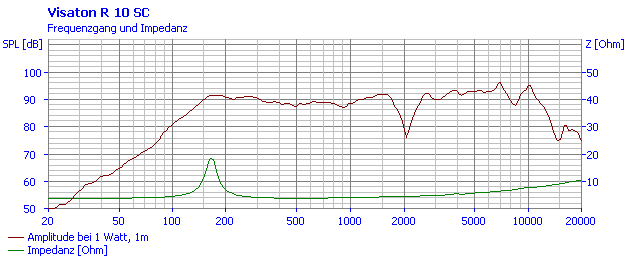

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
frequency response
Frequency response
240 plotted pointsSource file SHA-256 11008be2fcc6…Medium confidence452 selected pixels of 705 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
240 plotted pointsSource file SHA-256 11008be2fcc6…Medium confidence420 selected pixels of 420
T/S Parameters
Valid
Fs165Hz
Qts1.32
Qes1.67
Qms6.4
Vas2.6L
Re3.6Ω
Le0.20mH
BL2.0Tm
Sd56cm²
Mms2g
Xmax1.5mm
SPL91dB
Power20W
Impedance4Ω
F Low100Hz
F High13000Hz
Voice Coil15mm
Flux Density0.95T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.2kg
Diameter100.0mm
Cutout Diameter93.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
R 10 SC
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Visaton
R 10 SC - 4 OHM
4"
Xmax1.5mm0%
Qts1.320%
BL2Tm0%
Vas2.6L0%
Qes1.670%
77%
Similarity
Visaton
R 10 S - 4 Ohm
4"
Xmax1.5mm0%
Qts1.45+10%
BL1.9Tm-5%
Vas1.9L-27%
Qes1.96+17%
28%
Similarity
Dayton Audio
RS75-8
3"
Xmax1.3mm-13%
Qts1.07-19%
BL2.5Tm+27%
Vas4L+54%
Qes1.35-19%
