Overview
LF DriverFR series
Visaton
Visaton FR 13 WP
Visaton FR 13 WP is a 5" 4 ohm LF driver rated at 25W RMS. The validated T/S data includes Fs 100Hz, Qts 1.17, Vas 4.4L, Xmax 2.5mm, sensitivity 85.1dB, plus 20cm³ Vd and 46 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
4Ω
RMS Power
25W
Sensitivity
85.1dB
EBP
46
Sealed alignment
Vd
20cm³

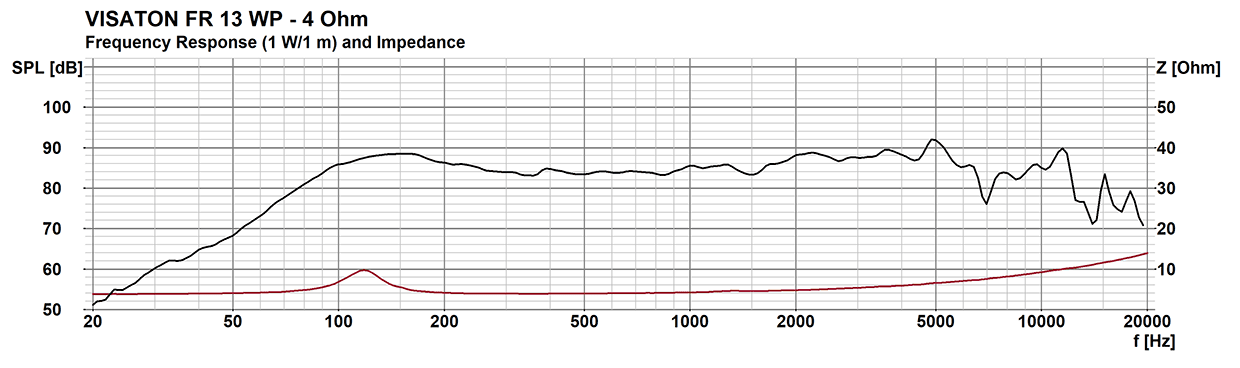

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
frequency response
Frequency response
240 plotted pointsSource file SHA-256 ac10d2270f0e…Medium confidence732 selected pixels of 1,964 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
240 plotted pointsSource file SHA-256 ac10d2270f0e…Medium confidence562 selected pixels of 562
T/S Parameters
Valid
Fs100Hz
Qts1.17
Qes2.19
Qms2.5
Vas4.4L
Re3.8Ω
Le0.40mH
BL2.3Tm
Sd78cm²
Mms5g
Xmax2.5mm
SPL85dB
Power25W
Impedance4Ω
F Low70Hz
F High16000Hz
Voice Coil20mm
Flux Density0.85T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.3kg
Diameter130.0mm
Cutout Diameter112.0mm
