Visaton FRS 10 WP 4Ω
90–19000 Hz
No price for delivery to the UK
- Fs
- 190Hz
- Xmax
- 1mm
- SPL
- 93dB
- Pe
- 25W
- BL
- 3.8T·m
- Vd
- 6cm³
- Qts
- 0.91
- Vas
- 2L

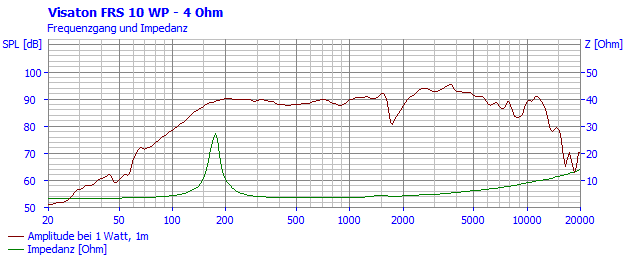

Published graphs
Visaton FRS 10 WP is a 4-inch 4 ohm LF driver rated at 25 W RMS. The validated T/S data includes Fs 190 Hz, Qts 0.91, Vas 2 L, Xmax 1 mm, sensitivity 93.3 dB, plus 6 cm³ Vd and 186 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £57.67.
The published T/S values agree with each other
Thiele/Small
- Fs
- 190Hz
- Qts
- 0.91
- Qes
- 1.02
- Qms
- 8.3
- Vas
- 2L
- Re
- 3.4Ω
- Le
- 0.20mH
Motor and cone
- BL
- 3.8T·m
- Sd
- 57cm²
- Mms
- 2g
- Xmax Derived
- 1mm
- Vd †
- 6cm³
- Voice coil
- 20mm
- Flux density
- 1T
Power and response
- Sensitivity †
- 93.3dB
- Manufacturer sensitivity
- 90dB
- Power
- 25W
- Impedance
- 4Ω
- Range
- 90–19000Hz
- EBP †
- 186 · Leans vented
Size and mounting
- Diameter
- 100mm
- Cutout
- 92mm
- Weight
- 0.36kg
Other published values
- Xmech
- 3
- Power Peak
- 50
Sensitivity shows 93.3 dB, calculated from the T/S values. Visaton publishes 90.0 dB, 3.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Visaton lists
LF · Primary · 4″
- BL
- 3.8T·m
- Fs
- 190Hz
- Le
- 0.20mH
- Re
- 3.4Ω
- Sd
- 57cm²
- Mms
- 2g
- Qes
- 1.02
- Qms
- 8.3
- Qts
- 0.91
- SPL
- 93.3dB
- Vas
- 2L
- Xmax
- 1mm
- Xmech
- 3
- Power
- 25W
- Impedance
- 4Ω
- Power Peak
- 50
- Flux density
- 1T
- Sensitivity
- 90dB
- Low limit
- 90Hz
- Calculated sensitivity †
- 93.3dB
- High limit
- 19000Hz
- Manufacturer sensitivity
- 90dB
- Voice coil
- 20mm
- Weight
- 0.36kg
- Diameter
- 100mm
- Cutout
- 92mm
