LF DriverDiscovery series
Scanspeak

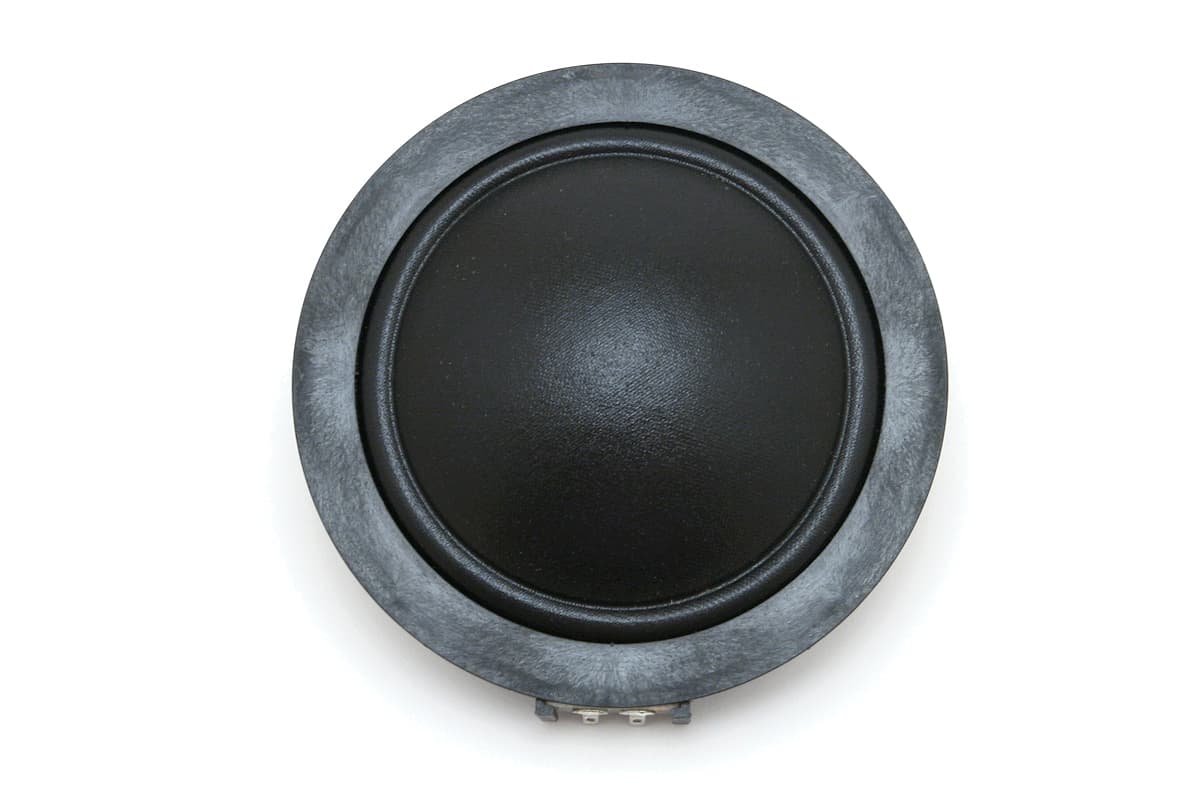

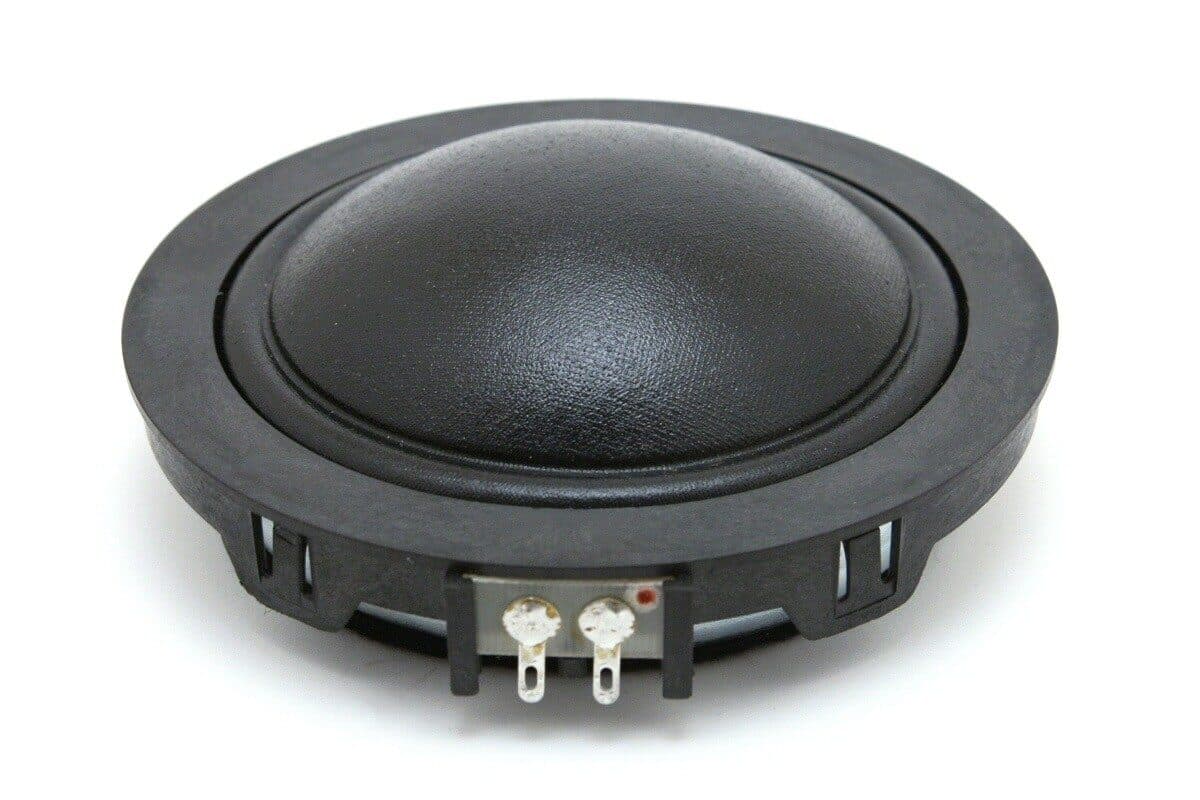

Scanspeak D7608/920000
Scanspeak D7608/920000 is a 3" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 300Hz, Qts 1.73, Vas 0.4L, Xmax 0.4mm, sensitivity 88.4dB, plus 2cm³ Vd and 135 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £85.27.
Size
3"
Impedance
8Ω
RMS Power
80W
Sensitivity
88.4dB
92.0dBmanufacturer; using T/S-derived value (3.6dB delta).
EBP
135
Vented alignment
Vd
2cm³
T/S Parameters
Valid
Fs300Hz
Qts1.73
Qes2.22
Qms7.8
Vas0.4L
Re5.7Ω
Le0.13mH
BL4.7Tm
Sd55cm²
Mms3g
Xmax0.4mm
SPL88dB
Power80W
Impedance8Ω
Min Impedance6.2Ω
Voice Coil76mm
Pricing & availability
Price definitionsPrice movement
Best current price
£85.27
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter76.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
D7608/920000
3"
Best current price
£85.27
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
7% more£91.25

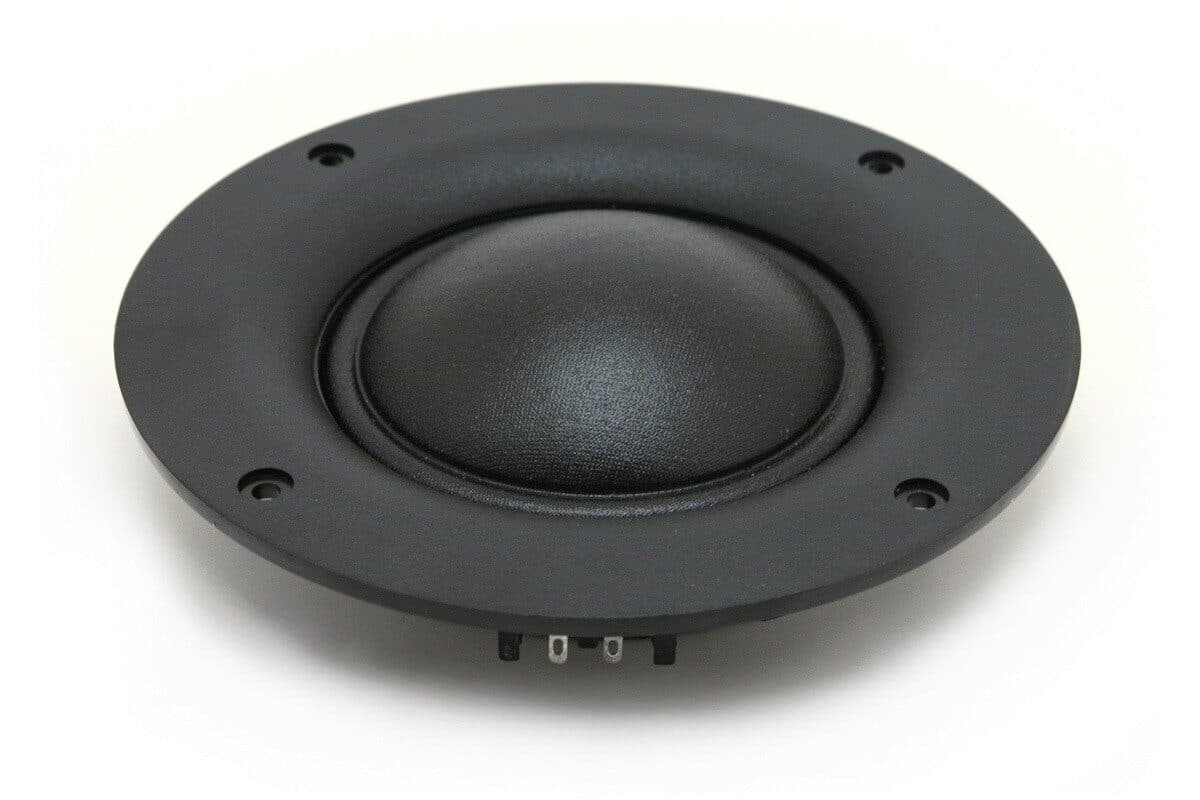

Scanspeak
D7608/920010
3"
Higher price
Xmax0.4mm0%
Qts1.730%
BL4.7Tm0%
Vas0.4L0%
Qes2.220%
