Overview
LF Driver
Tang Band

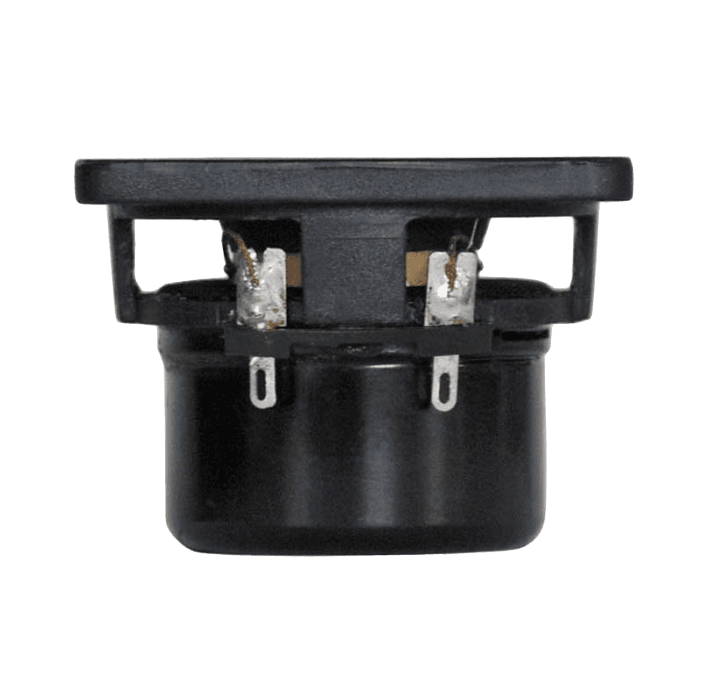

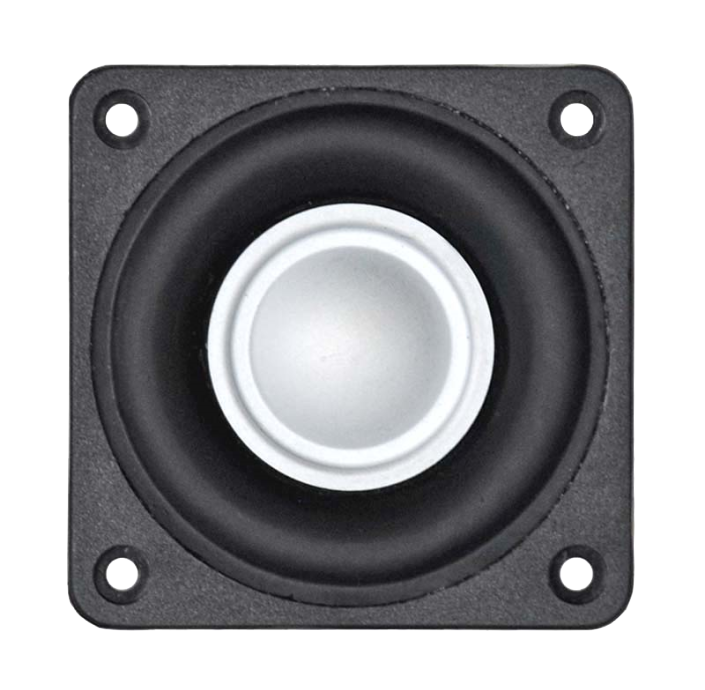

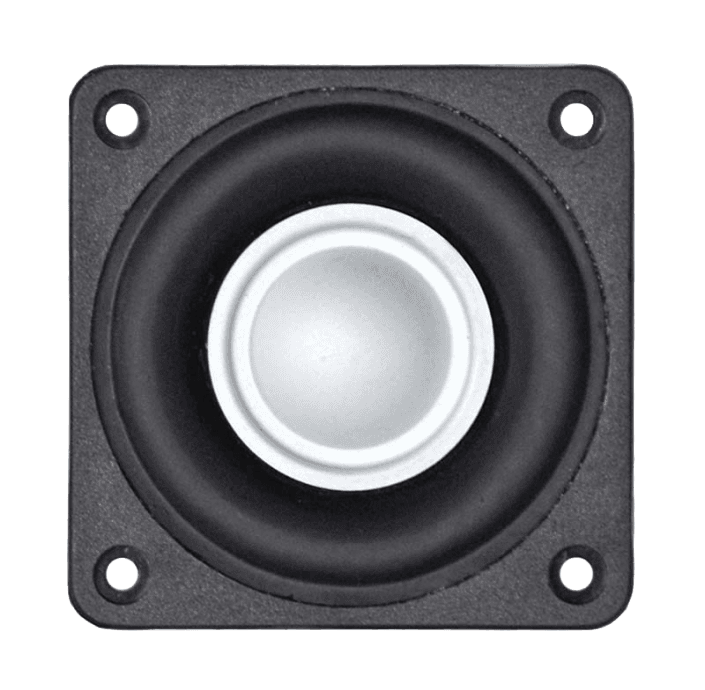

Tang Band W2-1767S
Tang Band W2-1767S is a 2" 8 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 110Hz, Qts 0.36, Vas 0.2L, Xmax 3mm, sensitivity 80.6dB, plus 4cm³ Vd and 268 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
8Ω
RMS Power
20W
Sensitivity
80.6dB
EBP
268
Vented alignment
Vd
4cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,348 selected pixels of 1,865 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,805 selected pixels of 2,805
T/S Parameters
Valid
Fs110Hz
Qts0.36
Qes0.41
Qms2.9
Vas0.2L
Re6.6Ω
Le0.12mH
BL5.0Tm
Sd13cm²
Mms2g
Xmax3.0mm
SPL81dB
Power20W
Impedance8Ω
