Overview
LF DriverPA series
CIARE

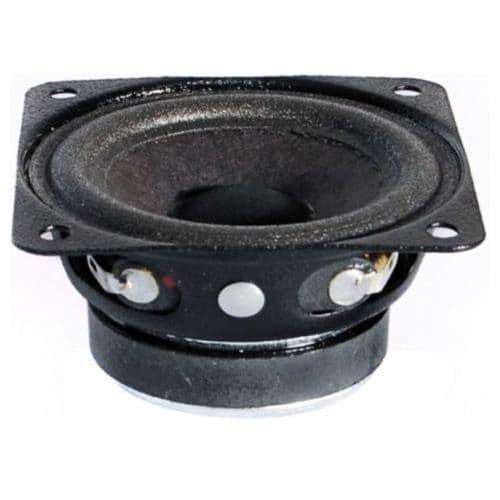

CIARE PA065
CIARE PA065 is a 2" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 154Hz, Qts 1.30, Vas 0.7L, Xmax 1mm, sensitivity 83.3dB, plus 2cm³ Vd and 81 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
8Ω
RMS Power
30W
Sensitivity
83.3dB
88.0dBmanufacturer; using T/S-derived value (4.7dB delta).
EBP
81
Either alignment
Vd
2cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,627 selected pixels of 1,734
T/S Parameters
Valid
Fs154Hz
Qts1.30
Qes1.90
Qms4.1
Vas0.7L
Re6.8Ω
Le0.15mH
BL1.9Tm
Sd22cm²
Mms1g
Xmax1.0mm
SPL83dB
Power30W
Power Nominal10W
Impedance8Ω
F Low120Hz
F High120Hz
Voice Coil14mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.2kg
Diameter65.0mm
Overall Depth32.4mm
Cutout Diameter65.0mm
Bolt Circle Diameter75.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
PA065
2"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
77%
Similarity

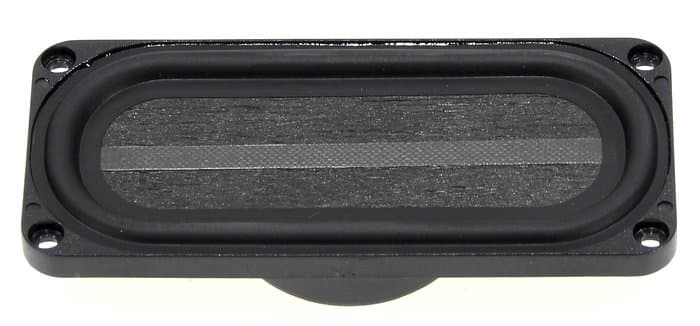

Visaton
SC 4.9 FL - 8 Ohm
2"
Xmax1mm0%
Qts1.31+1%
BL2Tm+6%
Vas0.4L-39%
Qes2.29+21%
Image unavailable
42%
Similarity
Wavecor
FR055OM02
2"
Xmax1mm0%
Qts1.06-18%
BL2.5Tm+34%
Vas0.3L-50%
Qes1.23-35%
