Overview
LF Driver
Tang Band

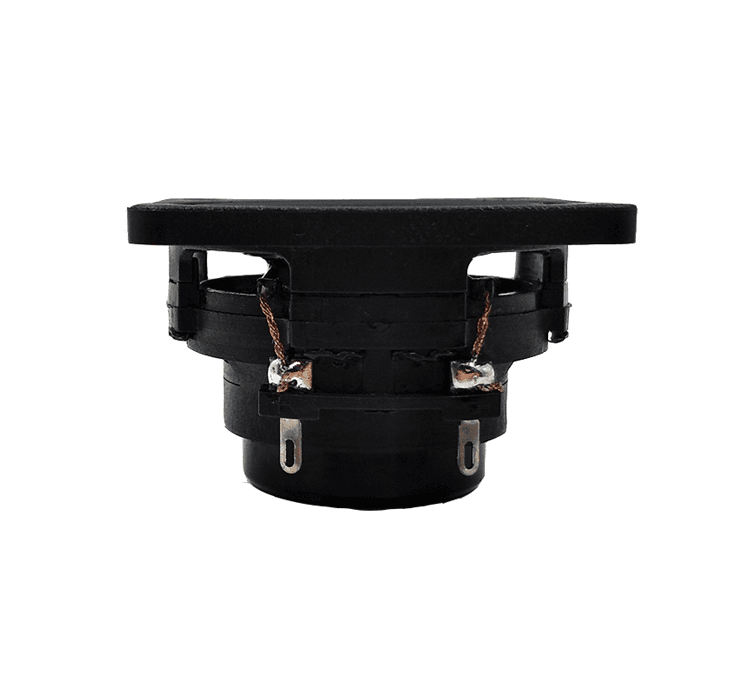

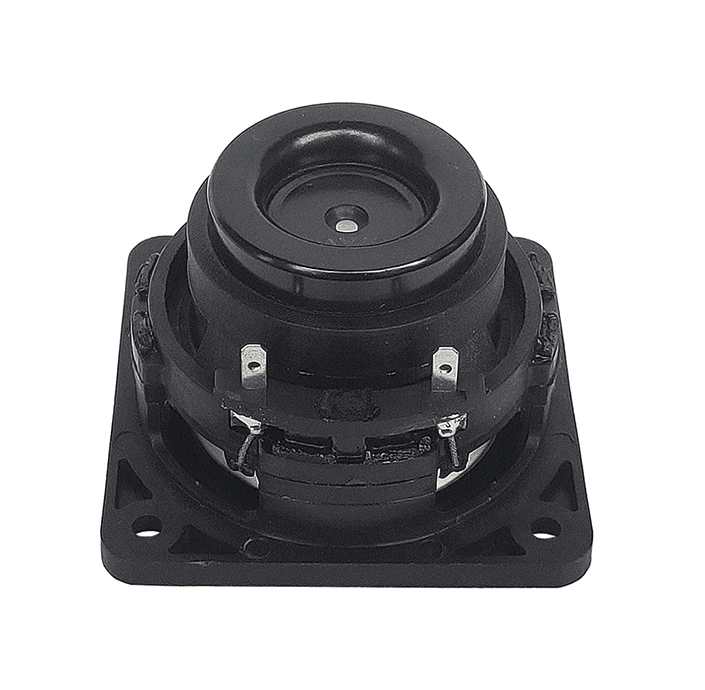

Tang Band W2-2243S
Tang Band W2-2243S is a 2" 4 ohm LF driver rated at 10W RMS. The validated T/S data includes Fs 160Hz, Qts 0.30, Vas 0.2L, Xmax 1mm, sensitivity 86.7dB, plus 2cm³ Vd and 500 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
4Ω
RMS Power
10W
Sensitivity
86.7dB
EBP
500
Vented alignment
Vd
2cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,333 selected pixels of 1,953 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,542 selected pixels of 2,690
T/S Parameters
Valid
Fs160Hz
Qts0.30
Qes0.32
Qms4.5
Vas0.2L
Re3.4Ω
Le0.04mH
BL3.8Tm
Sd15cm²
Mms1g
Xmax1.0mm
SPL87dB
Power10W
Impedance4Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Tang Band
W2-2243S
2"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
7 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
87%
Similarity
Tang Band
W2-835SL
2"
Xmax1mm0%
Qts0.30%
BL4.7Tm+23%
Vas0.2L+4%
Qes0.33+3%
79%
Similarity
Tang Band
W2-852SH
2"
Xmax1mm0%
Qts0.29-3%
BL3Tm-21%
Vas0.3L+9%
Qes0.37+16%
73%
Similarity
Tang Band
W2-780SD
2"
Xmax1mm0%
Qts0.35+17%
BL3.6Tm-4%
Vas0.3L+26%
Qes0.39+22%
68%
Similarity
Tang Band
W2-2360S
2"
Xmax1mm0%
Qts0.32+7%
BL3Tm-21%
Vas0.3L+17%
Qes0.43+34%
65%
Similarity
Tang Band
W2-802SE
2"
Xmax1mm0%
Qts0.36+20%
BL3.5Tm-8%
Vas0.3L+35%
Qes0.4+25%
65%
Similarity
Tang Band
W2-802SE
2"
Xmax1mm0%
Qts0.36+20%
BL3.5Tm-8%
Vas0.3L+35%
Qes0.4+25%
42%
Similarity
Tang Band
W1-1828SA
1"
Xmax1.3mm+25%
Qts0.33+10%
BL2.6Tm-31%
Vas0.2L0%
Qes0.37+16%
