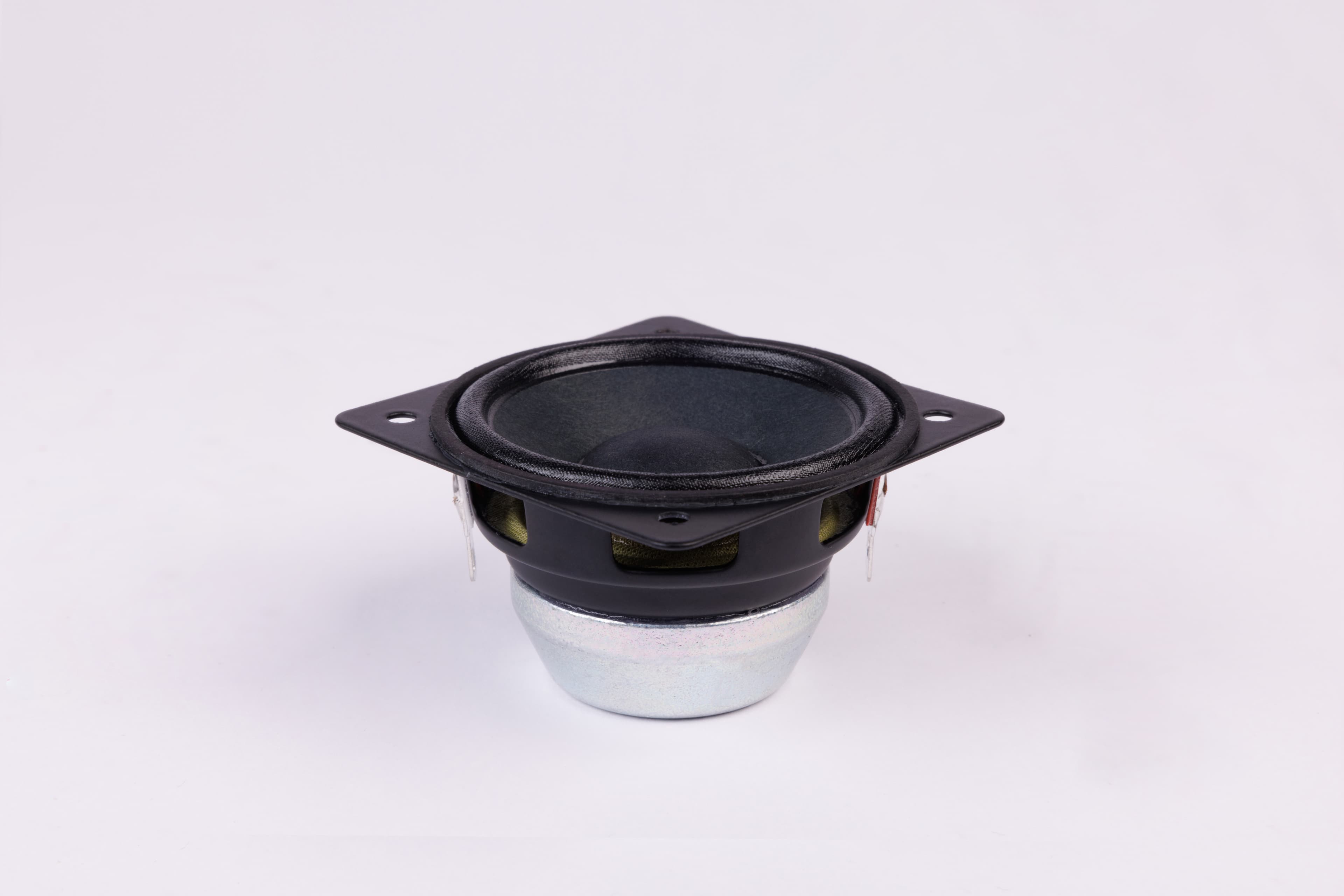

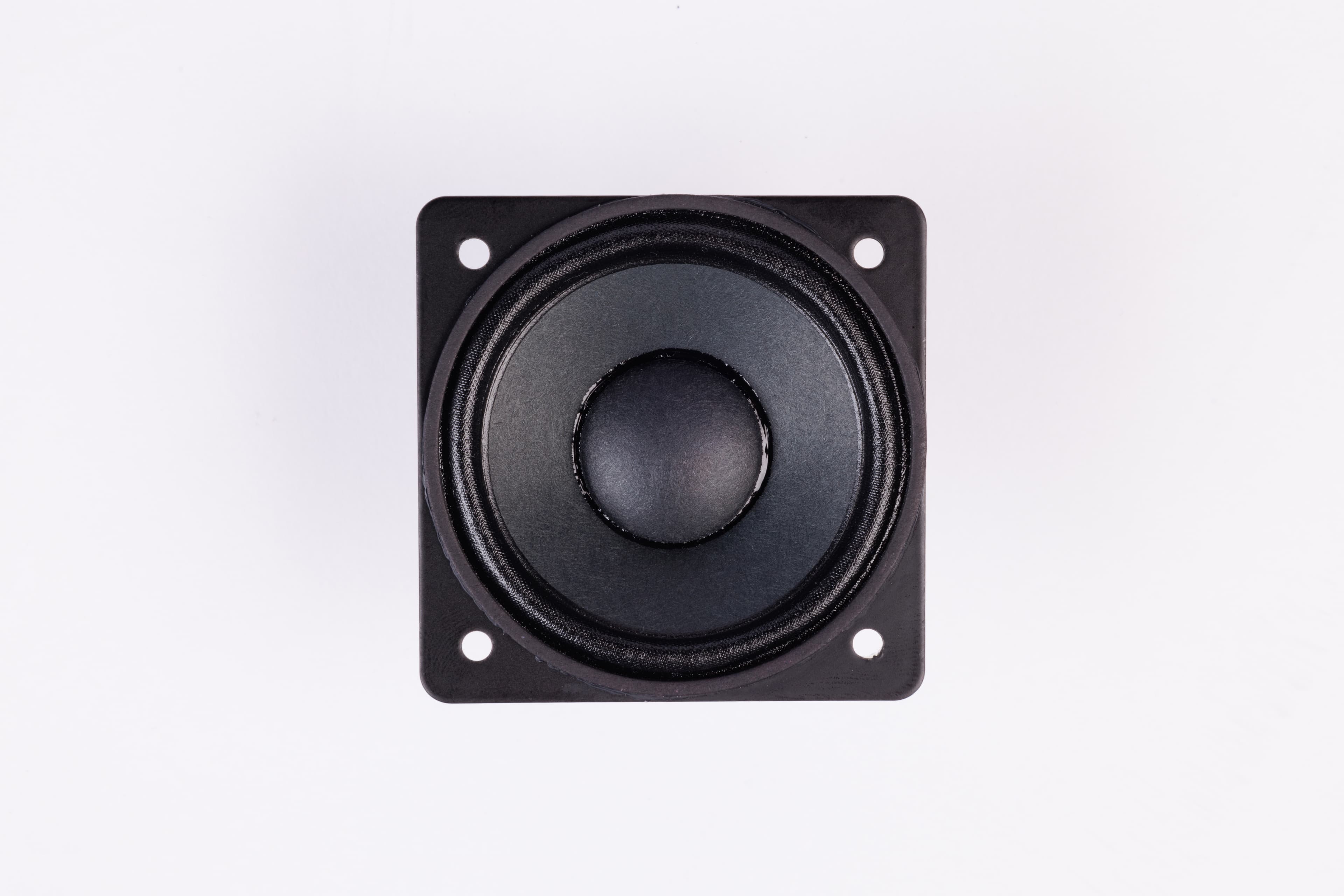

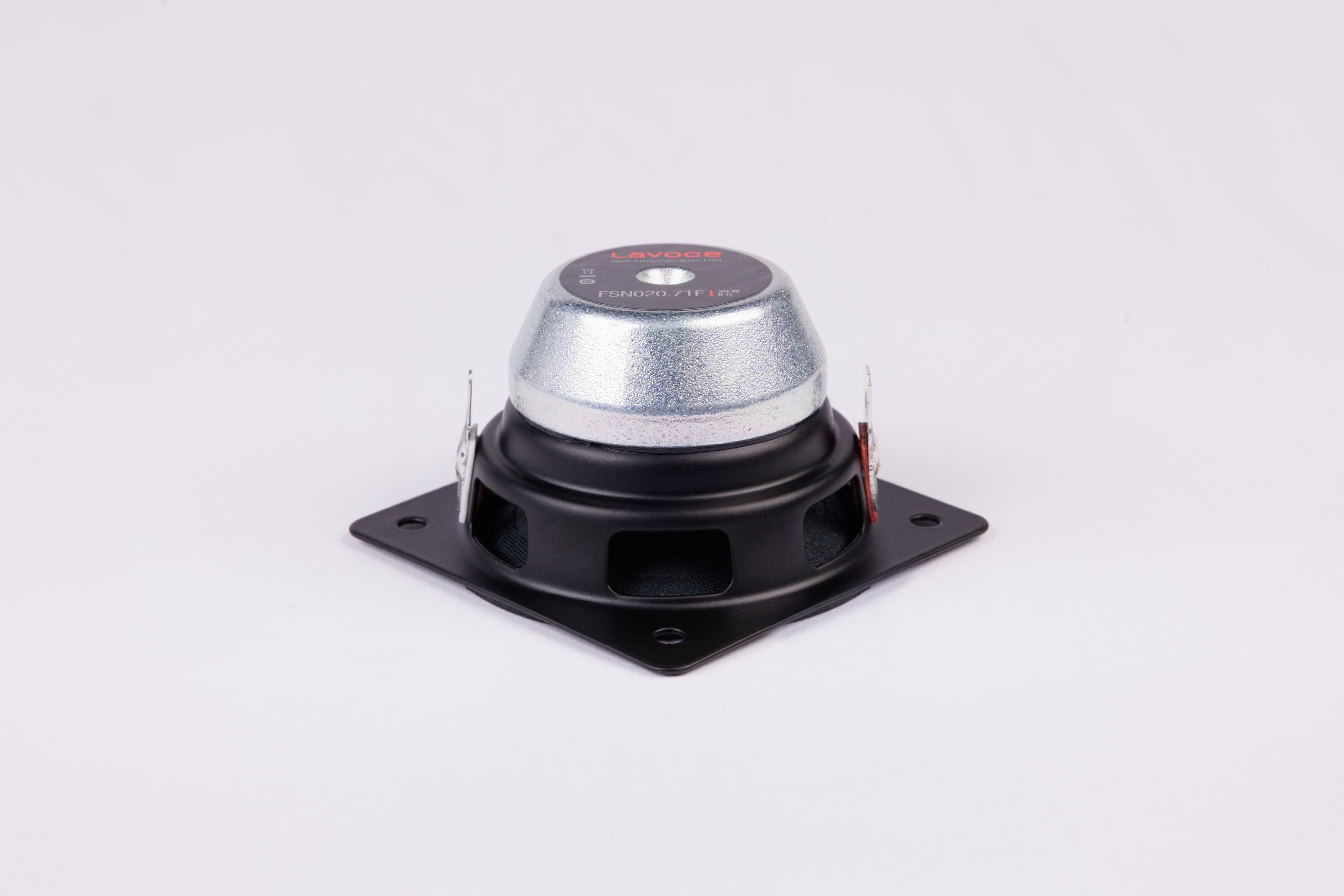

2-inch LF driver · FSN020 series · 20 mm voice coil · 15 W

Lavoce FSN020.71F 8Ω

Name: Lavoce FSN020.71F 8 Ohm
Brand: Lavoce
SKU: FSN020.71F

8 Ω · 200–20000 Hz

No price for delivery to the UK

All 1 offer

Open in 00 Simulator

Fs: 212Hz
Xmax: 2.4mm
SPL: 86dB
Pe: 15W
BL: 3.2T·m
Vd: 4cm³
Qts: 0.82
Vas: 0.22L

See all 24 specs

Specifications

Published by Lavoce

Manufacturer page

Lavoce FSN020.71F is a 2-inch 8 ohm LF driver rated at 15 W RMS. The validated T/S data includes Fs 212 Hz, Qts 0.82, Vas 0.22 L, Xmax 2.4 mm, sensitivity 85.5 dB, plus 4 cm³ Vd and 223 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 212Hz
Qts: 0.82
Qes: 0.95
Qms: 6.4
Vas: 0.22L
Re: 6.4Ω
Le: 0.06mH

Motor and cone

BL: 3.2T·m
Sd: 18cm²
Mms: 1g
Xmax: 2.4mm
Vd †: 4cm³
Voice coil: 20mm

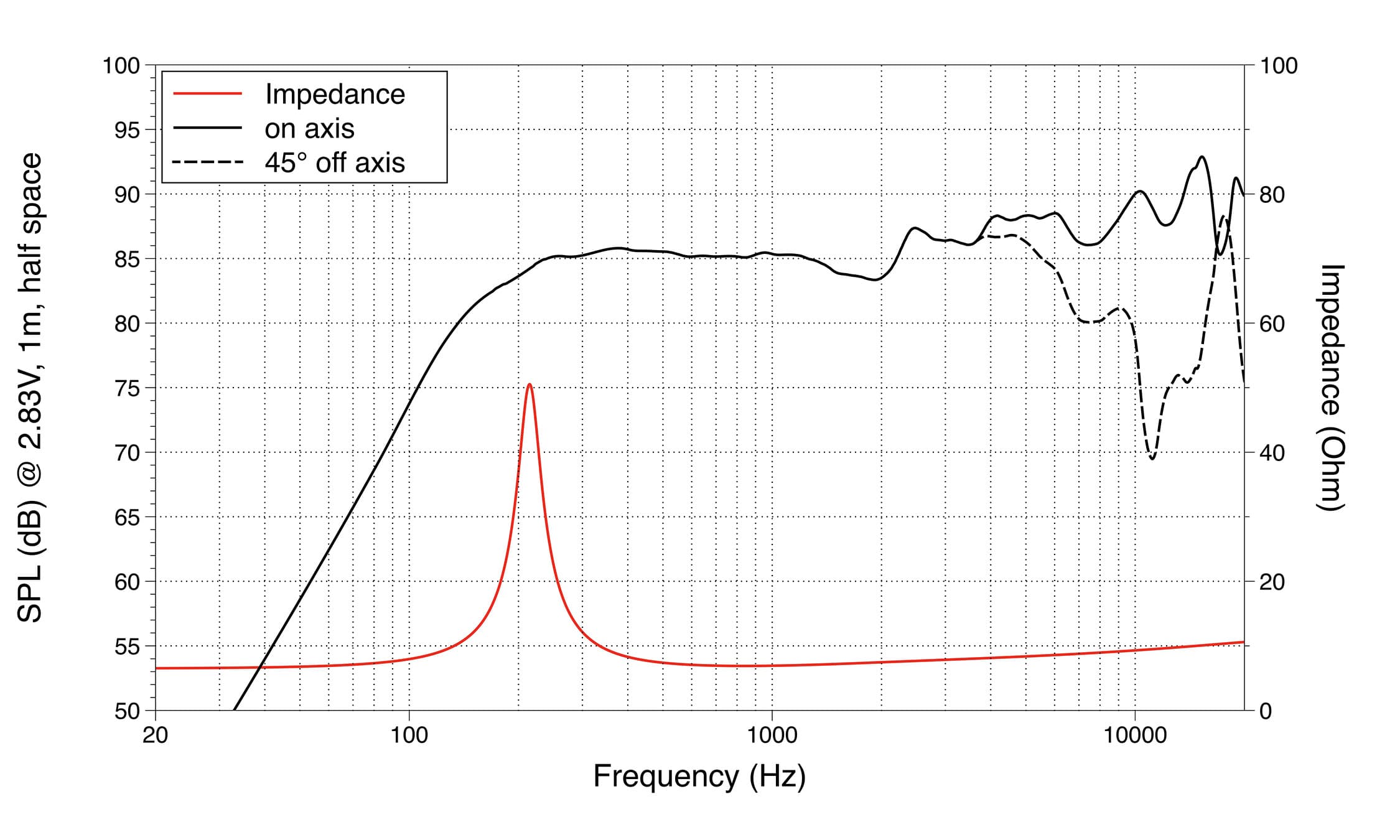

Power and response

Sensitivity †: 85.5dB
Manufacturer sensitivity: 86.5dB
Power: 15W
Impedance: 8Ω
Min. impedance: 6.9Ω
Range: 200–20000Hz
EBP †: 223 · Leans vented

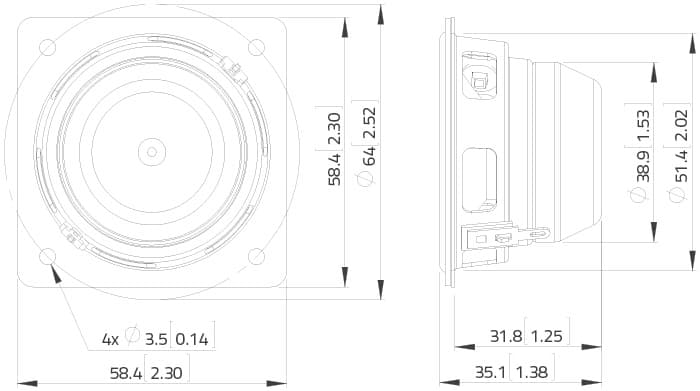

Size and mounting

Weight: 0.15kg

Other published values

Cms: 0.48mm/N
Xmech: 2.6
Power Program: 30

Sensitivity shows 85.5 dB, calculated from the T/S values. Lavoce publishes 86.5 dB, 1.0 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Lavoce lists

LF · Primary · 2″

BL: 3.2T·m
Fs: 212Hz
Le: 0.06mH
Re: 6.4Ω
Sd: 18cm²
Cms: 0.48mm/N
Mms: 1g
Qes: 0.95
Qms: 6.4
Qts: 0.82
SPL: 85.5dB
Vas: 0.22L
Xmax: 2.4mm
Xmech: 2.6
Power: 15W
Impedance: 8Ω
Sensitivity: 86.5dB
Low limit: 200Hz
Power Program: 30
Calculated sensitivity †: 85.5dB
High limit: 20000Hz
Manufacturer sensitivity: 86.5dB
Min. impedance: 6.9Ω
Voice coil: 20mm
Weight: 0.15kg
