HiVi B2S 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverB series
HiVi

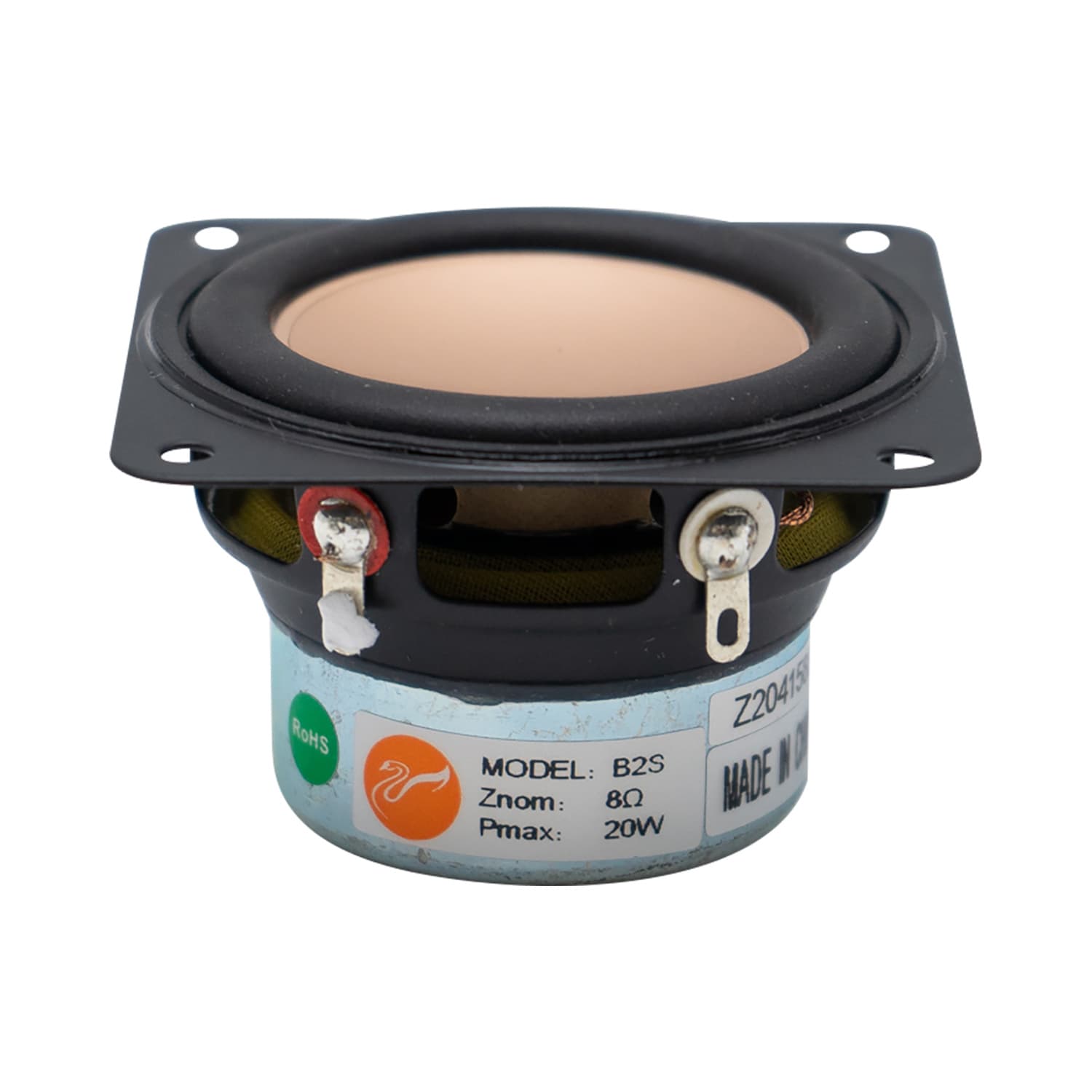

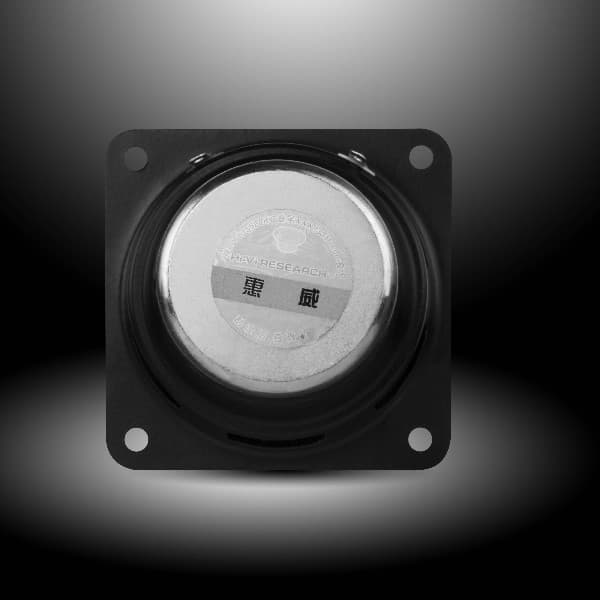

HiVi B2S
HiVi B2S is a 2" 8 ohm LF driver rated at 10W RMS. The validated T/S data includes Fs 152Hz, Qts 1.20, Vas 198L, Xmax 1.5mm, sensitivity 108.6dB, plus 2cm³ Vd and 99 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Partial source evidence
Automated T/S checks passed, but some material low-frequency parameters are not published for this record.
Material fields not published: Mms
- Manufacturer page linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
- EBP can be derived from Fs and Qes
Size
2"
Impedance
8Ω
RMS Power
10W
Sensitivity
108.6dB
78.0dBmanufacturer; using T/S-derived value (30.6dB delta).
EBP
99
Either alignment
Vd
2cm³
T/S Parameters
Valid
Fs152Hz
Qts1.20
Qes1.53
Qms5.7
Vas198.0L
Re6.5Ω
BL2.5Tm
Sd13cm²
Xmax1.5mm
SPL109dB
Power10W
Impedance8Ω
F Low150Hz
F High15000Hz
Voice Coil25mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£11.13
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, Mms
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, Mms
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter50.8mm
