Wavecor FR055WA03 4Ω
4 Ω
No price for delivery to the UK
- Fs
- 142Hz
- Xmax
- 1.4mm
- SPL
- 83dB
- Pe
- –
- BL
- 2.7T·m
- Vd
- 2cm³
- Qts
- 0.57
- Vas
- 0.27L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
FR040WA01 impedance
Impedance response
240 plotted pointsMedium confidence636 selected pixels of 636 - Trace datasheet-response-trace-poc/v1
FR040WA02 impedance
Impedance response
240 plotted pointsMedium confidence631 selected pixels of 631
Wavecor FR055WA03 is a 2-inch 4 ohm LF driver. The validated T/S data includes Fs 142 Hz, Qts 0.57, Vas 0.27 L, Xmax 1.4 mm, sensitivity 83.1 dB, plus 2 cm³ Vd and 233 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 142Hz
- Qts
- 0.57
- Qes
- 0.61
- Qms
- 8.9
- Vas
- 0.27L
- Re
- 3.1Ω
Motor and cone
- BL
- 2.7T·m
- Sd
- 16cm²
- Mms
- 2g
- Xmax
- 1.4mm
- Vd †
- 2cm³
- Voice coil
- 22mm
Power and response
- Sensitivity †
- 83.1dB
- Impedance
- 4Ω
- EBP †
- 233 · Leans vented
Size and mounting
- Diameter
- 50.8mm
Other published values
- Cms
- 0.79mm/N
- Rms
- 0.16kg/s
† Calculated by bits from the published values
What this validation status means
Everything else Wavecor lists
LF · Primary · 2″
- BL
- 2.7T·m
- Fs
- 142Hz
- Re
- 3.1Ω
- Sd
- 16cm²
- Cms
- 0.79mm/N
- Mms
- 2g
- Qes
- 0.61
- Qms
- 8.9
- Qts
- 0.57
- Rms
- 0.16kg/s
- SPL
- 83.1dB
- Vas
- 0.27L
- Xmax
- 1.4mm
- Impedance
- 4Ω
- Calculated sensitivity †
- 83.1dB
- Voice coil
- 22mm
- Diameter
- 50.8mm
02
Compare
Same-size drivers, compared with the FR055WA03. Clear differences are green when better and red when worse.
This driverFR055WA03
Best price
–
Fs
142 Hz
Qts
0.57
Vas
0.27 L
BL
2.7 T·m
Xmax
1.4 mm
Sensitivity
83.1 dB
Power
–
Dayton AudioCE41N-4
£7.08Fs170 Hz +20%, worse
Qts0.53 −7%
Vas0.078 L −71%, better
BL2.3 T·m −15%, worse
Xmax0.7 mm −48%, worse
Sensitivity80.2 dB −2.9, worse
FaitalPRO3FE25
£12.00Fs110 Hz −23%, better
Qts0.52 −9%
Vas1.3 L +381%, worse
BL3 T·m +11%, better
Xmax1.7 mm +28%, better
Sensitivity86.6 dB +3.5, better
Dayton AudioPC83-4
£13.10Fs80 Hz −44%, better
Qts0.54 −5%
Vas2.0 L +634%, worse
BL2.9 T·m +7%
Xmax2 mm +48%, better
Sensitivity84 dB +0.9
Dayton AudioHARB252-8
£16.66Fs172 Hz +21%, worse
Qts1.74 +205%, worse
Vas0.19 L −30%, better
BL3.0 T·m +13%, better
Xmax1.3 mm −4%
Sensitivity77.1 dB −6, worse
HiViB2S
£16.66Fs152 Hz +7%
Qts1.20 +111%, worse
Vas0.2 L −26%, better
BL2.5 T·m −7%
Xmax1.5 mm +11%, better
Sensitivity78.6 dB −4.5, worse
Sica2.5 H 0.8 SL
£17.58Fs185 Hz +30%, worse
Qts0.92 +61%, worse
Vas0.2 L −26%, better
BL2.8 T·m +4%
Xmax1.3 mm −4%
Sensitivity82.6 dB −0.5
MonacorSPX-32M
£18.42Fs110 Hz −23%, better
Qts0.56 –
Vas1.6 L +493%, worse
BL3.7 T·m +37%, better
Xmax1.1 mm −19%, worse
Sensitivity87.5 dB +4.4, better
MonacorSPX-31M
£19.26Fs110 Hz −23%, better
Qts0.58 –
Vas1.3 L +381%, worse
BL3.6 T·m +35%, better
Xmax1.1 mm −19%, worse
Sensitivity86 dB +2.9, better

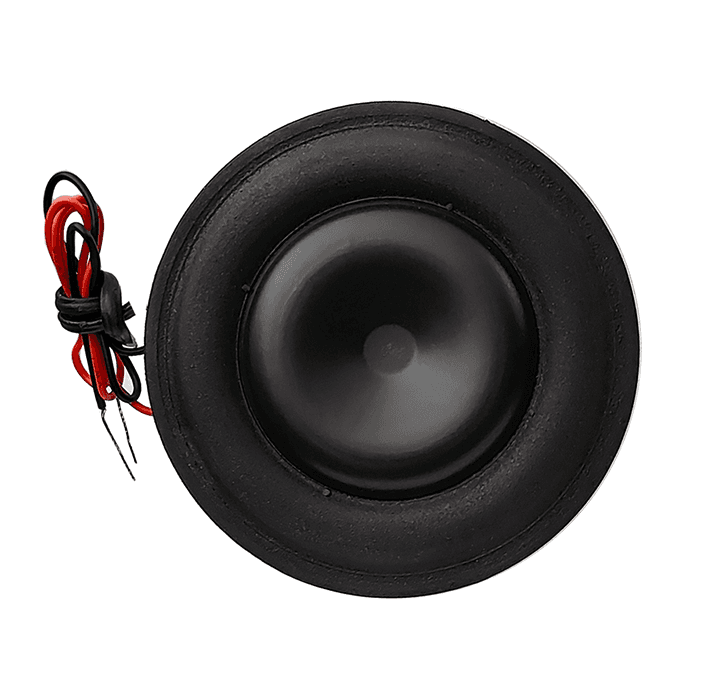

Tang BandW1-2396S
£20.01Fs180 Hz +27%, worse
Qts0.59 +4%
Vas0.12 L −56%, better
BL2.1 T·m −21%, worse
Xmax1.1 mm −19%, worse
Sensitivity81.4 dB −1.7
MonacorSPX-21M
£22.52Fs170 Hz +20%, worse
Qts0.47 −18%, better
Vas0.1 L −63%, better
BL3.3 T·m +23%, better
Xmax1.2 mm −11%, worse
Sensitivity81.7 dB −1.4
Dayton AudioND65-4
£25.04Fs90 Hz −37%, better
Qts0.61 +7%
Vas0.53 L +96%, worse
BL2.7 T·m –
Xmax3.5 mm +159%, better
Sensitivity79.5 dB −3.6, worse
Tang BandW3-881SJ
£30.14Fs100 Hz −30%, better
Qts0.58 –
Vas2.3 L +756%, worse
BL3.3 T·m +23%, better
Xmax0.2 mm −85%, worse
Sensitivity87.7 dB +4.6, better
Tang BandW3-315E
£32.19Fs100 Hz −30%, better
Qts0.52 −9%
Vas1.7 L +522%, worse
BL3.9 T·m +44%, better
Xmax1.3 mm −7%
Sensitivity86.7 dB +3.6, better
Dayton AudioRS75T-8
£35.08Fs189 Hz +33%, worse
Qts0.95 +67%, worse
Vas0.22 L −19%, better
BL2.6 T·m −4%
Xmax1.3 mm −4%
Sensitivity83.2 dB –
MarkaudioPLUVIA 7 PHD
£46.05Fs78 Hz −45%, better
Qts0.54 −6%
Vas4.5 L +1563%, worse
BL2.9 T·m +8%
Xmax4 mm +196%, better
Sensitivity87.1 dB +4, better
Scanspeak5F/8422T01
£53.50Fs93 Hz −35%, better
Qts0.61 +7%
Vas0.5 L +85%, worse
BL3.1 T·m +15%, better
Xmax2 mm +48%, better
Sensitivity79.7 dB −3.4, worse
WavecorFR055WA01
£60.79Fs142 Hz –
Qts0.91 +60%, worse
Vas0.27 L –
BL2.1 T·m −23%, worse
Xmax1.4 mm –
Sensitivity80.9 dB −2.2, worse
WavecorFR070WA01
£81.22Fs121 Hz −15%, better
Qts0.56 –
Vas0.54 L +100%, worse
BL3 T·m +11%, better
Xmax2 mm +48%, better
Sensitivity84.2 dB +1.1
WavecorFR055WA04
No current priceFs128 Hz −10%
Qts0.51 −11%, better
Vas0.33 L +22%, worse
BL3.3 T·m +22%, better
Xmax1.4 mm –
Sensitivity83 dB –
Tang BandW1-1815SA
No current priceFs170 Hz +20%, worse
Qts0.53 −7%
Vas0.038 L −86%, better
BL2.1 T·m −21%, worse
Xmax1.3 mm −7%
Sensitivity77 dB −6.1, worse
WavecorFR055WA02
No current priceFs128 Hz −10%
Qts0.82 +44%, worse
Vas0.33 L +22%, worse
BL2.7 T·m –
Xmax1.4 mm –
Sensitivity80.8 dB −2.3, worse
Tang BandW1-1931S
No current priceFs170 Hz +20%, worse
Qts0.46 −19%, better
Vas0.02 L −93%, better
BL2.6 T·m −4%
Xmax1.2 mm −11%, worse
Sensitivity74.6 dB −8.5, worse
Tang BandW1-1828SA
No current priceFs120 Hz −15%, better
Qts0.33 −42%, better
Vas0.23 L −15%, better
BL2.6 T·m −3%
Xmax1.3 mm −7%
Sensitivity82.3 dB −0.8
FountekFR59EXE
No current priceFs139 Hz –
Qts0.36 −37%, better
Vas0.15 L −44%, better
BL3.0 T·m +11%, better
Xmax1.4 mm +4%
Sensitivity81.3 dB −1.8
MonacorSP-45/4
No current priceFs120 Hz −15%, better
Qts0.55 −4%
Vas1.5 L +456%, worse
BL2.4 T·m −11%, worse
Xmax0.75 mm −44%, worse
Sensitivity87.8 dB +4.7, better
Tang BandW3-583SE
No current priceFs100 Hz −30%, better
Qts0.56 –
Vas2.5 L +811%, worse
BL3.0 T·m +11%, better
Xmax0.25 mm −81%, worse
Sensitivity87.5 dB +4.4, better
Tang BandW2-803SM
No current priceFs160 Hz +13%, worse
Qts0.40 −30%, better
Vas0.25 L −7%
BL2.7 T·m –
Xmax0.85 mm −37%, worse
Sensitivity85.5 dB +2.4, better
Dayton AudioCE4249N-4
No current priceFs184 Hz +30%, worse
Qts0.49 −14%, better
Vas0.039 L −86%, better
BL2.9 T·m +9%
Xmax1.6 mm +19%, better
Sensitivity78.6 dB −4.5, worse
Tang BandW2-2360S
No current priceFs170 Hz +20%, worse
Qts0.32 −44%, better
Vas0.27 L –
BL3 T·m +11%, better
Xmax1 mm −26%, worse
Sensitivity86.9 dB +3.8, better
