Overview
LF Driver
Tang Band

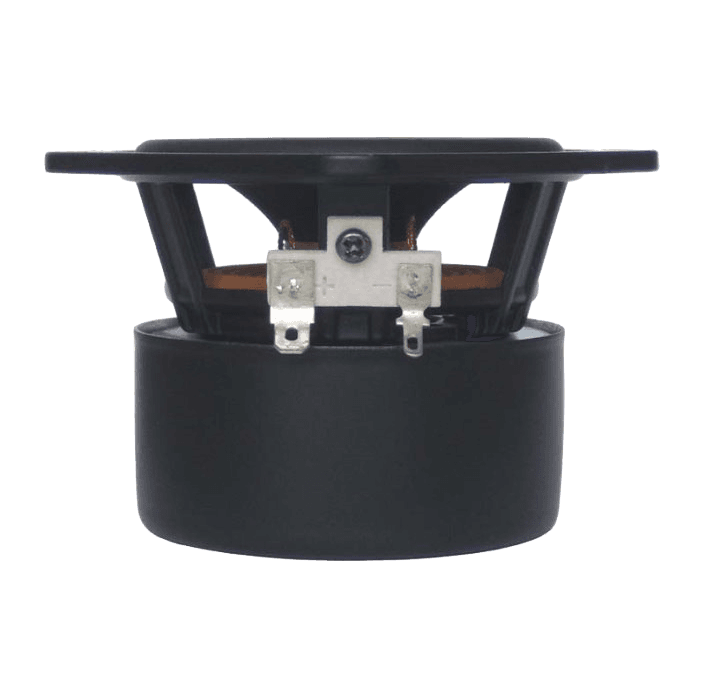

Tang Band W3-583SE
Tang Band W3-583SE is a 3" 8 ohm LF driver rated at 12W RMS. The validated T/S data includes Fs 100Hz, Qts 0.56, Vas 2.5L, Xmax 0.3mm, sensitivity 87.5dB, plus 1cm³ Vd and 143 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
8Ω
RMS Power
12W
Sensitivity
87.5dB
EBP
143
Vented alignment
Vd
1cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence668 selected pixels of 1,959 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,044 selected pixels of 2,044
T/S Parameters
Valid
Fs100Hz
Qts0.56
Qes0.70
Qms2.8
Vas2.5L
Re6.6Ω
Le0.05mH
BL3.0Tm
Sd32cm²
Mms2g
Xmax0.3mm
SPL88dB
Power12W
Impedance8Ω
