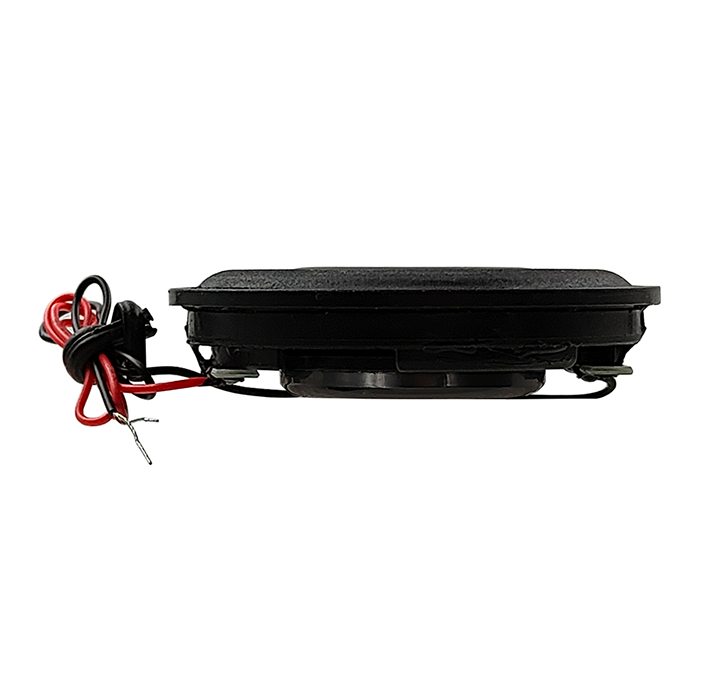

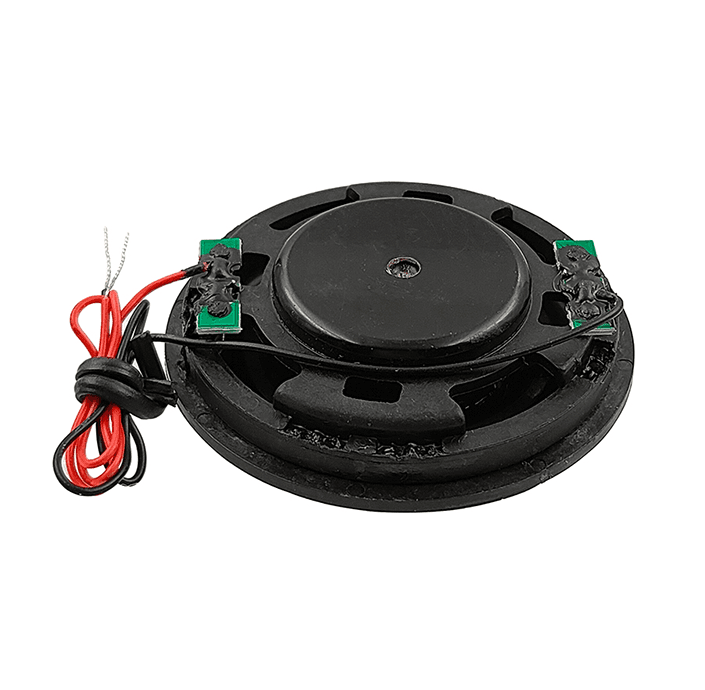

Tang Band W1-2396S 4Ω
4 Ω
£20.01
4.1%Audiophonics · In stock · Ships from France · All 2 offers
- Fs
- 180Hz
- Xmax
- 1.1mm
- SPL
- 81dB
- Pe
- 3W
- BL
- 2.1T·m
- Vd
- 1cm³
- Qts
- 0.59
- Vas
- 0.12L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence2,152 selected pixels of 2,953 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,795 selected pixels of 2,795
Tang Band W1-2396S is a 1-inch 4 ohm LF driver rated at 3 W RMS. The validated T/S data includes Fs 180 Hz, Qts 0.59, Vas 0.12 L, Xmax 1.1 mm, sensitivity 81.4 dB, plus 1 cm³ Vd and 225 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £20.01.
The published T/S values agree with each other
Thiele/Small
- Fs
- 180Hz
- Qts
- 0.59
- Qes
- 0.80
- Qms
- 2.2
- Vas
- 0.12L
- Re
- 3.6Ω
- Le
- 0.04mH
Motor and cone
- BL
- 2.1T·m
- Sd
- 10cm²
- Mms
- 0.9g
- Xmax
- 1.1mm
- Vd †
- 1cm³
Power and response
- Sensitivity †
- 81.4dB
- Manufacturer sensitivity
- 81dB
- Power
- 3W
- Impedance
- 4Ω
- EBP †
- 225 · Leans vented
Other published values
- Power Peak
- 6
† Calculated by bits from the published values
What this validation status means
Everything else Tang Band lists
LF · Primary · 1″
- BL
- 2.1T·m
- Fs
- 180Hz
- Le
- 0.04mH
- Re
- 3.6Ω
- Sd
- 10cm²
- Mms
- 0.9g
- Qes
- 0.80
- Qms
- 2.2
- Qts
- 0.59
- SPL
- 81.4dB
- Vas
- 0.12L
- Xmax
- 1.1mm
- Power
- 3W
- Impedance
- 4Ω
- Power Peak
- 6
- Sensitivity
- 81dB
- Calculated sensitivity †
- 81.4dB
- Manufacturer sensitivity
- 81dB
02
Compare
Same-size drivers, compared with the W1-2396S. Clear differences are green when better and red when worse.
This driverW1-2396S
Best price
£20.01
Fs
180 Hz
Qts
0.59
Vas
0.12 L
BL
2.1 T·m
Xmax
1.1 mm
Sensitivity
81.4 dB
Power
3 W
Dayton AudioCE48-4
£6.61 · 67% less, betterFs151 Hz −16%, better
Qts0.95 +61%, worse
Vas0.068 L −43%, better
BL2.5 T·m +16%, better
Xmax1.2 mm +9%
Sensitivity75.6 dB −5.8, worse
Dayton AudioCE52N-4
£6.66 · 67% less, betterFs164 Hz −9%
Qts0.59 –
Vas0.17 L +42%, worse
BL2.5 T·m +18%, better
Xmax0.85 mm −23%, worse
Sensitivity82.4 dB +1
Dayton AudioCE41N-4
£7.08 · 65% less, betterFs170 Hz −6%
Qts0.53 −10%, better
Vas0.078 L −35%, better
BL2.3 T·m +8%
Xmax0.7 mm −36%, worse
Sensitivity80.2 dB −1.2
REDCATT20NFR
£9.96 · 50% less, betterFs185 Hz –
Qts0.52 −12%, better
Vas0.09 L −25%, better
BL3.2 T·m +52%, better
Xmax3 mm +173%, better
Sensitivity82.3 dB +0.9
REDCATT21NFR
£11.13 · 44% less, betterFs157 Hz −13%, better
Qts0.68 +15%, worse
Vas0.25 L +108%, worse
BL4.4 T·m +107%, better
Xmax1.2 mm +9%
Sensitivity82.7 dB +1.3
Dayton AudioDMA45-8
£11.35 · 43% less, betterFs151 Hz −16%, better
Qts0.59 –
Vas0.057 L −53%, better
BL4.3 T·m +100%, better
Xmax2 mm +82%, better
Sensitivity76.6 dB −4.8, worse
VisatonFRS 5 X
£11.52 · 42% less, betterFs190 Hz +6%
Qts0.70 +19%, worse
Vas0.23 L +92%, worse
BL2.7 T·m +25%, better
Xmax0.25 mm −77%, worse
Sensitivity84.6 dB +3.2, better
SB AcousticsSB36WBAC21-8
£13.77 · 31% less, betterFs160 Hz −11%, better
Qts0.61 +3%
Vas0.035 L −71%, better
BL2.1 T·m –
Xmax1.8 mm +59%, better
Sensitivity74 dB −7.4, worse
VisatonFRS 5 XTS
£15.53 · 22% less, betterFs190 Hz +6%
Qts0.70 +19%, worse
Vas0.23 L +92%, worse
BL2.7 T·m +25%, better
Xmax0.25 mm −77%, worse
Sensitivity84.6 dB +3.2, better
Dayton AudioDMA58-8
£15.83 · 21% less, betterFs166 Hz −8%
Qts0.54 −8%
Vas0.14 L +13%, worse
BL4.9 T·m +130%, better
Xmax2 mm +82%, better
Sensitivity81.6 dB –
CIAREPA065
£15.91 · 21% less, betterFs154 Hz −14%, better
Qts1.30 +120%, worse
Vas0.7 L +483%, worse
BL1.9 T·m −12%, worse
Xmax1 mm −9%
Sensitivity83.3 dB +1.9
Sica2 H 0.8 SL
£17.58 · 12% less, betterFs216 Hz +20%, worse
Qts0.81 +37%, worse
Vas0.1 L −17%, better
BL2.6 T·m +22%, better
Xmax1.4 mm +27%, better
Sensitivity82.1 dB +0.7
MonacorSPX-21M
£22.52 · 13% more, worseFs170 Hz −6%
Qts0.47 −20%, better
Vas0.1 L −17%, better
BL3.3 T·m +56%, better
Xmax1.2 mm +9%
Sensitivity81.7 dB –
SB AcousticsSB65WBAC25-4
£25.12 · 26% more, worseFs115 Hz −36%, better
Qts0.68 +15%, worse
Vas0.43 L +258%, worse
BL2.9 T·m +36%, better
Xmax2.6 mm +141%, better
Sensitivity81.3 dB –
Tang BandW2-2355S
£29.47 · 47% more, worseFs80 Hz −56%, better
Qts0.56 −5%
Vas0.14 L +17%, worse
BL4.3 T·m +102%, better
Xmax5 mm +355%, better
Sensitivity72.3 dB −9.1, worse
FountekFR58EX
£37.60 · 88% more, worseFs134 Hz −26%, better
Qts0.55 −7%
Vas0.01 L −92%, better
BL3.4 T·m +59%, better
Xmax2.9 mm +164%, better
Sensitivity67.5 dB −13.9, worse
Dayton AudioRS52AN-8
£52.67 · 163% more, worseFs341 Hz +89%, worse
Qts0.86 +46%, worse
Vas0.13 L +8%
BL4.3 T·m +100%, better
Xmax1 mm −9%
Sensitivity88.4 dB +7, better
Scanspeak5F/8422T01
£53.50 · 167% more, worseFs93 Hz −48%, better
Qts0.61 +3%
Vas0.5 L +317%, worse
BL3.1 T·m +46%, better
Xmax2 mm +82%, better
Sensitivity79.7 dB −1.7
WavecorFR055WA01
£60.79 · 204% more, worseFs142 Hz −21%, better
Qts0.91 +54%, worse
Vas0.27 L +125%, worse
BL2.1 T·m –
Xmax1.4 mm +23%, better
Sensitivity80.9 dB −0.5
Tang BandW1-1815SA
No current priceFs170 Hz −6%
Qts0.53 −10%, better
Vas0.038 L −68%, better
BL2.1 T·m –
Xmax1.3 mm +14%, better
Sensitivity77 dB −4.4, worse
WavecorFR055OM01
No current priceFs130 Hz −28%, better
Qts0.86 +46%, worse
Vas0.35 L +192%, worse
BL2 T·m −6%
Xmax1 mm −9%
Sensitivity81.1 dB –
WavecorFR055WA03
No current priceFs142 Hz −21%, better
Qts0.57 −3%
Vas0.27 L +125%, worse
BL2.7 T·m +27%, better
Xmax1.4 mm +23%, better
Sensitivity83.1 dB +1.7
Tang BandW1-2370S
No current priceFs170 Hz −6%
Qts0.47 −20%, better
Vas0.051 L −58%, better
BL1.5 T·m −28%, worse
Xmax1 mm −9%
Sensitivity77.9 dB −3.5, worse
Tang BandW1-1925SB
No current priceFs220 Hz +22%, worse
Qts0.54 −8%
Vas0.018 L −85%, better
BL1.1 T·m −47%, worse
Xmax0.75 mm −32%, worse
Sensitivity75.7 dB −5.7, worse
Dayton AudioCE58N-10
No current priceFs177 Hz –
Qts0.69 +17%, worse
Vas0.16 L +32%, worse
BL4.2 T·m +96%, better
Xmax2.1 mm +91%, better
Sensitivity82 dB +0.6
Tang BandW1-2025SA
No current priceFs200 Hz +11%, worse
Qts0.46 −22%, better
Vas0.05 L −58%, better
BL2.1 T·m –
Xmax0.75 mm −32%, worse
Sensitivity80.5 dB −0.9
Tang BandW1-1931S
No current priceFs170 Hz −6%
Qts0.46 −22%, better
Vas0.02 L −83%, better
BL2.6 T·m +22%, better
Xmax1.2 mm +9%
Sensitivity74.6 dB −6.8, worse
LavoceFSN021.02
No current priceFs151 Hz −16%, better
Qts0.68 +15%, worse
Vas0.3 L +150%, worse
BL3.4 T·m +62%, better
Xmax2.3 mm +109%, better
Sensitivity83.3 dB +1.9
WavecorFR055OM02
No current priceFs135 Hz −25%, better
Qts1.06 +80%, worse
Vas0.35 L +192%, worse
BL2.5 T·m +17%, better
Xmax1 mm −9%
Sensitivity80.5 dB −0.9
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Audiophonics Import VAT and duty may apply | £20.01, the lowest price | In stock | Visit shop at Audiophonics | |
Parts Express Import VAT and duty may apply | £20.87 | 4.3% above the lowest price | 20 in stock | Visit shop at Parts Express |
Best price over time
Tracked since 22 Jul
