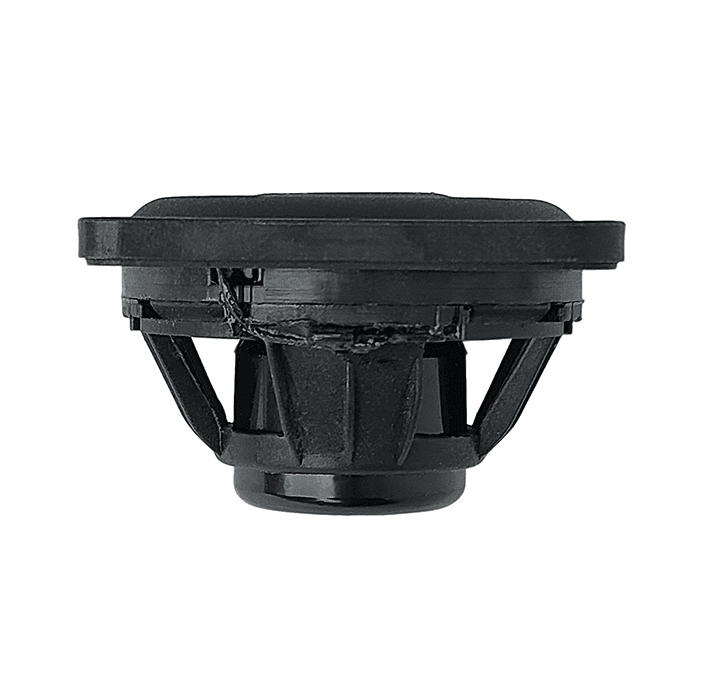

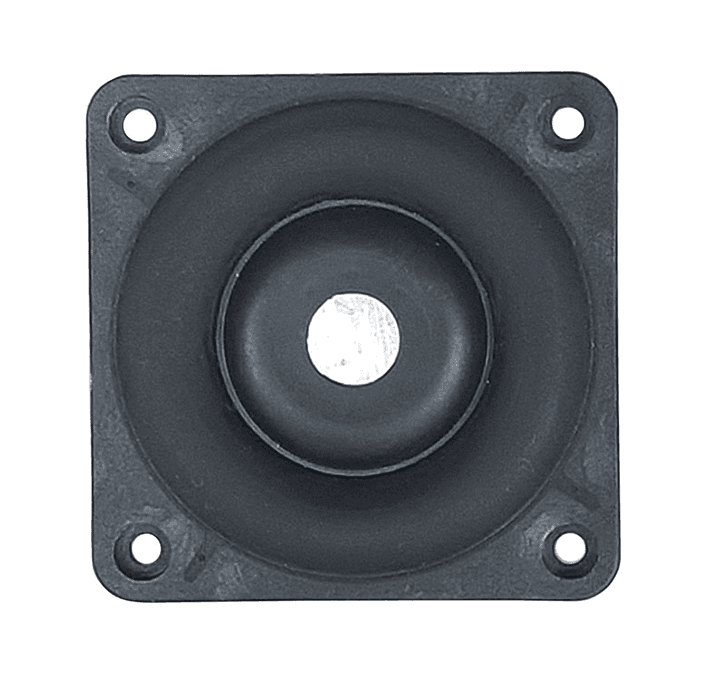

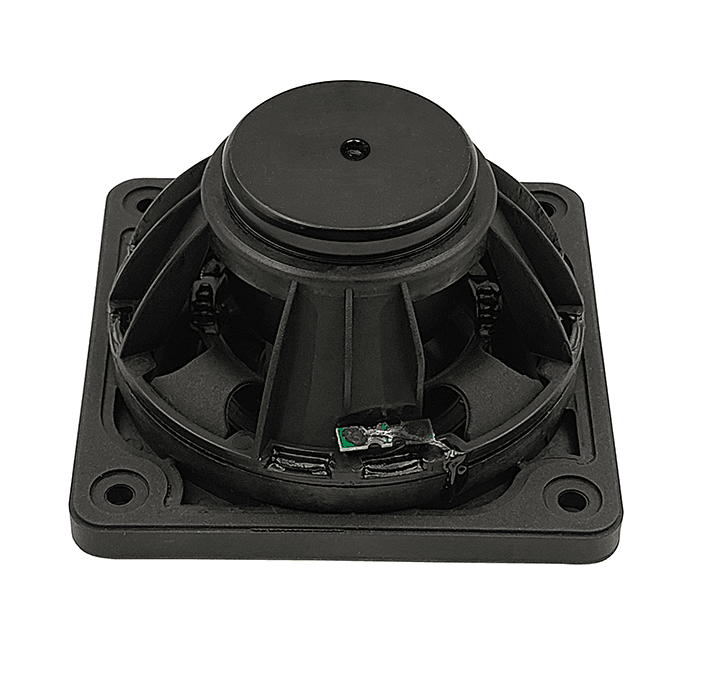

Tang Band W2-2355S 4Ω
4 Ω
£29.47
SteadyParts Express · 49 in stock · Ships from United States · All 1 offer
- Fs
- 80Hz
- Xmax
- 5mm
- SPL
- 72dB
- Pe
- 10W
- BL
- 4.3T·m
- Vd
- 7cm³
- Qts
- 0.56
- Vas
- 0.14L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,526 selected pixels of 1,970
Tang Band W2-2355S is a 2-inch 4 ohm LF driver rated at 10 W RMS. The validated T/S data includes Fs 80 Hz, Qts 0.56, Vas 0.14 L, Xmax 5 mm, sensitivity 72.3 dB, plus 7 cm³ Vd and 118 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £29.47.
The published T/S values agree with each other
Thiele/Small
- Fs
- 80Hz
- Qts
- 0.56
- Qes
- 0.68
- Qms
- 3.3
- Vas
- 0.14L
- Re
- 3.6Ω
- Le
- 0.12mH
Motor and cone
- BL
- 4.3T·m
- Sd
- 13cm²
- Mms
- 7g
- Xmax
- 5mm
- Vd †
- 7cm³
Power and response
- Sensitivity †
- 72.3dB
- Manufacturer sensitivity
- 72dB
- Power
- 10W
- Impedance
- 4Ω
- EBP †
- 118 · Leans vented
Other published values
- Power Peak
- 20
† Calculated by bits from the published values
What this validation status means
Everything else Tang Band lists
LF · Primary · 2″
- BL
- 4.3T·m
- Fs
- 80Hz
- Le
- 0.12mH
- Re
- 3.6Ω
- Sd
- 13cm²
- Mms
- 7g
- Qes
- 0.68
- Qms
- 3.3
- Qts
- 0.56
- SPL
- 72.3dB
- Vas
- 0.14L
- Xmax
- 5mm
- Power
- 10W
- Impedance
- 4Ω
- Power Peak
- 20
- Sensitivity
- 72dB
- Calculated sensitivity †
- 72.3dB
- Manufacturer sensitivity
- 72dB
