LF DriverCHN series
Markaudio

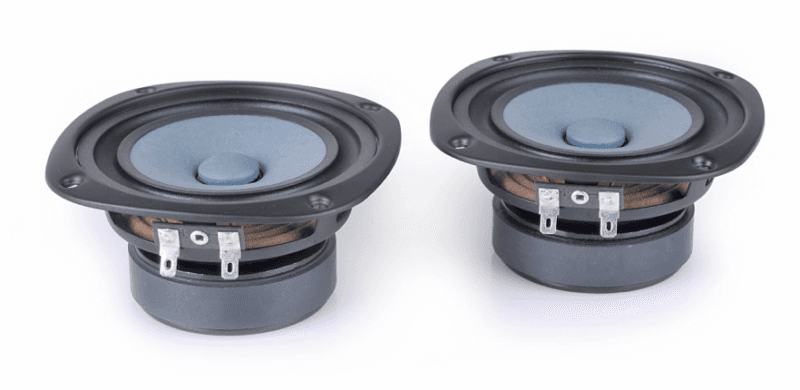

Markaudio CHN-70
Markaudio CHN-70 is a 2.75" 6 ohm LF driver rated at 18W RMS. The validated T/S data includes Fs 72Hz, Qts 0.48, Vas 5.3L, Xmax 4mm, sensitivity 86.8dB, plus 20cm³ Vd and 110 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2.75"
Impedance
6Ω
RMS Power
18W
Sensitivity
86.8dB
EBP
110
Vented alignment
Vd
20cm³
T/S Parameters
Valid
Fs72Hz
Qts0.48
Qes0.65
Qms1.8
Vas5.3L
Re5.0Ω
Le0.02mH
BL3.4Tm
Sd50cm²
Mms3g
Xmax4.0mm
SPL87dB
Power18W
Impedance6Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
