Overview
LF Driver
Tang Band

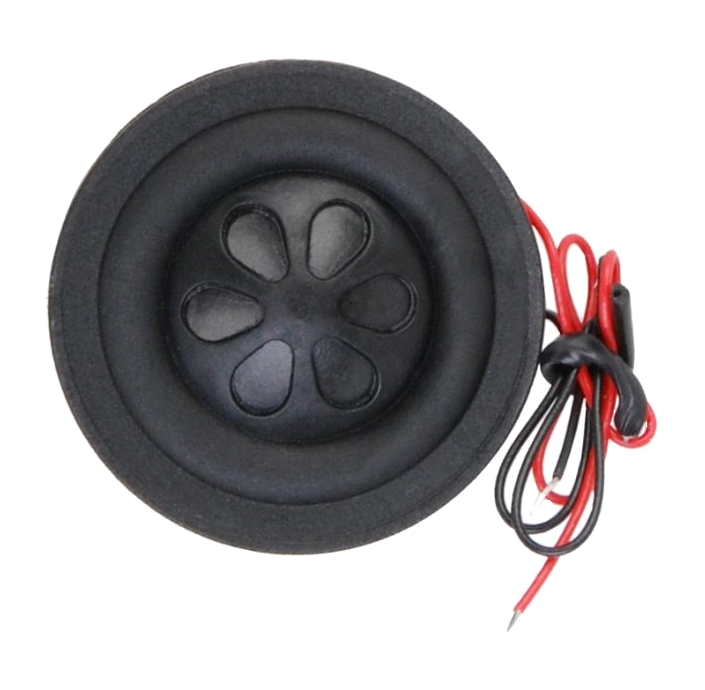

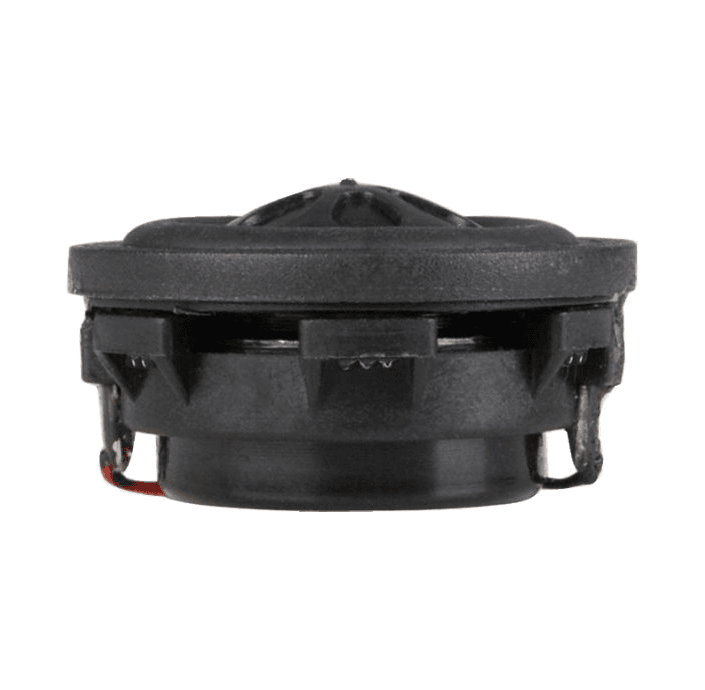

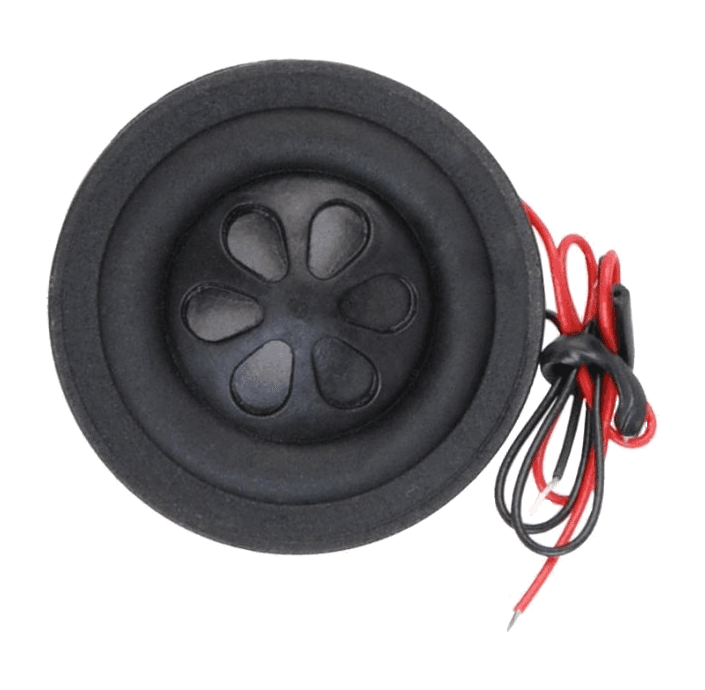

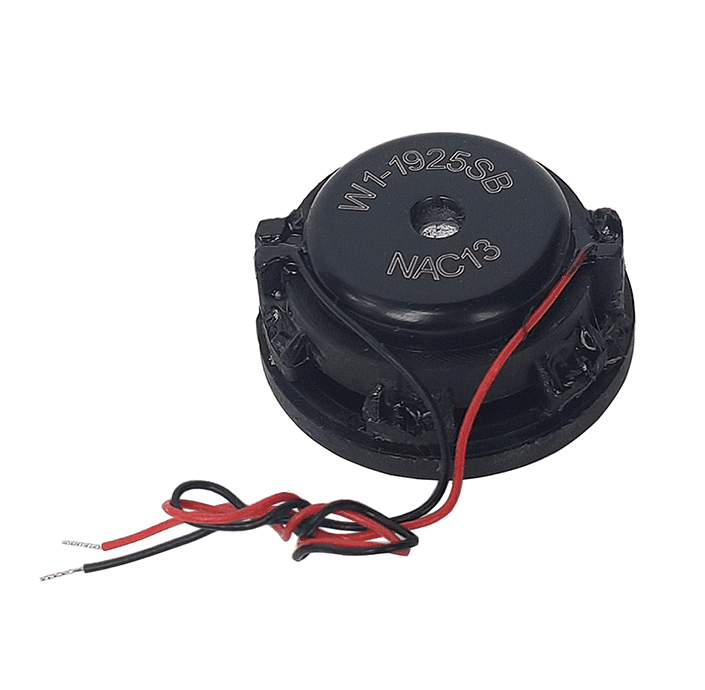

Tang Band W1-1925SB
Tang Band W1-1925SB is a 1" 4 ohm LF driver rated at 1W RMS. The validated T/S data includes Fs 220Hz, Qts 0.54, Vas 0.0L, Xmax 0.8mm, sensitivity 75.7dB, plus 0cm³ Vd and 268 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
1"
Impedance
4Ω
RMS Power
1W
Sensitivity
75.7dB
EBP
268
Vented alignment
Vd
0cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,802 selected pixels of 2,012 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,918 selected pixels of 1,920
T/S Parameters
Valid
Fs220Hz
Qts0.54
Qes0.82
Qms0.6
Vas0.0L
Re3.5Ω
Le0.01mH
BL1.1Tm
Sd2cm²
Mms0g
Xmax0.8mm
SPL76dB
Power1W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
