Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespVisaton BG 17 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverBG series
Visaton

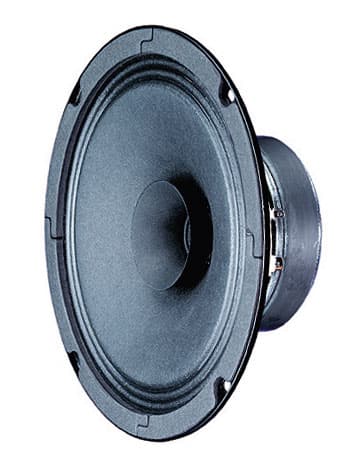

Visaton BG 17
Rated 4.5 out of 5105 ratings at 2 shopsVisaton BG 17 is a 6.5" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 120Hz, Qts 0.74, Vas 8.2L, Xmax 2mm, sensitivity 93.6dB, plus 29cm³ Vd and 122 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £22.44.
Size
6.5"
Impedance
8Ω
RMS Power
40W
Sensitivity
93.6dB
EBP
122
Vented alignment
Vd
29cm³
T/S Parameters
Valid
Fs120Hz
Qts0.74
Qes0.98
Qms2.9
Vas8.2L
Re6.3Ω
Le0.70mH
BL5.7Tm
Sd143cm²
Mms7g
Xmax2.0mm
SPL94dB
Power40W
Impedance8Ω
F Low80Hz
F High20000Hz
Voice Coil20mm
Flux Density1.00T
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorsThomann
Updated 28 Sept 2026· 8Ω
Source: inc VAT · 20%
£18.90
inc VAT
Out of stockusually 2-5 days
SoundImports
Updated 28 Sept 2026· 8Ω
Source: inc VAT
£22.76
inc VAT
7 in stock
Best current price
Updated 28 Sept 2026
RumoH
£22.44
Avg £22.60
inc VAT
Reviews
How ratings workRated 4.5 out of 5from 105 ratings at 2 shops
- Read reviews on ThomannThomannRated 4.5 out of 5 · 102 ratings · Checked 28 Sep 2026
- Read reviews on SoundImportsSoundImportsRated 5.0 out of 5 · 3 ratings · Checked 28 Sep 2026
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.7kg
Diameter160.0mm
Cutout Diameter146.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
BG 17
6.5"
Best current price
£22.44
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
33%
Similarity
71% more£38.29
Sica
6 D 1.5 CS
6"
Higher price
Xmax1.5mm-25%
Qts0.63-15%
BL7.4Tm+29%
Vas4.4L-46%
Qes0.79-19%
100%
Similarity
Visaton
BG 17 - 8 Ohm
6.5"
Xmax2mm0%
Qts0.740%
BL5.7Tm0%
Vas8.2L0%
Qes0.980%
