LF DriverTF0615 series
Celestion

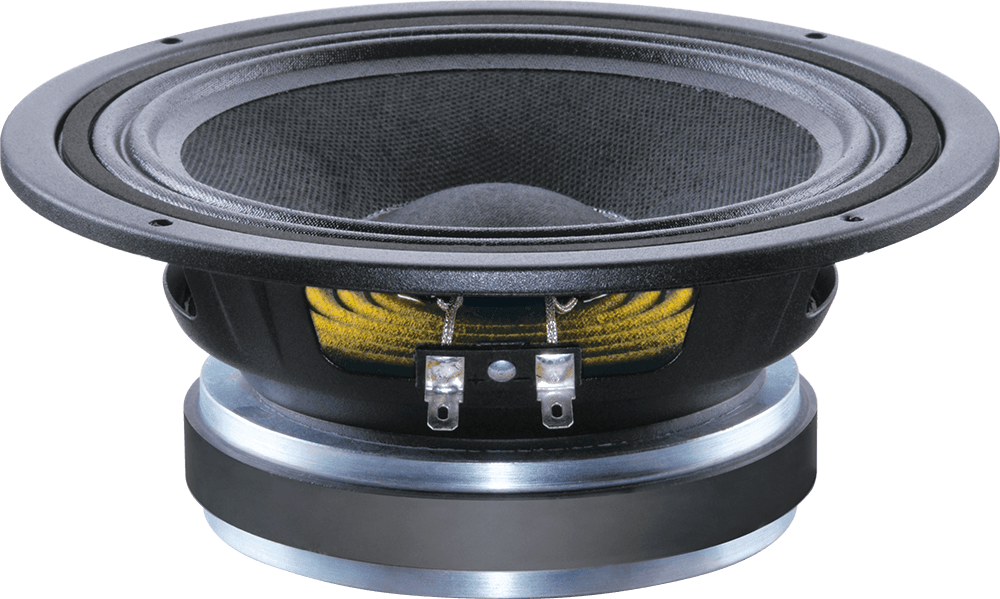

Celestion TF0615
Celestion TF0615 is a 6.5" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 105Hz, Qts 0.61, Vas 6.4L, Xmax 1.8mm, sensitivity 92.1dB, plus 27cm³ Vd and 146 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £47.00.
Size
6.5"
Impedance
8Ω
RMS Power
100W
Sensitivity
92.1dB
95.0dBmanufacturer; using T/S-derived value (2.9dB delta).
EBP
146
Vented alignment
Vd
27cm³

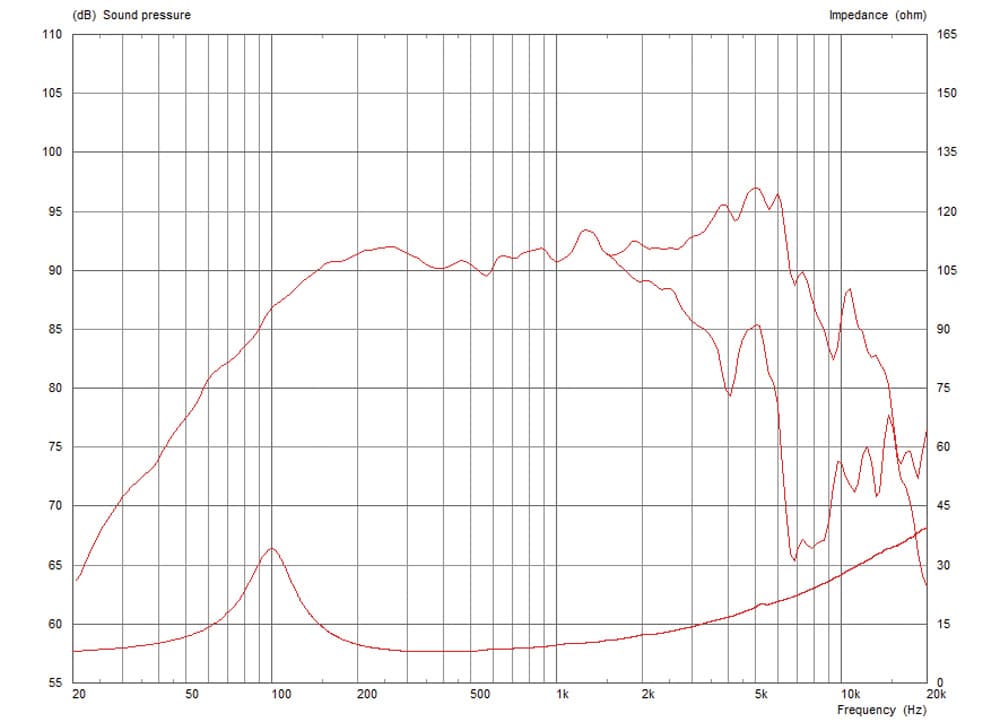

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence168 selected pixels of 365
T/S Parameters
Valid
Fs105Hz
Qts0.61
Qes0.72
Qms3.9
Vas6.4L
Re7.1Ω
Le0.47mH
BL8.8Tm
Sd154cm²
Mms12g
Xmax1.8mm
SPL92dB
Power100W
Impedance8Ω
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
£47.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.4kg
Diameter178.0mm
Overall Depth74.0mm
Cutout Diameter147.0mm
Bolt Circle Diameter168.5mm
