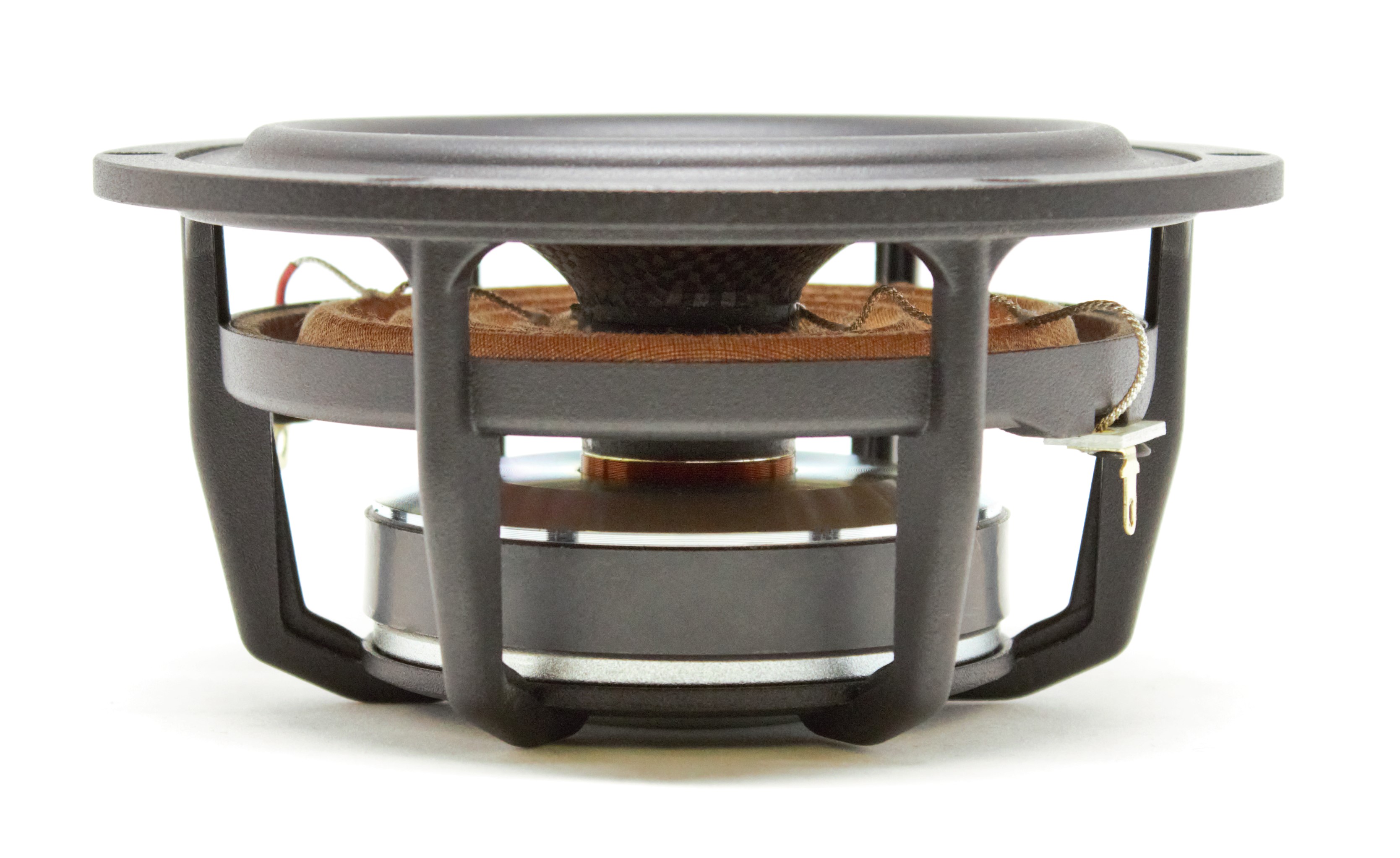

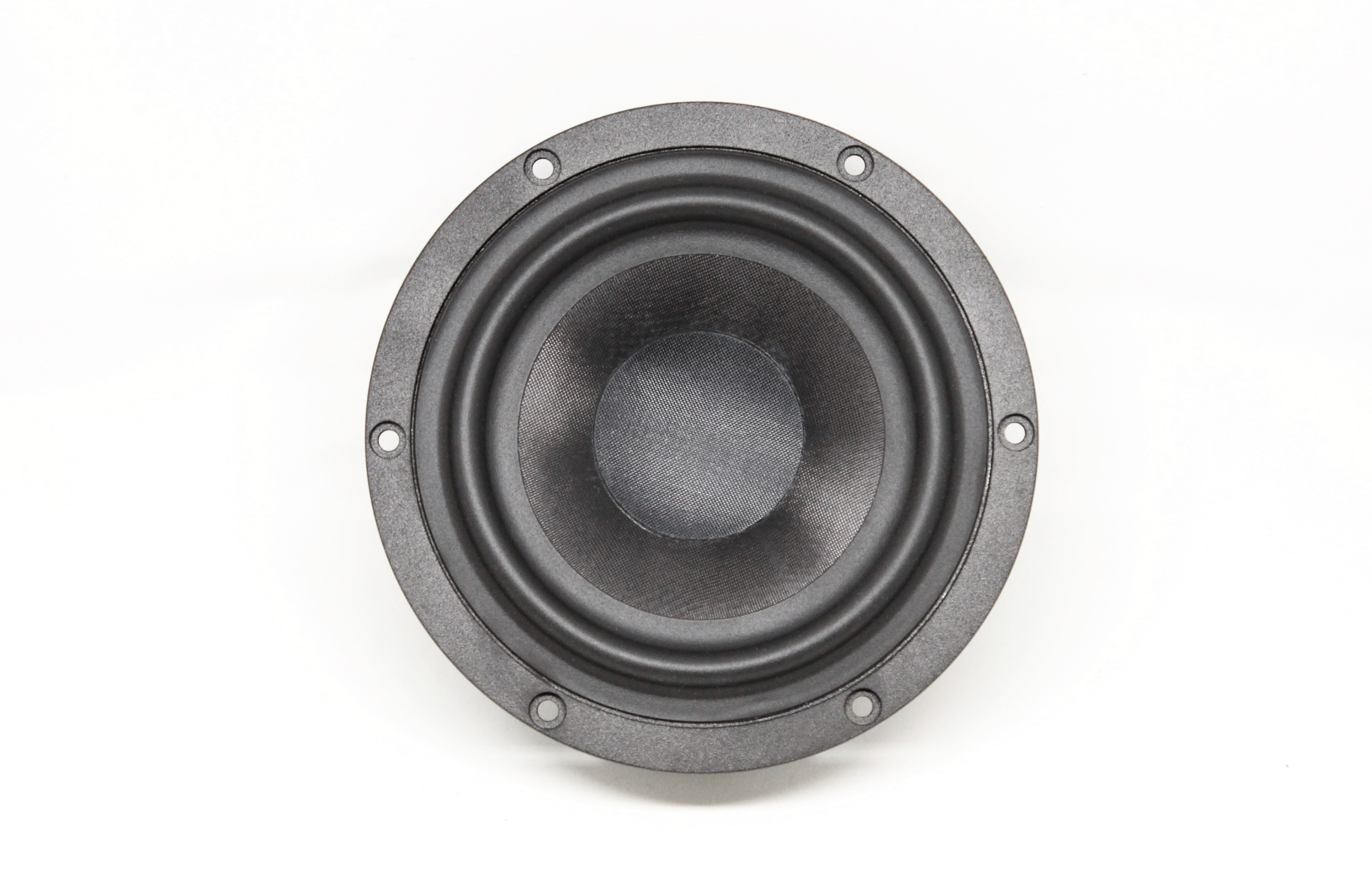

5.75-inch LF driver
Kartesian WOM145_VMS 8Ω
8 Ω · 48–3500 Hz
No current price
- Fs
- 48Hz
- Xmax
- 4.5mm
- SPL
- 87dB
- Pe
- –
- BL
- 6.6T·m
- Vd
- 35cm³
- Qts
- 0.36
- Vas
- 10L
Kartesian WOM145_VMS is a 5.75-inch 8 ohm LF driver. The validated T/S data includes Fs 48 Hz, Qts 0.36, Vas 9.9 L, Xmax 4.5 mm, sensitivity 87 dB, plus 35 cm³ Vd. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Partial source evidence
Automated T/S checks passed, but some material low-frequency parameters are not published for this record.
Material fields not published: Qes
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
Thiele/Small
- Fs
- 48Hz
- Qts
- 0.36
- Qms
- 2.4
- Vas
- 9.9L
- Re
- 6.2Ω
Motor and cone
- BL
- 6.6T·m
- Sd
- 79cm²
- Mms
- 10g
- Xmax
- 4.5mm
- Vd †
- 35cm³
Power and response
- Sensitivity
- 87dB
- Impedance
- 8Ω
- Range
- 48–3500Hz
Size and mounting
- Diameter
- 145mm
† Calculated by bits from the published values
What this validation status means
Everything else Kartesian lists
LF · Primary · 5.708661417322835″
- BL
- 6.6T·m
- Fs
- 48Hz
- Re
- 6.2Ω
- Sd
- 79cm²
- Mms
- 10g
- Qms
- 2.4
- Qts
- 0.36
- SPL
- 87dB
- Vas
- 9.9L
- Xmax
- 4.5mm
- Impedance
- 8Ω
- Sensitivity
- 87dB
- Low limit
- 48Hz
- High limit
- 3500Hz
- Manufacturer sensitivity
- 87dB
- Diameter
- 145mm
02
Compare
Same-size drivers, compared with the WOM145_VMS. Clear differences are green when better and red when worse.
This driverWOM145_VMS
Best price
–
Fs
48 Hz
Qts
0.36
Vas
9.9 L
BL
6.6 T·m
Xmax
4.5 mm
Sensitivity
87 dB
Power
–
SB AcousticsSB13PFC25-8
£22.98Fs45 Hz −6%
Qts0.33 −7%
Vas13.4 L +36%, worse
BL6.2 T·m −6%
Xmax4.5 mm –
Sensitivity87 dB –
SB AcousticsSB13PFCR25-8
£22.98Fs45 Hz −6%
Qts0.33 −7%
Vas13.4 L +36%, worse
BL6.2 T·m −6%
Xmax4.5 mm –
Sensitivity87 dB –
Dayton AudioDSA135-8
£29.91Fs52 Hz +8%
Qts0.38 +7%
Vas7.9 L −20%, better
BL6.2 T·m −6%
Xmax4.9 mm +9%
Sensitivity85.7 dB −1.3
Dayton AudioDS135-8
£29.91Fs53 Hz +9%
Qts0.39 +10%
Vas7.3 L −26%, better
BL6.2 T·m −6%
Xmax4.8 mm +8%
Sensitivity85.4 dB −1.6
CIAREHW131
£30.98Fs68 Hz +42%, worse
Qts0.39 +10%
Vas5.6 L −43%, better
BL7.0 T·m +7%
Xmax4.4 mm –
Sensitivity87.9 dB +0.9
CIAREHWB130
£60.29Fs48 Hz –
Qts0.30 −16%, better
Vas12.5 L +27%, worse
BL7.2 T·m +9%
Xmax4.5 mm –
Sensitivity88.4 dB +1.4
Sica5 NR 1.5 PL
£63.80Fs61 Hz +27%, worse
Qts0.35 –
Vas7.4 L −25%, better
BL6.7 T·m –
Xmax3.5 mm −22%, worse
Sensitivity88.4 dB +1.4
CIAREHWB160
£65.31Fs43 Hz −10%, better
Qts0.37 +4%
Vas28 L +184%, worse
BL7.3 T·m +11%, better
Xmax4.5 mm –
Sensitivity89.4 dB +2.4, better
ETON5-612/C8/25 RP
£75.32Fs55 Hz +15%, worse
Qts0.36 –
Vas9.8 L –
BL5.9 T·m −11%, worse
Xmax2 mm −56%, worse
Sensitivity88.4 dB +1.4
WavecorWF152BD13
£98.00Fs50 Hz +4%
Qts0.33 −7%
Vas9.2 L −7%
BL6.3 T·m −4%
Xmax4.5 mm –
Sensitivity87.3 dB –
WavecorWF152BD09
£109.96Fs52 Hz +8%
Qts0.34 −4%
Vas8.6 L −13%, better
BL5.8 T·m −12%, worse
Xmax4.5 mm –
Sensitivity87.4 dB –
WavecorWF152BD03
£142.76Fs56 Hz +16%, worse
Qts0.35 –
Vas9.2 L −7%
BL5.8 T·m −12%, worse
Xmax4.5 mm –
Sensitivity88.4 dB +1.4
WavecorWF152BD04
£142.76Fs50 Hz +4%
Qts0.31 −13%, better
Vas11.4 L +16%, worse
BL7.3 T·m +11%, better
Xmax4.5 mm –
Sensitivity88.4 dB +1.4
WavecorWF152BD12
£149.88Fs46 Hz −4%
Qts0.38 +7%
Vas9.6 L –
BL7.2 T·m +9%
Xmax4.5 mm –
Sensitivity85.7 dB −1.3
WavecorWF152BD05
No current priceFs50 Hz +4%
Qts0.33 −7%
Vas9.2 L −7%
BL6.3 T·m −4%
Xmax4.5 mm –
Sensitivity87.3 dB –
Sica5.5 H 1.5 CP
No current priceFs48 Hz –
Qts0.37 +4%
Vas8.4 L −15%, better
BL7.2 T·m +9%
Xmax4.5 mm –
Sensitivity85.7 dB −1.3
WavecorWF152BD10
No current priceFs49 Hz –
Qts0.32 −10%, better
Vas9.6 L –
BL5.8 T·m −12%, worse
Xmax4.5 mm –
Sensitivity87.4 dB –
WavecorWF152BD08
No current priceFs46 Hz −4%
Qts0.35 –
Vas11.5 L +17%, worse
BL8 T·m +21%, better
Xmax4.5 mm –
Sensitivity87 dB –
WavecorWF152BD16
No current priceFs46 Hz −4%
Qts0.35 –
Vas11.5 L +17%, worse
BL8 T·m +21%, better
Xmax4.5 mm –
Sensitivity87 dB –
WavecorWF152BD11
No current priceFs53 Hz +10%, worse
Qts0.40 +12%, worse
Vas8.6 L −13%, better
BL7.2 T·m +9%
Xmax4.5 mm –
Sensitivity86.9 dB –
WavecorWF152BD07
No current priceFs52 Hz +7%
Qts0.39 +10%
Vas9.2 L −7%
BL8 T·m +21%, better
Xmax4.5 mm –
Sensitivity86.9 dB –
WavecorWF152BD15
No current priceFs52 Hz +7%
Qts0.39 +10%
Vas9.2 L −7%
BL8 T·m +21%, better
Xmax4.5 mm –
Sensitivity86.9 dB –
HiViD6.4+
No current priceFs44 Hz −8%
Qts0.36 –
Vas13.9 L +41%, worse
BL6.6 T·m –
Xmax4 mm −11%, worse
Sensitivity86.5 dB −0.5
WavecorWF152BD06
No current priceFs45 Hz −7%
Qts0.29 −19%, better
Vas11.5 L +17%, worse
BL6.3 T·m −4%
Xmax4.5 mm –
Sensitivity87.3 dB –
WavecorWF152BD14
No current priceFs45 Hz −7%
Qts0.29 −19%, better
Vas11.5 L +17%, worse
BL6.3 T·m −4%
Xmax4.5 mm –
Sensitivity87.3 dB –
CIARECMI160
No current priceFs70 Hz +46%, worse
Qts0.41 +15%, worse
Vas7.8 L −21%, better
BL7.2 T·m +9%
Xmax4.5 mm –
Sensitivity89.8 dB +2.8, better
KartesianWOM120_VMS
No current priceFs62 Hz +29%, worse
Qts0.36 –
Vas4.2 L −58%, better
BL5.9 T·m −10%, worse
Xmax4.5 mm –
Sensitivity88 dB +1
FaneSTUDIO 5FRK
No current priceFs58 Hz +21%, worse
Qts0.36 –
Vas10.9 L +11%, worse
BL6.8 T·m +4%
Xmax2.4 mm −46%, worse
Sensitivity89.5 dB +2.5, better
CIARECXI160
No current priceFs91 Hz +90%, worse
Qts0.51 +43%, worse
Vas7.8 L −21%, better
BL6.8 T·m +3%
Xmax4.5 mm –
Sensitivity92.2 dB +5.2, better
