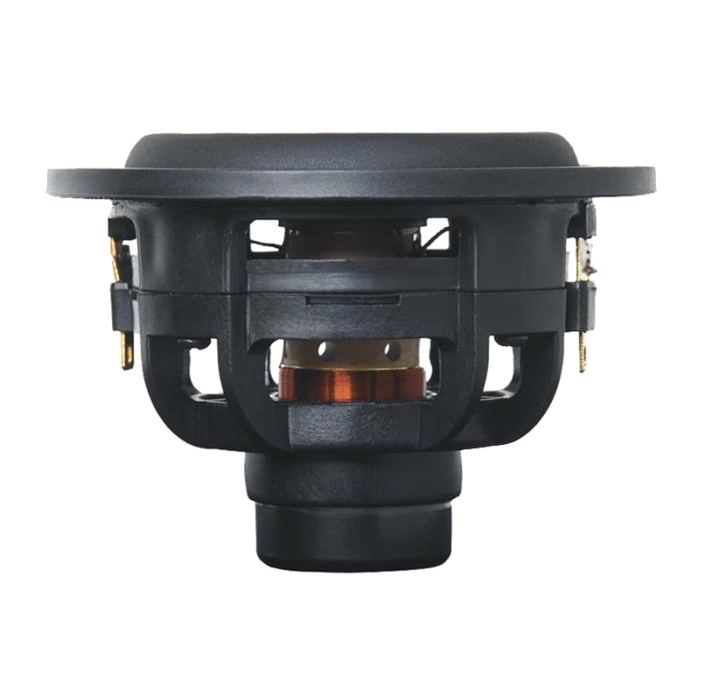

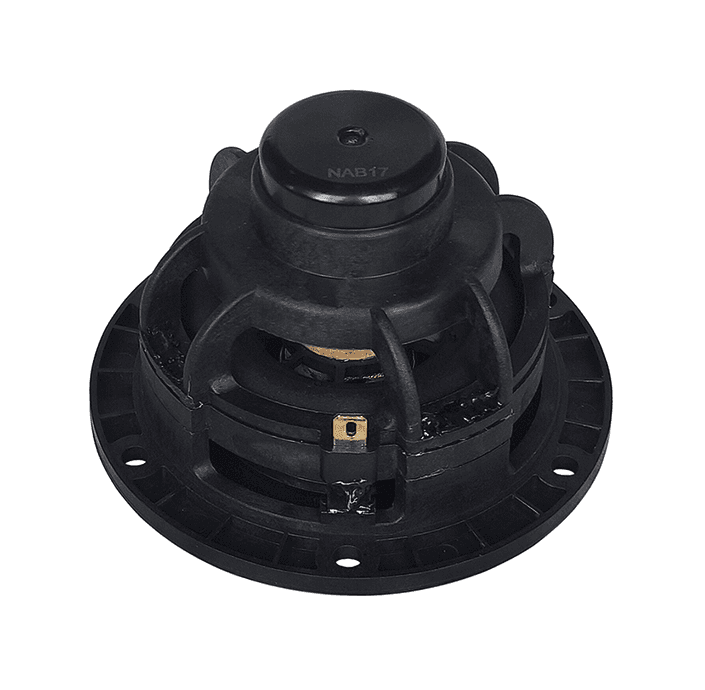

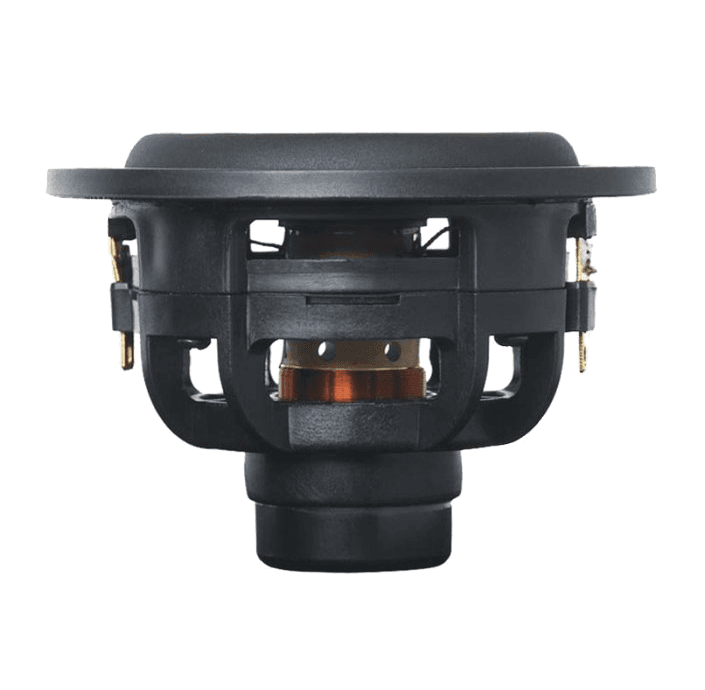

Tang Band W3-1876S 4Ω
4 Ω
No price for delivery to the UK
- Fs
- 55Hz
- Xmax
- 4mm
- SPL
- 77dB
- Pe
- 15W
- BL
- 5.3T·m
- Vd
- 11cm³
- Qts
- 0.43
- Vas
- 0.88L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,068 selected pixels of 1,748
Tang Band W3-1876S is a 3-inch 4 ohm LF driver rated at 15 W RMS. The validated T/S data includes Fs 55 Hz, Qts 0.43, Vas 0.9 L, Xmax 4 mm, sensitivity 76.7 dB, plus 11 cm³ Vd and 110 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 55Hz
- Qts
- 0.43
- Qes
- 0.50
- Qms
- 3.2
- Vas
- 0.9L
- Re
- 3.6Ω
- Le
- 0.19mH
Motor and cone
- BL
- 5.3T·m
- Sd
- 27cm²
- Mms
- 10g
- Xmax
- 4mm
- Vd †
- 11cm³
Power and response
- Sensitivity †
- 76.7dB
- Manufacturer sensitivity
- 76dB
- Power
- 15W
- Impedance
- 4Ω
- EBP †
- 110 · Leans vented
Other published values
- Power Peak
- 30
† Calculated by bits from the published values
What this validation status means
Everything else Tang Band lists
LF · Primary · 3″
- BL
- 5.3T·m
- Fs
- 55Hz
- Le
- 0.19mH
- Re
- 3.6Ω
- Sd
- 27cm²
- Mms
- 10g
- Qes
- 0.50
- Qms
- 3.2
- Qts
- 0.43
- SPL
- 76.7dB
- Vas
- 0.9L
- Xmax
- 4mm
- Power
- 15W
- Impedance
- 4Ω
- Power Peak
- 30
- Sensitivity
- 76dB
- Calculated sensitivity †
- 76.7dB
- Manufacturer sensitivity
- 76dB
