LF DriverFSN041 series
Lavoce
Lavoce FSN041.00
Lavoce FSN041.00 is a 4" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 114Hz, Qts 0.38, Vas 1.8L, Xmax 2.2mm, sensitivity 90dB, plus 12cm³ Vd and 265 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £34.72.
Size
4"
Impedance
8Ω
RMS Power
40W
Sensitivity
90.0dB
91.5dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
265
Vented alignment
Vd
12cm³

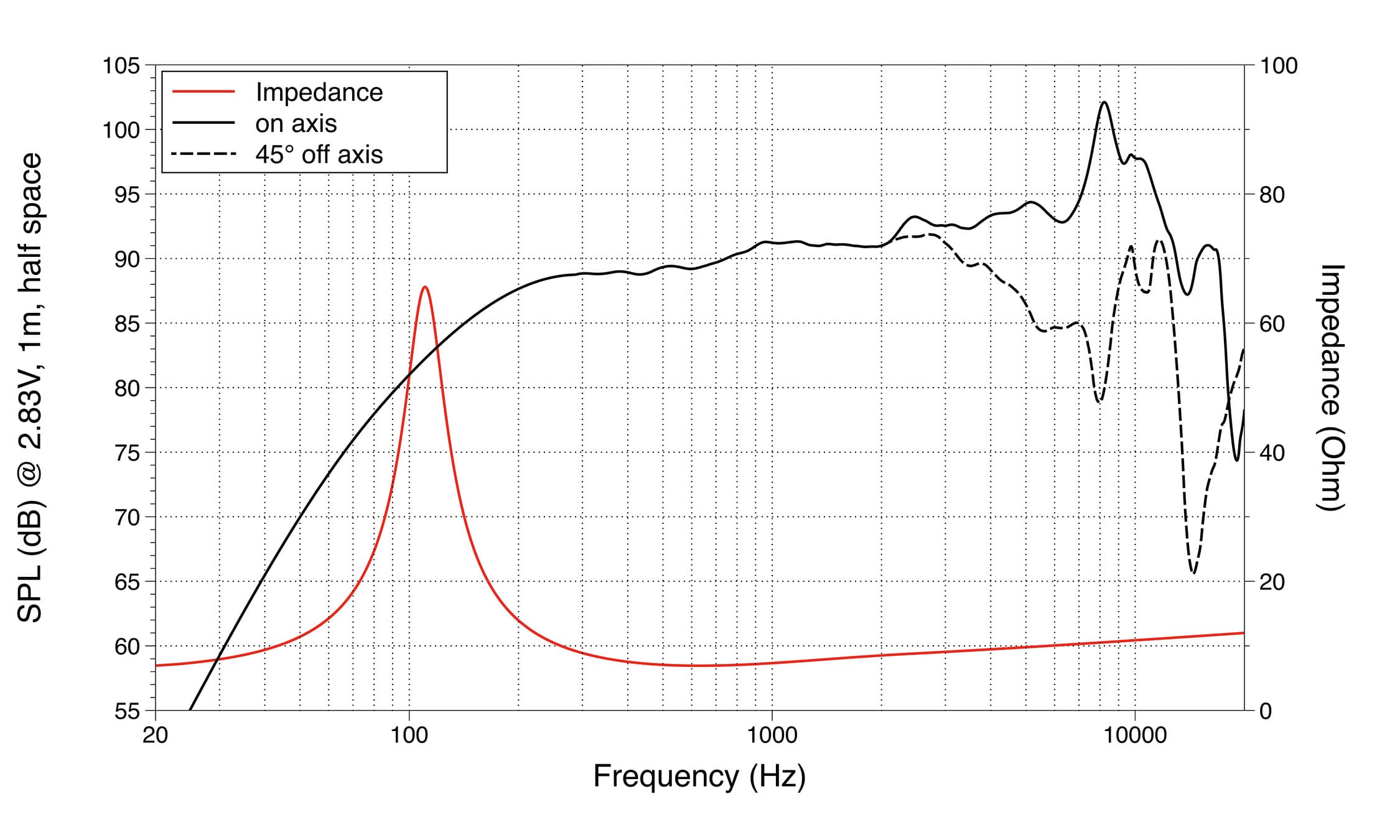

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs114Hz
Qts0.38
Qes0.43
Qms3.6
Vas1.8L
Re6.0Ω
Le0.06mH
BL6.9Tm
Sd56cm²
Mms5g
Xmax2.2mm
SPL90dB
Power40W
Impedance8Ω
Min Impedance7.0Ω
F Low110Hz
F High18000Hz
Voice Coil25mm
Pricing & availability
Price definitionsPrice movement
Best current price
£34.72
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

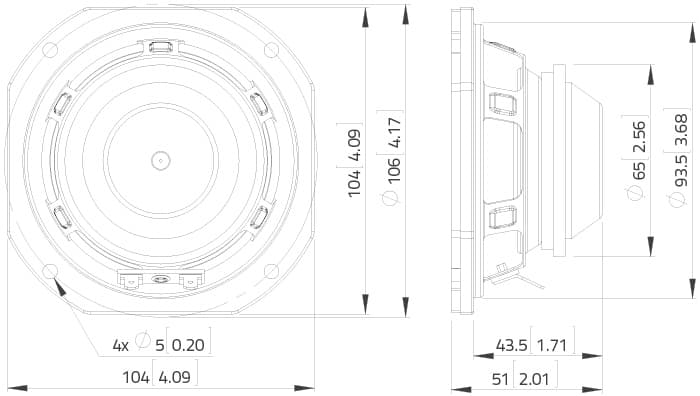

Dimensions & Physical
Weight0.4kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Lavoce
FSN041.00
4"
Best current price
£34.72
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
10 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
24%
Similarity
47% cheaper£18.26
FaitalPRO
3FE22
3"
Lower price
Xmax1.8mm-17%
Qts0.47+24%
BL4.5Tm-34%
Vas1.3L-29%
Qes0.52+21%
50%
Similarity
44% cheaper£19.46
Dayton Audio
DSA90-8
3"
Lower price
Xmax2.5mm+14%
Qts0.37-3%
BL4.6Tm-33%
Vas2.3L+23%
Qes0.45+5%
52%
Similarity
32% cheaper£23.56
Lavoce
FSN030.72
3"
Lower price
Xmax2.1mm-5%
Qts0.41+8%
BL5Tm-27%
Vas1.1L-39%
Qes0.430%
54%
Similarity
18% cheaper£28.64
FaitalPRO
4FE42
4"
Lower price
Xmax2.8mm+29%
Qts0.47+24%
BL6Tm-13%
Vas1.9L+3%
Qes0.5+16%
57%
Similarity
36% more£47.37
FaitalPRO
4FE44
4"
Higher price
Xmax1.7mm-24%
Qts0.33-13%
BL7.2Tm+5%
Vas1.1L-40%
Qes0.35-19%
68%
Similarity
208% more£106.95
Scanspeak
10F/8424G00
4"
Higher price
Xmax2.6mm+18%
Qts0.37-3%
BL4.8Tm-30%
Vas2.1L+14%
Qes0.41-5%
77%
Similarity
Sica
4 E 1 CS
4"
Xmax2.2mm0%
Qts0.39+3%
BL5.8Tm-16%
Vas1.3L-29%
Qes0.49+14%
74%
Similarity
Sica
4 L1 1 SL
4"
Xmax2.5mm+14%
Qts0.36-5%
BL6.2Tm-10%
Vas1.2L-35%
Qes0.44+2%
63%
Similarity
Tang Band
W4-1129E
4"
Xmax1.8mm-18%
Qts0.44+16%
BL5.2Tm-25%
Vas1.7L-7%
Qes0.46+7%
35%
Similarity
Dayton Audio
DS90-8
3"
Xmax2.5mm+14%
Qts0.43+13%
BL4.8Tm-31%
Vas1.3L-29%
Qes0.53+23%
