Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespAccuton C168-6-890 6Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverCeramic series
Accuton

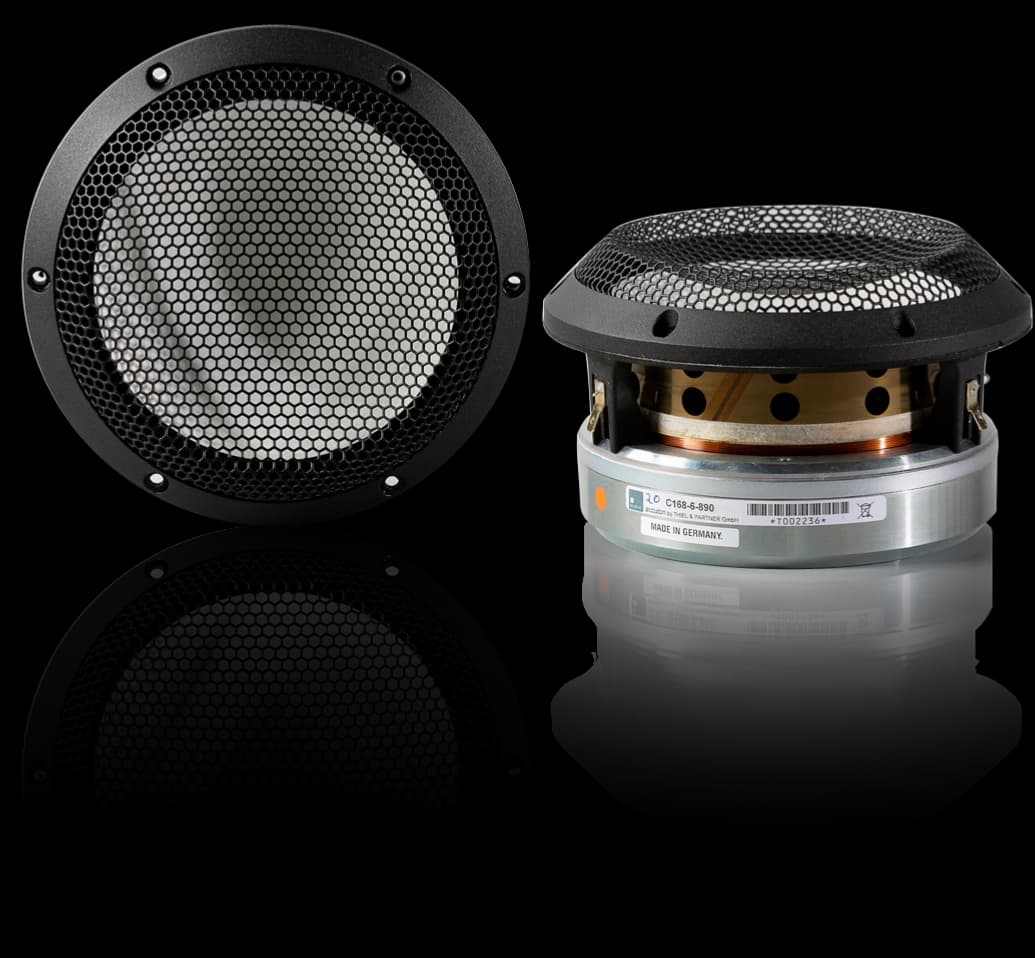

Accuton C168-6-890
Accuton C168-6-890 is a 6.5" 6 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 41Hz, Qts 0.44, Vas 15L, Xmax 5mm, sensitivity 85.3dB, plus 62cm³ Vd and 84 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
6Ω
RMS Power
120W
Sensitivity
85.3dB
87.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
84
Either alignment
Vd
62cm³
T/S Parameters
Valid
Fs41Hz
Qts0.44
Qes0.49
Qms4.4
Vas15.0L
Re5.1Ω
Le0.20mH
BL7.5Tm
Sd123cm²
Mms21g
Xmax5.0mm
SPL85dB
Power120W
Impedance6Ω
F Low40Hz
F High3500Hz
Voice Coil114mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026· 6Ω
Source: inc VAT
£764.63
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

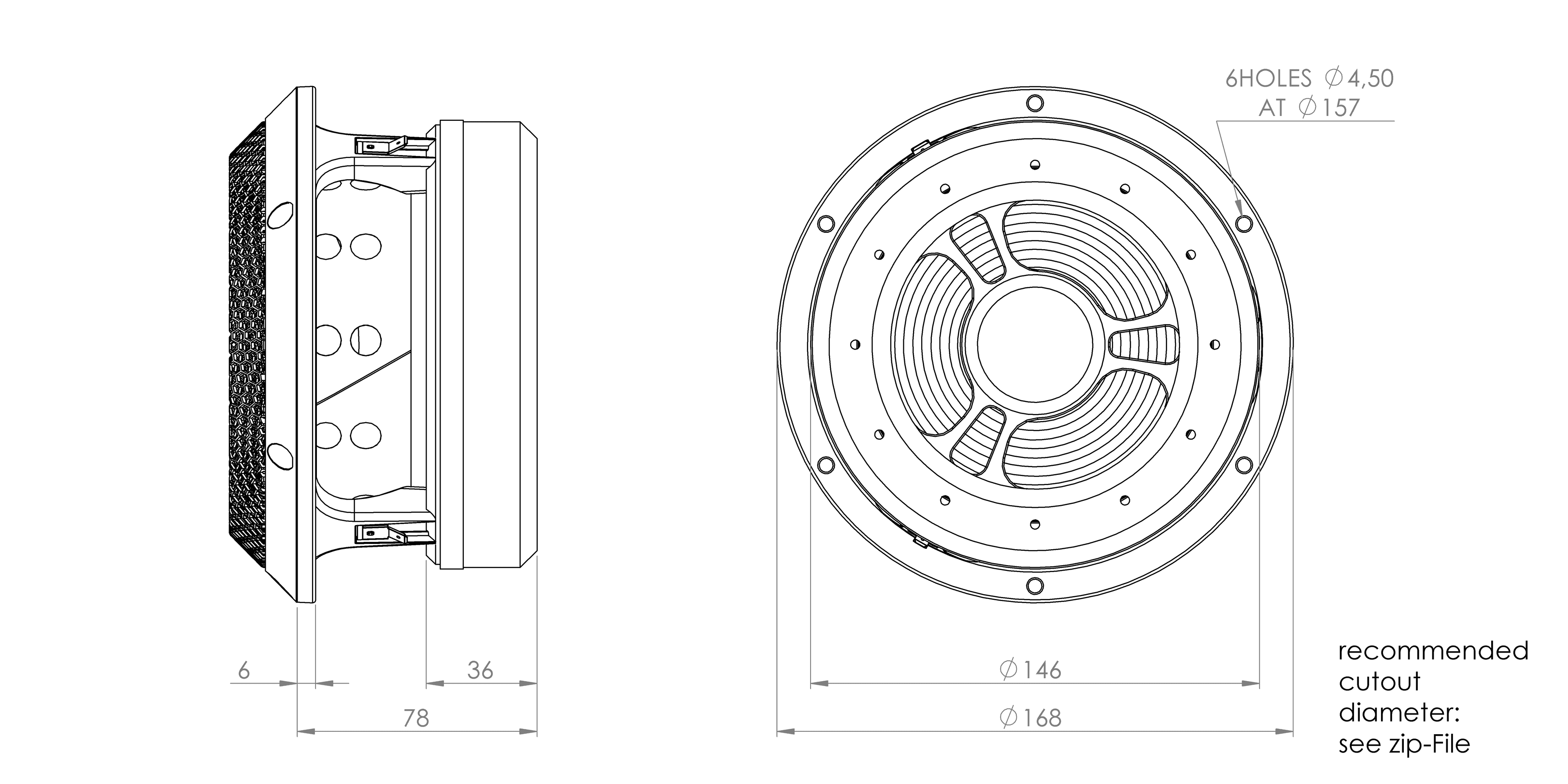

Dimensions & Physical
Diameter168.0mm
Overall Depth78.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Accuton
C168-6-890
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
92%
Similarity
£110.95
Fountek
FW168K
6.5"
Xmax5mm0%
Qts0.43-3%
BL7.9Tm+5%
Vas15.1L+1%
Qes0.52+7%
88%
Similarity

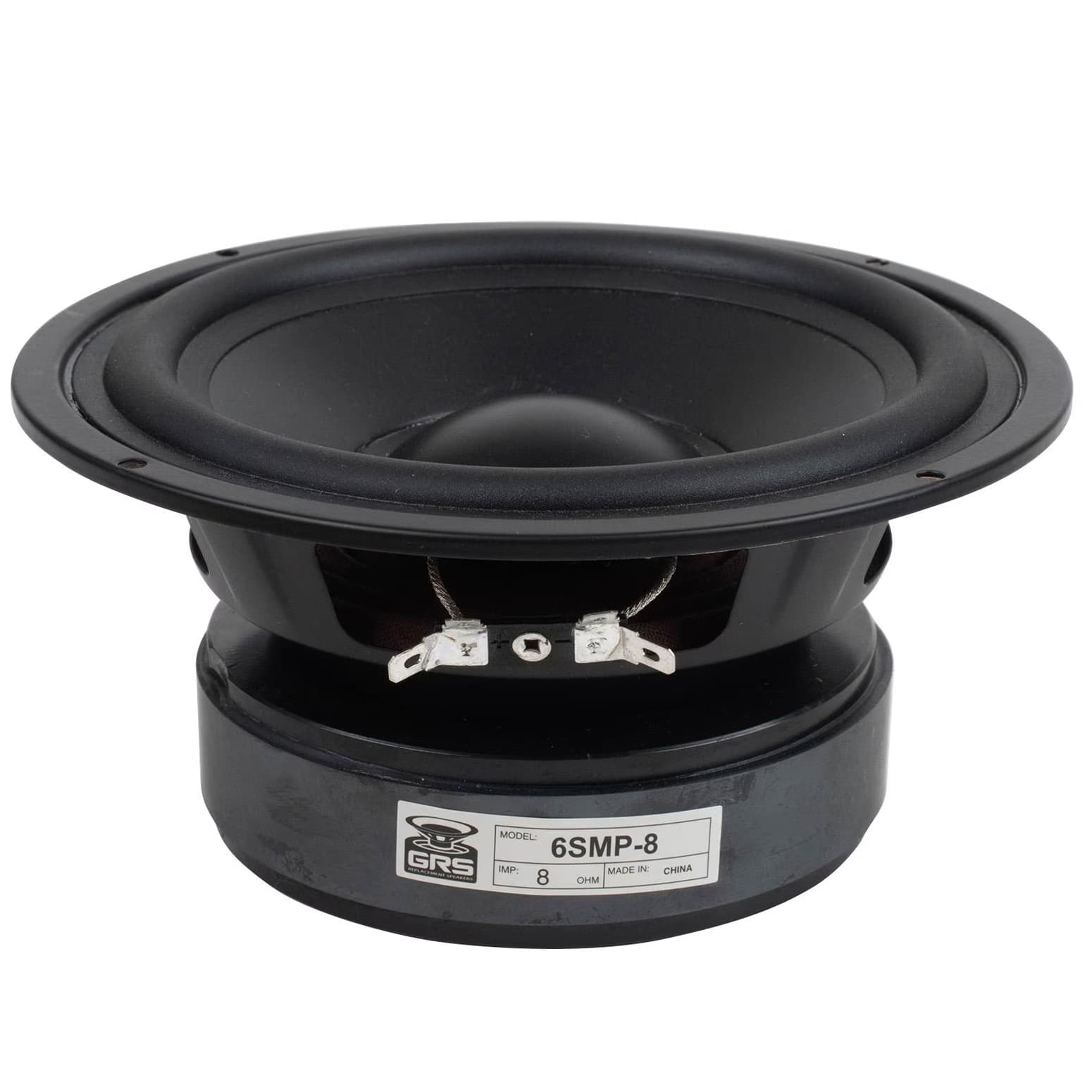

GRS
6SMP-8
6.5"
Xmax5mm0%
Qts0.45+2%
BL8.4Tm+12%
Vas14.5L-3%
Qes0.54+10%
79%
Similarity
HiVi
D6.8B
6.75"
Xmax5.3mm+6%
Qts0.45+2%
BL8.9Tm+19%
Vas13.5L-10%
Qes0.490%
77%
Similarity

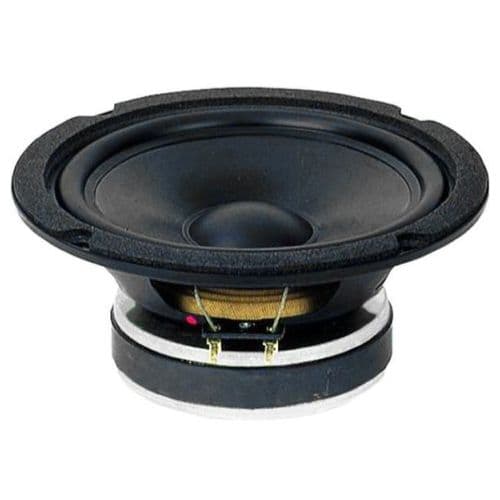

CIARE
HW161N
6.5"
Xmax5mm0%
Qts0.37-16%
BL7.4Tm-1%
Vas19.9L+33%
Qes0.46-6%
75%
Similarity
HiVi
C6.5
6.5"
Xmax4.9mm-2%
Qts0.38-14%
BL9.1Tm+21%
Vas13.3L-11%
Qes0.47-4%
73%
Similarity
HiVi
S6.5
6.5"
Xmax5.8mm+16%
Qts0.42-5%
BL6.4Tm-15%
Vas18.4L+23%
Qes0.47-4%
72%
Similarity
HiVi
F6N
6"
Xmax4.5mm-10%
Qts0.43-2%
BL7.3Tm-3%
Vas19.1L+27%
Qes0.45-8%
72%
Similarity
HiVi
S6.5RMKII
6.5"
Xmax5.8mm+16%
Qts0.48+9%
BL6.4Tm-15%
Vas15.7L+5%
Qes0.55+12%
71%
Similarity
CIARE
CMI160
6.5"
Xmax4.5mm-10%
Qts0.41-7%
BL7.2Tm-4%
Vas7.8L-48%
Qes0.45-8%
71%
Similarity
£30.95
Peerless
SDS-P830657
6.5"
Xmax5.5mm+9%
Qts0.47+7%
BL6.9Tm-8%
Vas20.1L+34%
Qes0.56+15%
71%
Similarity
Beyma
206B30P8
6.5"
Xmax5.5mm+10%
Qts0.5+14%
BL6.8Tm-9%
Vas15.6L+4%
Qes0.6+22%
71%
Similarity
HiVi
E6.5N
6.5"
Xmax4.3mm-15%
Qts0.4-9%
BL7.1Tm-5%
Vas21L+40%
Qes0.51+4%
