Overview
LF Driver5MDN series
B&C
B&C 5MDN38
B&C 5MDN38 is a 5" 16 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 230Hz, Qts 0.48, Vas 0.8L, Xmax 3.5mm, sensitivity 94.4dB, plus 33cm³ Vd and 404 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £83.38.
Size
5"
Impedance
16Ω
RMS Power
100W
Sensitivity
94.4dB
96.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
404
Vented alignment
Vd
33cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
free-air SPL240 ptsp3medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 b2c3318704c2…Medium confidence6,102 selected pixels of 6,102 - Trace datasheet-response-trace-poc/v2
free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 b2c3318704c2…Medium confidence3,298 selected pixels of 3,298

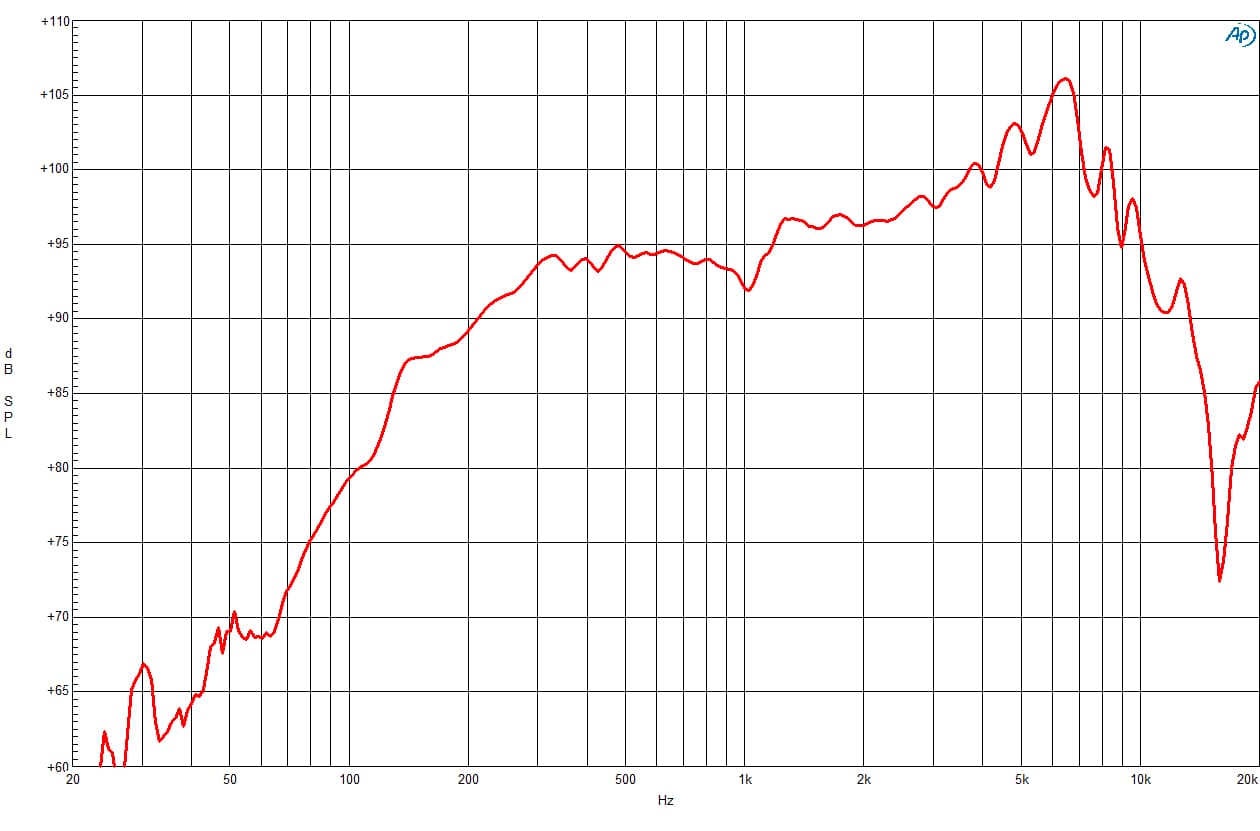

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs230Hz
Qts0.48
Qes0.57
Qms3.0
Vas0.8L
Re11.7Ω
Le0.70mH
BL15.0Tm
Sd95cm²
Mms8g
Xmax3.5mm
SPL94dB
Power100W
Power Nominal100W
Impedance16Ω
Min Impedance14.5Ω
F Low230Hz
F High10000Hz
Voice Coil38mm
Flux Density1.25T
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorsjpleisure
Updated 7 Aug 2026· 16Ω
Source: ex VAT · 20%
£93.13
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 16Ω
Source: ex VAT · 20%
£93.13
inc VAT
In stock
Best current price
Updated 11 Sept 2026
bluearan
£83.38
Avg £89.88£6.50 below avg (-7.2%)
inc VAT·4 in stock·5-7 weeks
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.9kg
Diameter155.0mm
Overall Depth75.0mm
Cutout Diameter122.0mm
Bolt Circle Diameter142.0mm
Additional Manufacturer Specs
Bl15 Tm
Fs230 Hz
Le0.7 mH
Re11.7 Ω
Sd95 cm² (14.7 in²)
Ebp404 Hz
Mms8 g
Qes0.57
Qms3
Qts0.48
Vas0.8 dm³ (0.03 ft³)
η01.7 %
ConeRCK005MDN3816
Xmax3.5 mm
Xvar2.5 mm
SpiderSingle
Cone ShapeExponential
Pole DesignStraight Pole
Winding Depth10 mm (0.39 in)
Surround ShapeDouble Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Ring
Nominal Diameter127 mm (5 in)
Winding MaterialAluminium
Magnetic Gap Depth6 mm (0.24 in)
Bolt Circle Diameter142 mm (5.6 in)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter122 mm (4.8 in)
Flange And Gasket Thickness9 mm (0.35 in)
Air Volume Occupied By Driver0.35 dm³ (0.01 ft³)
