LF Driver5FG series
B&C
B&C 5FG44
B&C 5FG44 is a 5" 16 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 70Hz, Qts 0.39, Vas 5.1L, Xmax 3mm, sensitivity 88.4dB, plus 28cm³ Vd and 175 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £38.00.
Size
5"
Impedance
16Ω
RMS Power
100W
Sensitivity
88.4dB
90.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
175
Vented alignment
Vd
28cm³

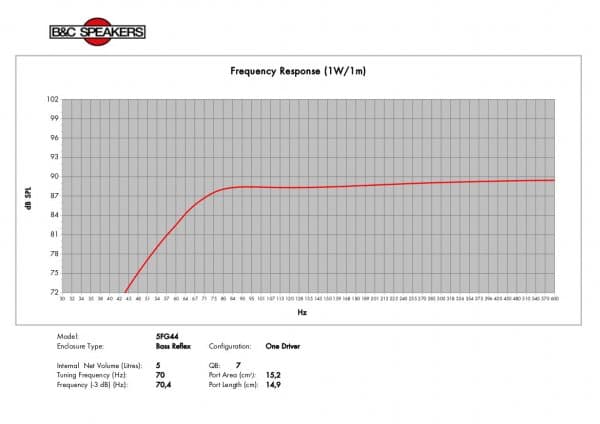

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs70Hz
Qts0.39
Qes0.40
Qms10.5
Vas5.1L
Re11.1Ω
Le0.80mH
BL11.6Tm
Sd92cm²
Mms12g
Xmax3.0mm
SPL88dB
Power100W
Power Nominal100W
Impedance16Ω
Min Impedance12.7Ω
F Low70Hz
F High6000Hz
Voice Coil44mm
Flux Density1.10T
Pricing & availability
Price definitionsPrice movement
Best current price
£38.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
Diameter155.0mm
Overall Depth77.0mm
Cutout Diameter122.0mm
Bolt Circle Diameter142.0mm
Additional Manufacturer Specs
Bl11.6 Tm
Fs70 Hz
Le0.8 mH
Re11.1 Ω
Sd92 cm² (14.26 in²)
Ebp175 Hz
Mms12 g
Qes0.4
Qms10.5
Qts0.39
Vas5.1 dm³ (0.18 ft³)
η00.42 %
ConeRCK005FG4416
Xmax3 mm
Xvar5 mm
SpiderSingle
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth9 mm (0.35 in)
Surround ShapeRoll
Former MaterialKapton
Magnet MaterialFerrite
Nominal Diameter127 mm (5 in)
Winding MaterialCopper
Magnetic Gap Depth6 mm (0.25 in)
Recommended Tuning70 Hz
Bolt Circle Diameter142 mm (5.6 in)
Recommended Enclosure5 dm³ (0.17 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter122 mm (4.8 in)
Flange And Gasket Thickness9 mm (0.35 in)
Air Volume Occupied By Driver0.5 dm³ (0.02 ft³)
