Overview
LF Driver
Kartesian

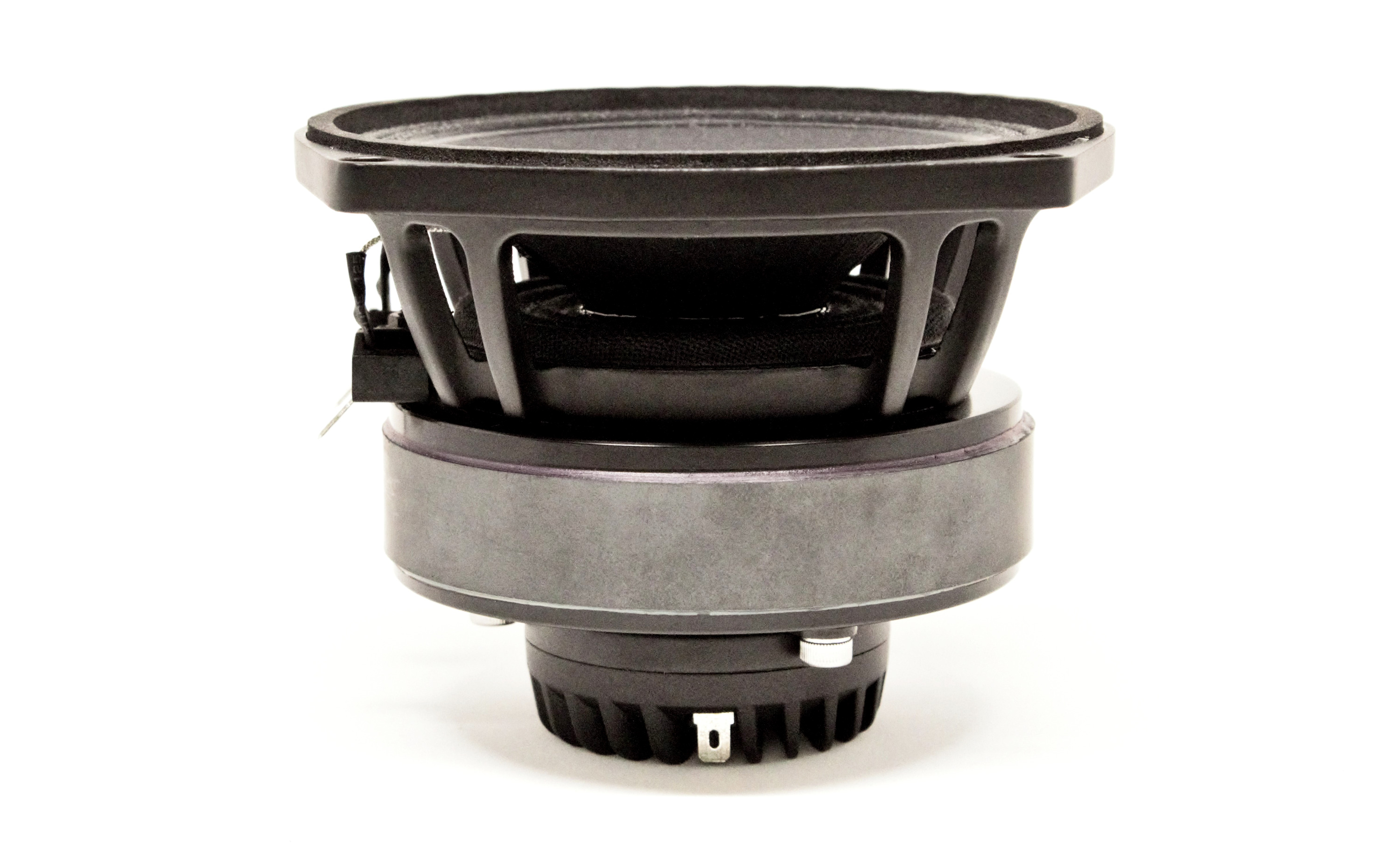

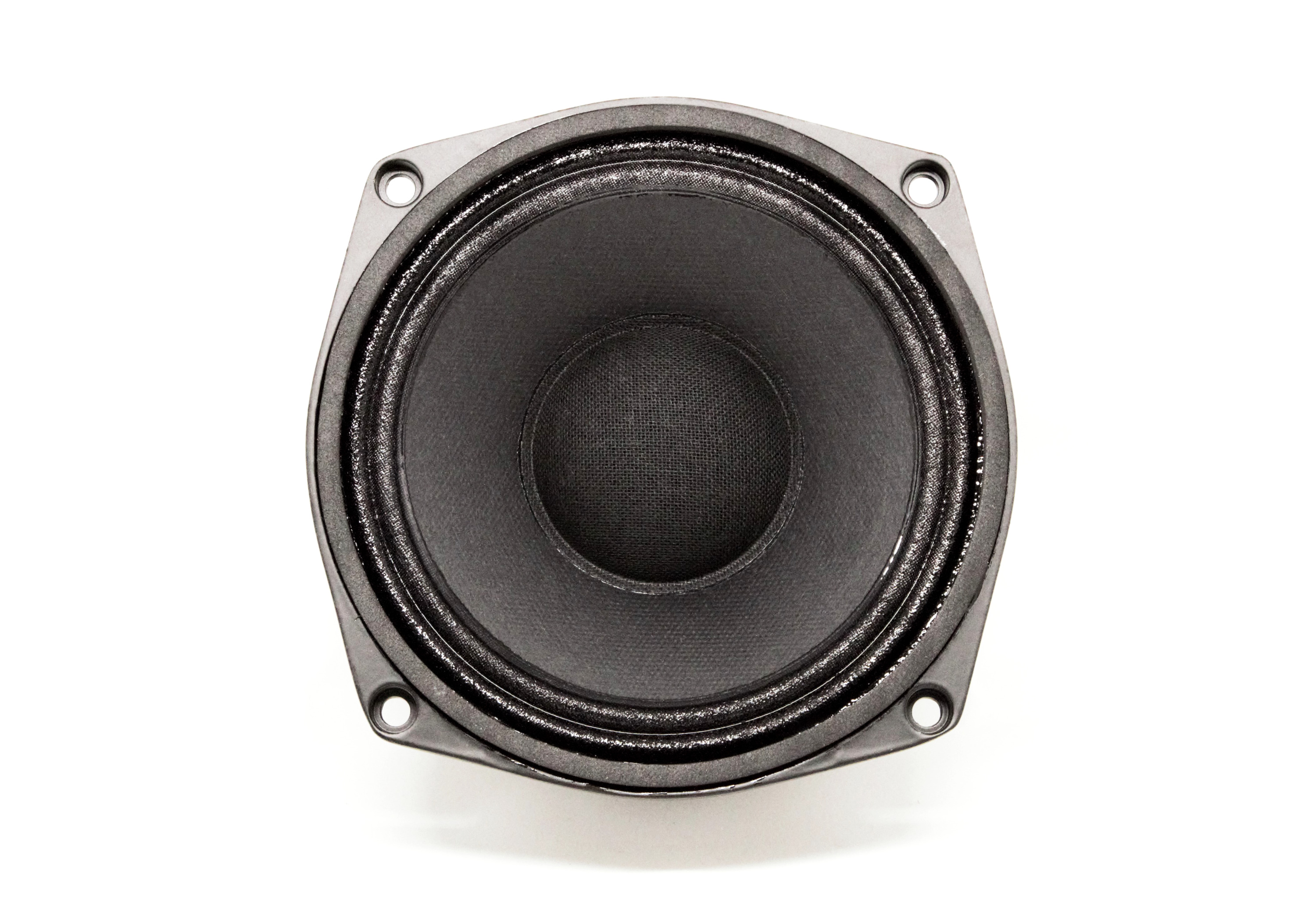

Kartesian Cox135_vPA-S
Kartesian Cox135_vPA-S is a 5.25" 8 ohm LF driver. The validated T/S data includes Fs 158Hz, Qts 0.59, Vas 1.4L, Xmax 3mm, sensitivity 91dB, plus 29cm³ Vd. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5.25"
Impedance
8Ω
Sensitivity
91.0dB
Vd
29cm³
Overall Parameters
Valid
Fs158Hz
Qts0.59
Qms2.4
Vas1.4L
Re6.5Ω
BL8.8Tm
Sd95cm²
Mms9g
Xmax3.0mm
SPL91dB
Impedance8Ω
F Low160Hz
F High20000Hz
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Qes, Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Qes, Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter135.0mm
Driver Components
LFPrimary
5.31496062992126"Fs158 Hz
Qts0.59
Qms2.4
Vas1.4 L
Re6.5 Ω
BL8.8 Tm
Sd95 cm²
Mms9 g
Xmax3.0 mm
SPL91 dB
Impedance8 Ω
F Low160 Hz
F High20000 Hz
Section dimensions
Diameter135.0 mm
