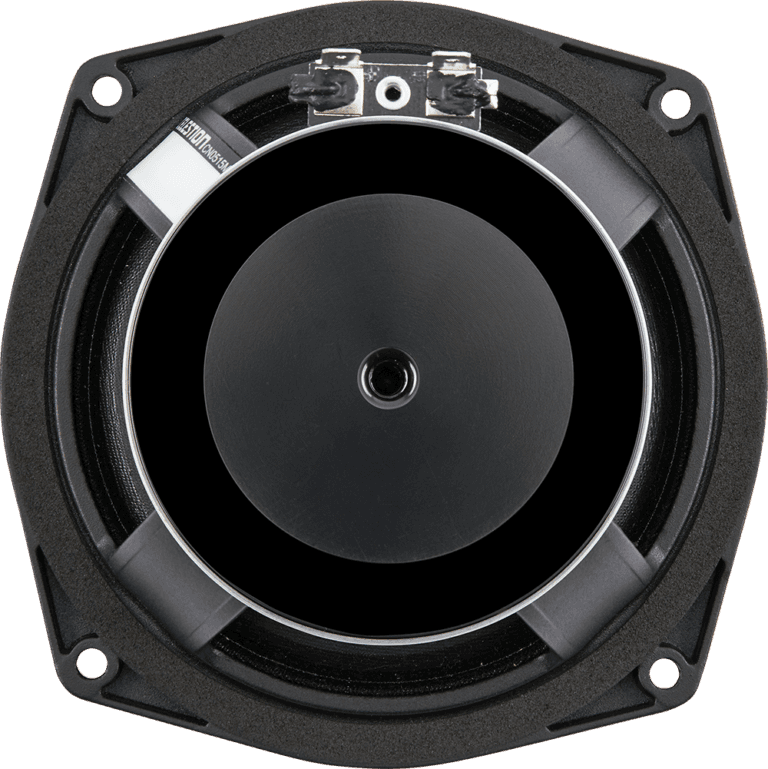

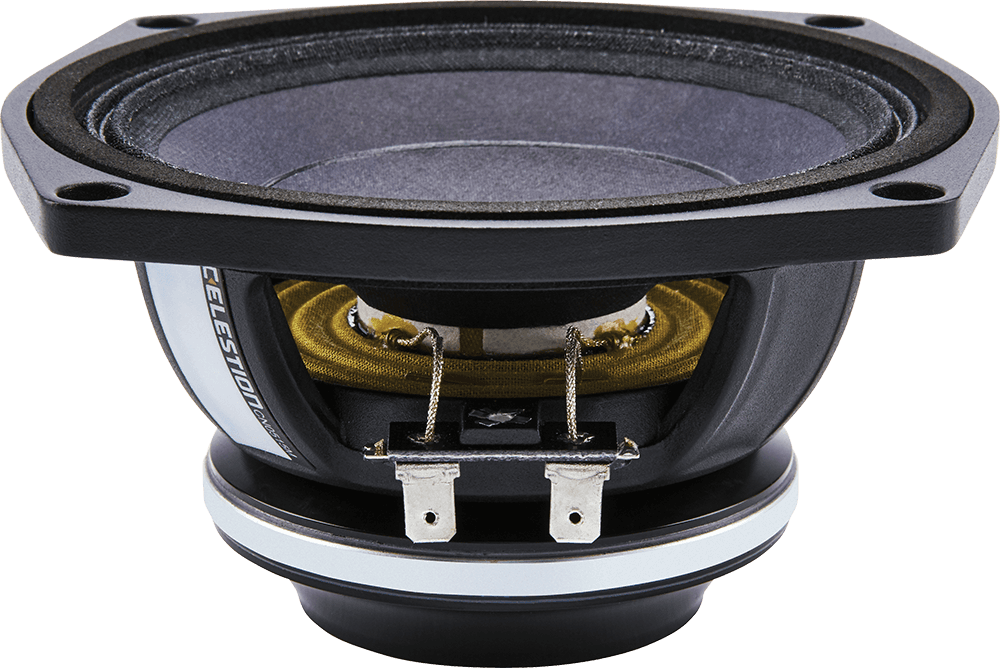

Celestion CN0515M
Celestion CN0515M is a 5" 16 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 189Hz, Qts 0.28, Vas 0.7L, Xmax 3.3mm, sensitivity 93.4dB, plus 26cm³ Vd and 561 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
16Ω
RMS Power
100W
Sensitivity
93.4dB
98.0dBmanufacturer; using T/S-derived value (4.6dB delta).
EBP
561
Vented alignment
Vd
26cm³
Datasheet traces

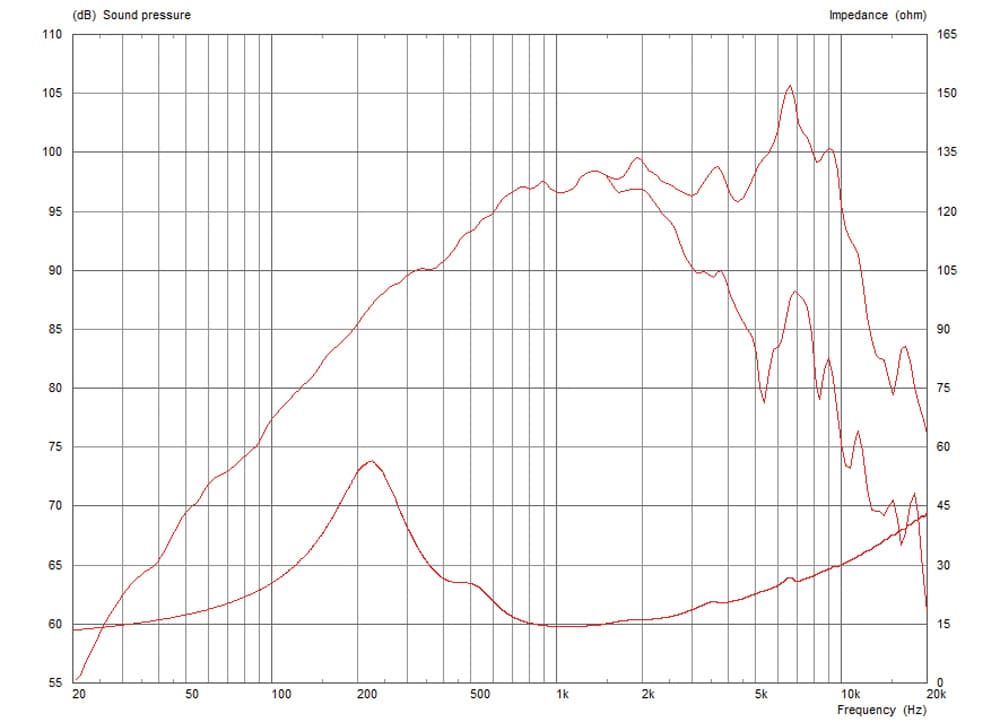

Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence183 selected pixels of 431
T/S Parameters
Valid
Fs189Hz
Qts0.28
Qes0.34
Qms1.5
Vas0.7L
Re11.5Ω
BL19.2Tm
Sd79cm²
Mms9g
Xmax3.3mm
SPL93dB
Power100W
Impedance16Ω
Voice Coil38mm
