CIARE CW170Z 4Ω
LF DriverMedia
Overview
LF DriverCW series
CIARE
CIARE CW170Z
CIARE CW170Z is a 6.5" 4 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 74Hz, Qts 1.23, Vas 13.1L, Xmax 2.8mm, sensitivity 86.4dB, plus 37cm³ Vd and 38 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
RMS Power
120W
Sensitivity
86.4dB
89.0dBmanufacturer; using T/S-derived value (2.6dB delta).
EBP
38
Sealed alignment
Vd
37cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,575 selected pixels of 1,820
T/S Parameters
Valid
Fs74Hz
Qts1.23
Qes1.93
Qms3.4
Vas13.1L
Re3.5Ω
BL2.7Tm
Sd133cm²
Mms9g
Xmax2.8mm
SPL86dB
Power120W
Power Nominal50W
Impedance4Ω
F Low50Hz
F High50Hz
Voice Coil25mm
Pricing & availability
Price definitionsVendor offers
1 vendorleanaudio
Updated 11 Sept 2026· 4Ω
Source: inc VAT · 20%
£19.04
inc VAT
Back order
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.7kg
Diameter165.0mm
Overall Depth66.0mm
Cutout Diameter142.0mm
Bolt Circle Diameter157.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CW170Z
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
60%
Similarity
Visaton
FR 16 WP
6.5"
Xmax3mm+7%
Qts1.02-17%
BL3.3Tm+22%
Vas10L-24%
Qes1.55-20%
60%
Similarity

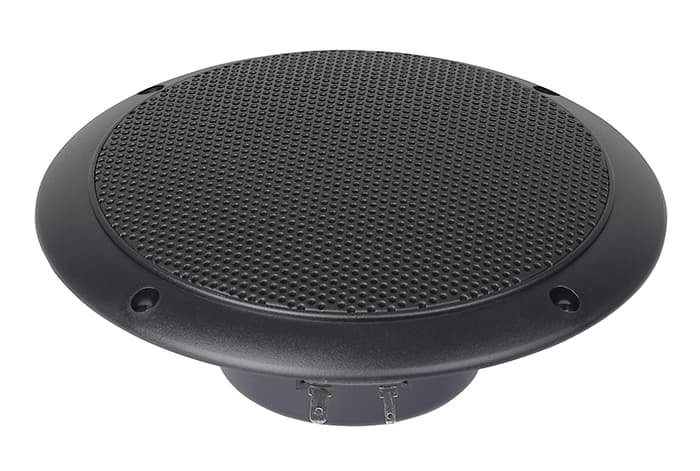

Visaton
FR 16 WP - 4 OHM
6.5"
Xmax3mm+7%
Qts1.02-17%
BL3.3Tm+22%
Vas10L-24%
Qes1.55-20%
