Kartesian Cox165_vPA 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Kartesian

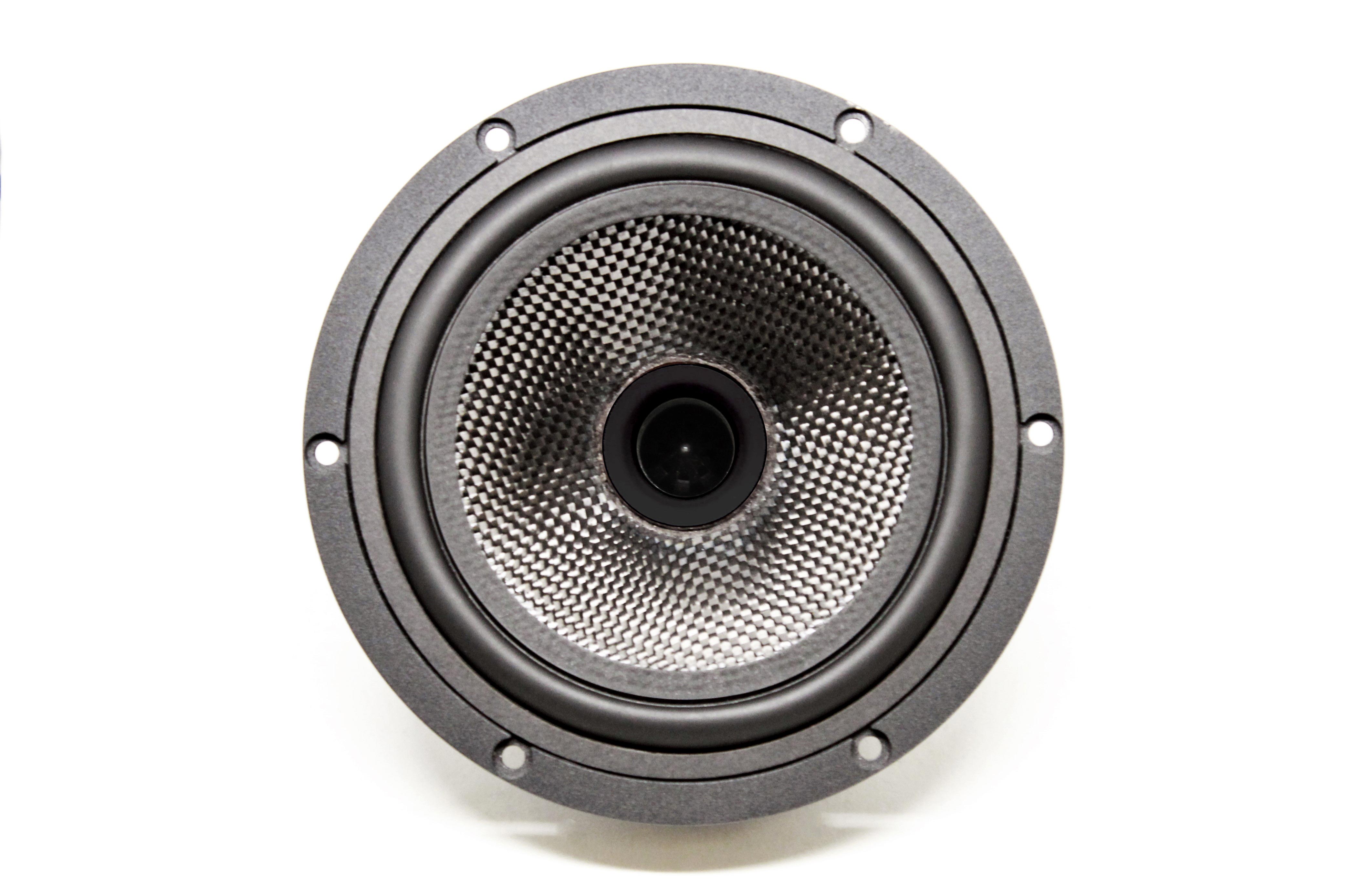

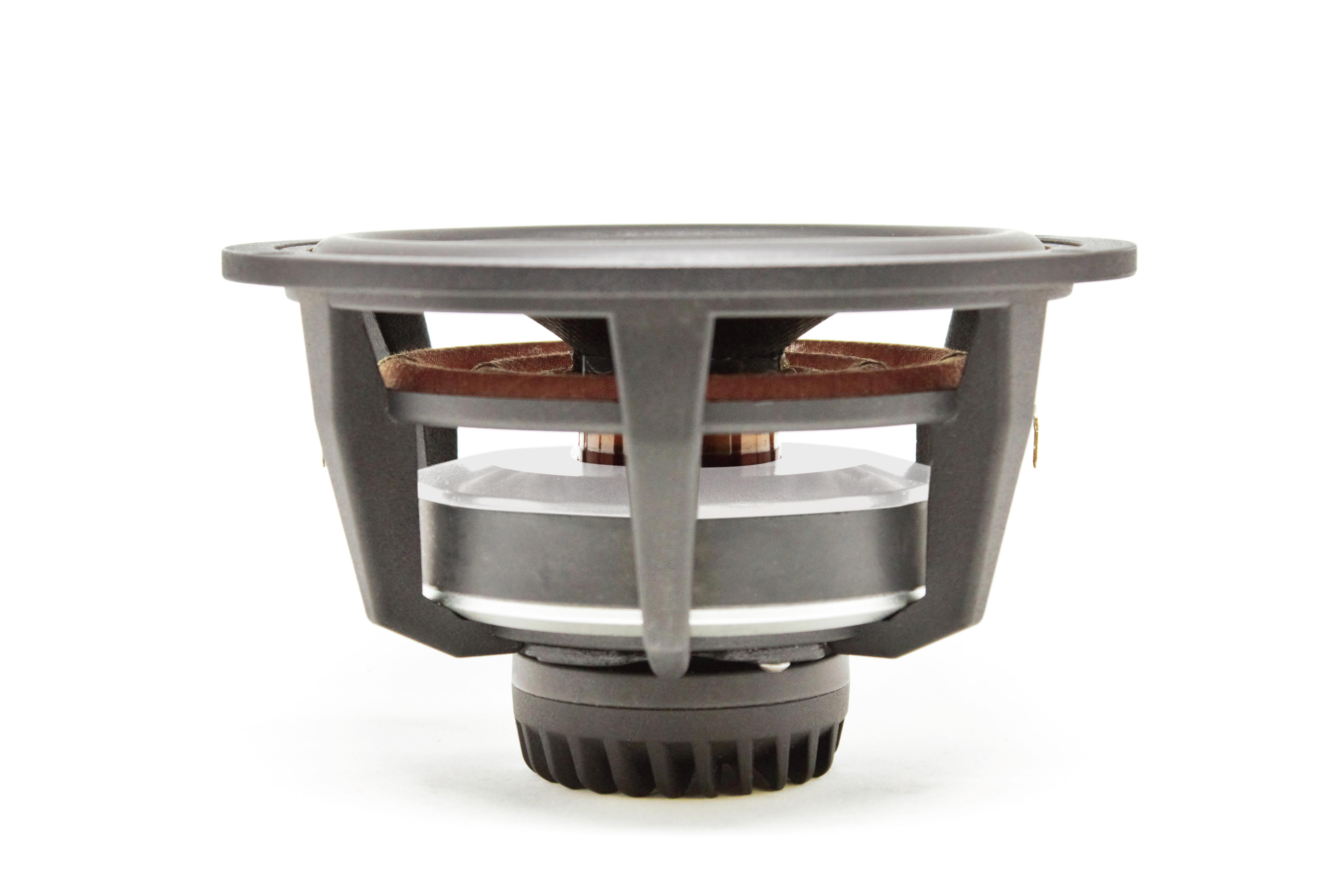

Kartesian Cox165_vPA
Kartesian Cox165_vPA is a 6.5" 8 ohm LF driver. The validated T/S data includes Fs 61Hz, Qts 0.26, Vas 14.1L, Xmax 3mm, sensitivity 93.5dB, plus 35cm³ Vd. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Partial source evidence
Automated T/S checks passed, but some material low-frequency parameters are not published for this record.
Material fields not published: Qes
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
Size
6.5"
Impedance
8Ω
Sensitivity
93.5dB
Vd
35cm³
Overall Parameters
Valid
Fs61Hz
Qts0.26
Qms16.4
Vas14.1L
Re7.0Ω
BL9.9Tm
Sd118cm²
Mms10g
Xmax3.0mm
SPL94dB
Impedance8Ω
F Low65Hz
F High20000Hz
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Qes, Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Qes, Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter165.0mm
Driver Components
LFPrimary
6.496062992125984"Fs61 Hz
Qts0.26
Qms16.4
Vas14.1 L
Re7.0 Ω
BL9.9 Tm
Sd118 cm²
Mms10 g
Xmax3.0 mm
SPL94 dB
Impedance8 Ω
F Low65 Hz
F High20000 Hz
Section dimensions
Diameter165.0 mm
