Overview
LF DriverFR series
Visaton

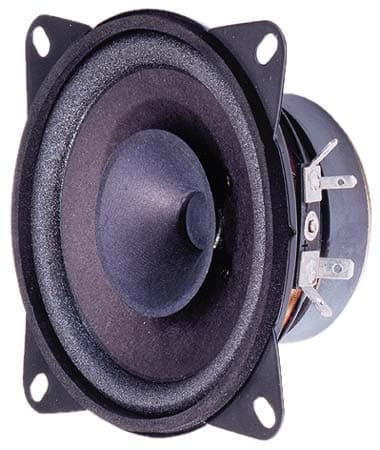

Visaton FR 10 HM
Rated 5.0 out of 51 rating at 1 shopVisaton FR 10 HM is a 4" 8 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 120Hz, Qts 1.44, Vas 2L, Xmax 2mm, sensitivity 84.6dB, plus 10cm³ Vd and 63 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
8Ω
RMS Power
20W
Sensitivity
84.6dB
86.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
63
Either alignment
Vd
10cm³
T/S Parameters
Valid
Fs120Hz
Qts1.44
Qes1.91
Qms5.9
Vas2.0L
Re7.2Ω
Le0.20mH
BL2.9Tm
Sd50cm²
Mms3g
Xmax2.0mm
SPL85dB
Power20W
Impedance8Ω
F Low95Hz
F High22000Hz
Voice Coil14mm
Flux Density1.10T
Pricing & availability
Price definitionsVendor offers
1 vendorSoundImports
Updated 28 Sept 2026· 8Ω
Source: inc VAT
£8.56
inc VAT
Back order
Reviews
How ratings workRated 5.0 out of 5from 1 rating at 1 shop
- Read reviews on SoundImportsSoundImportsRated 5.0 out of 5 · 1 rating · Checked 28 Sep 2026
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.3kg
Diameter100.0mm
Cutout Diameter94.0mm
