Overview
LF Driver
Tang Band

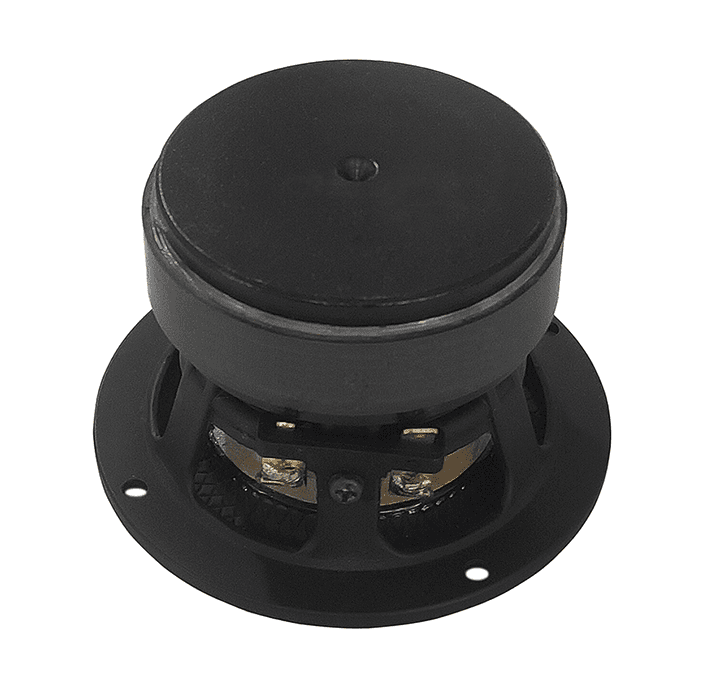

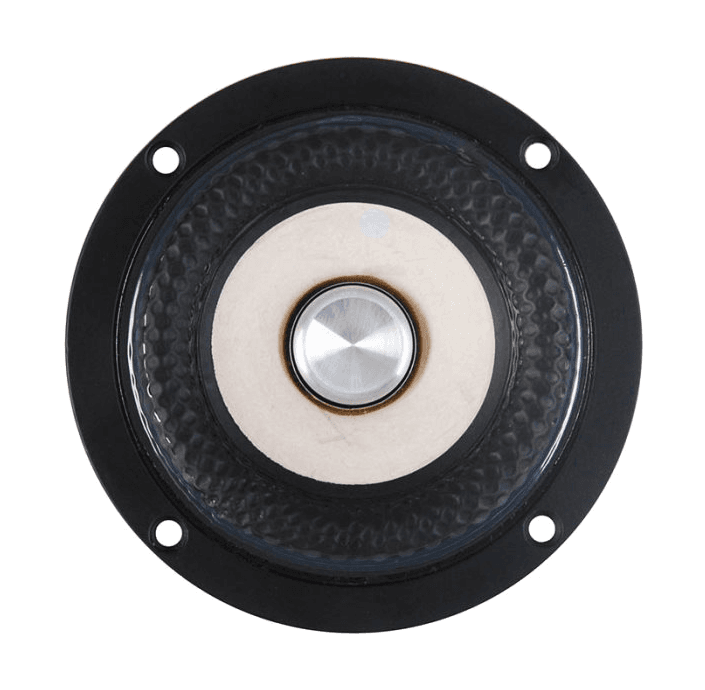

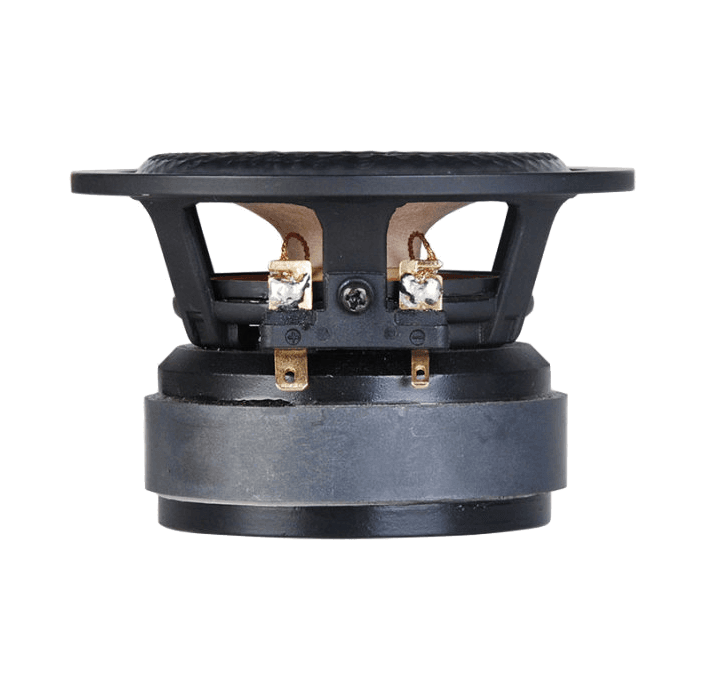

Tang Band W3-2141
Tang Band W3-2141 is a 3" 8 ohm LF driver rated at 12W RMS. The validated T/S data includes Fs 75Hz, Qts 0.39, Vas 3.3L, Xmax 1.6mm, sensitivity 86.8dB, plus 5cm³ Vd and 163 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
8Ω
RMS Power
12W
Sensitivity
86.8dB
EBP
163
Vented alignment
Vd
5cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,605 selected pixels of 2,006 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,081 selected pixels of 3,081
T/S Parameters
Valid
Fs75Hz
Qts0.39
Qes0.46
Qms2.5
Vas3.3L
Re6.5Ω
Le0.02mH
BL3.6Tm
Sd32cm²
Mms2g
Xmax1.6mm
SPL87dB
Power12W
Impedance8Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
