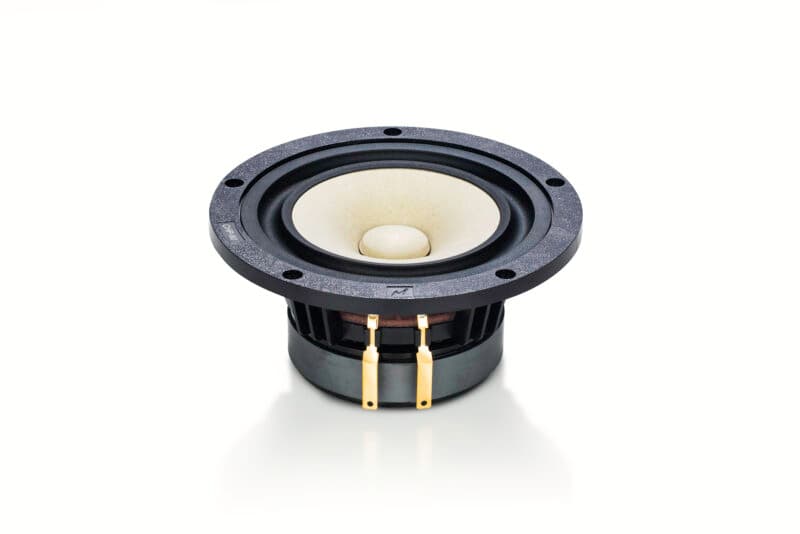

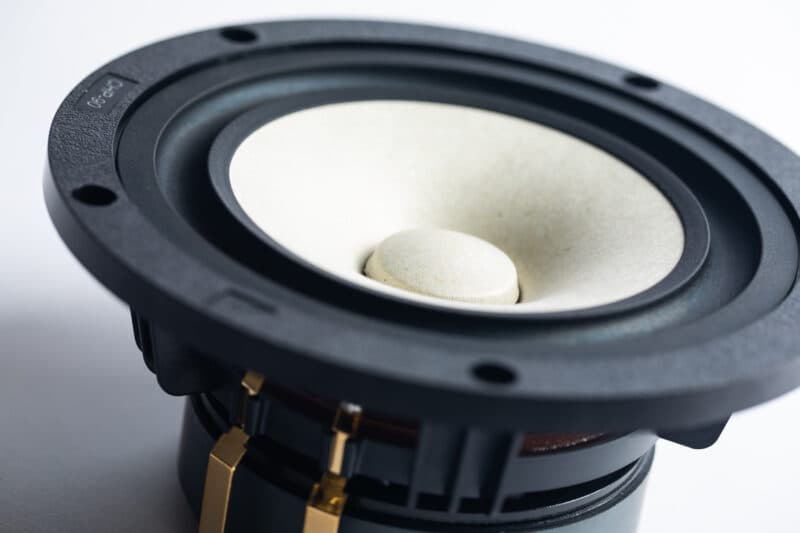

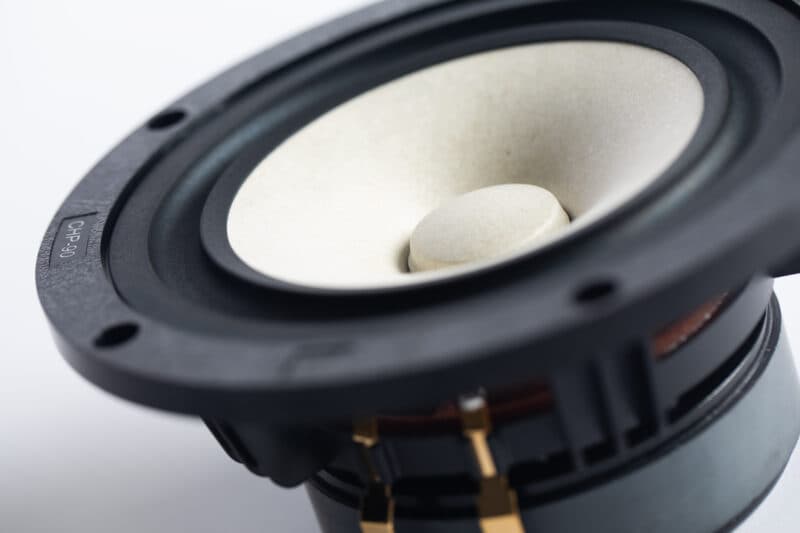

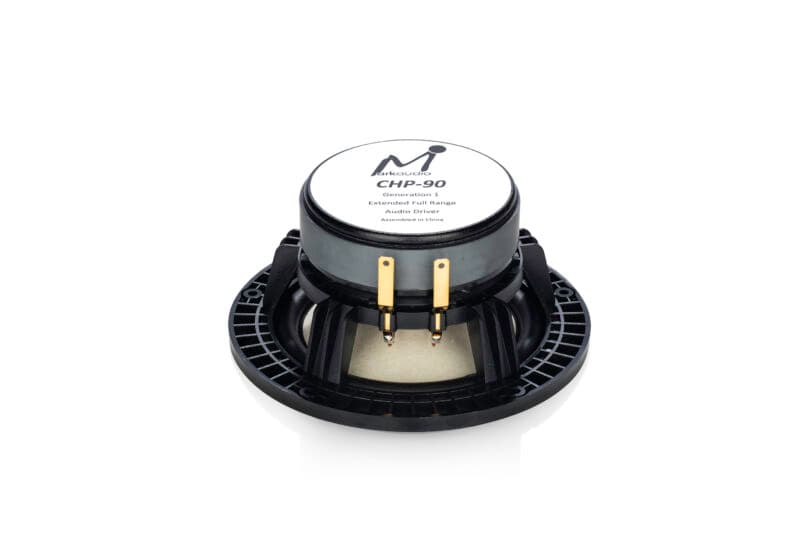

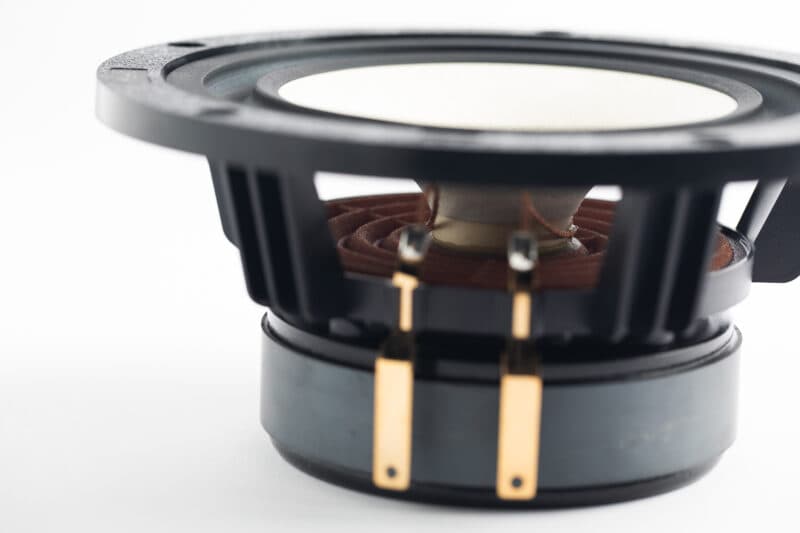

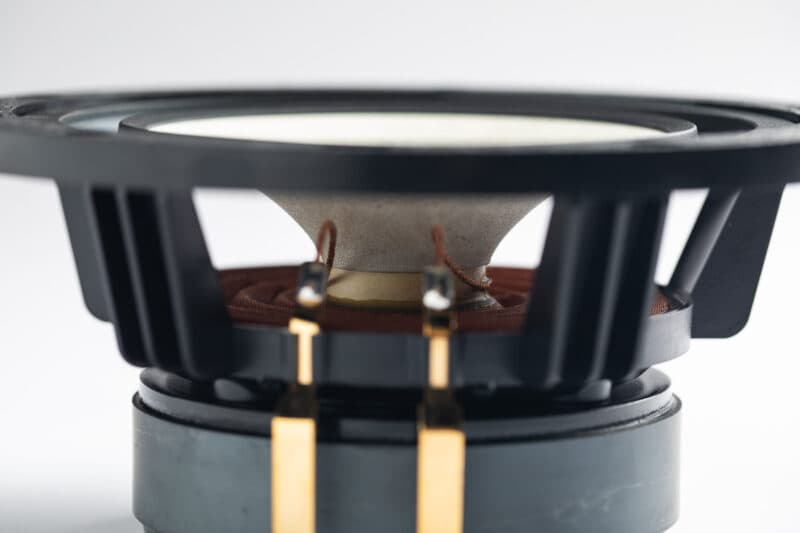

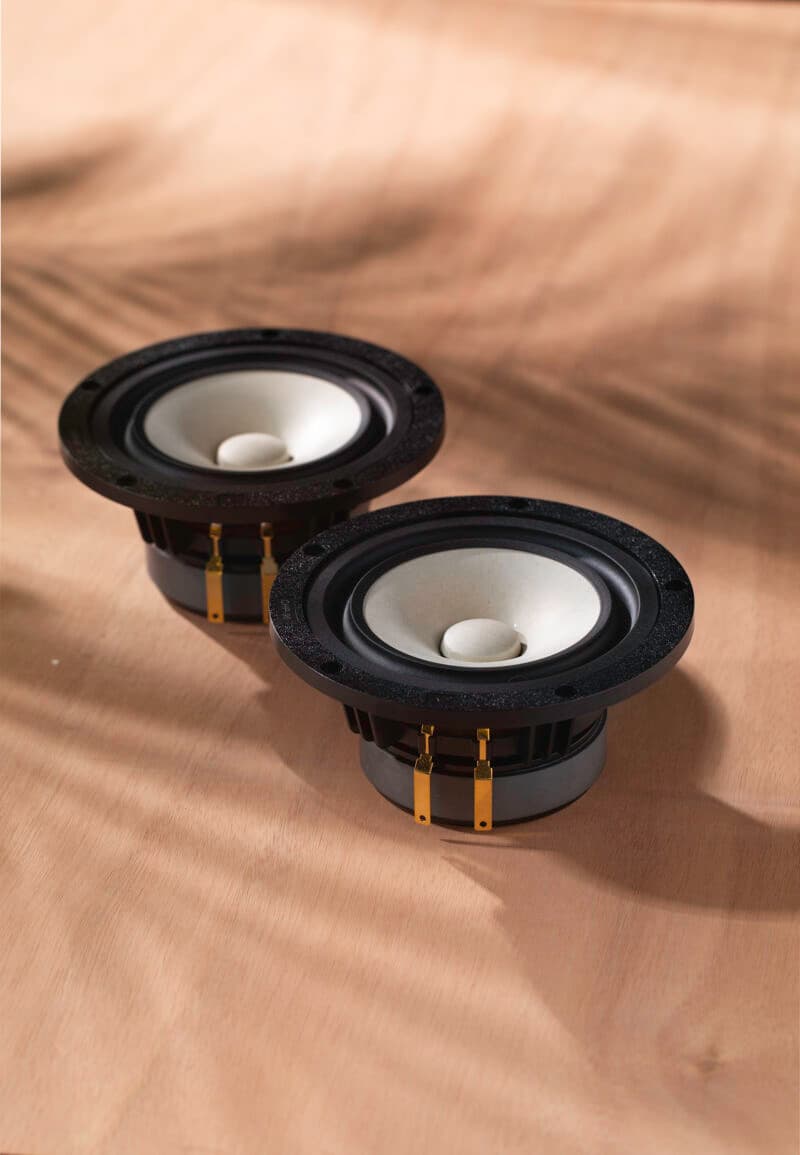

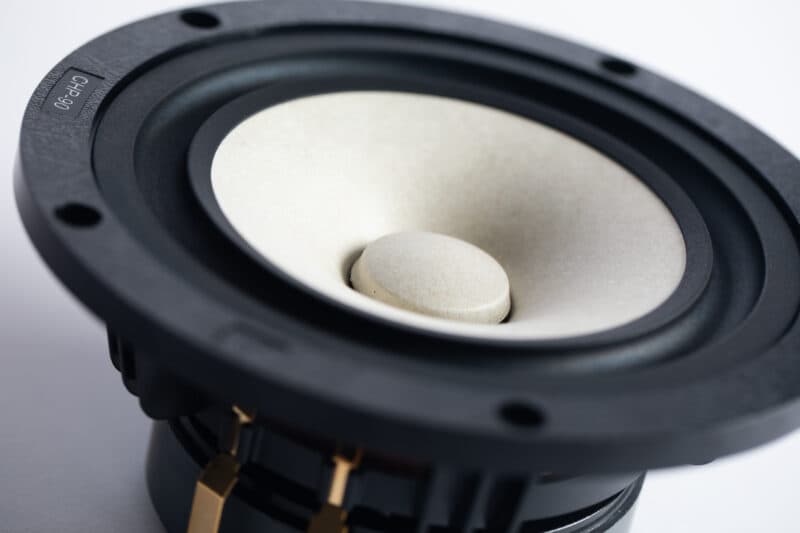

Markaudio CHP-90 MICA 8Ω
8 Ω
No current price
- Fs
- 49Hz
- Xmax
- 7mm
- SPL
- 89dB
- Pe
- 40W
- BL
- 4.8T·m
- Vd
- 60cm³
- Qts
- 0.36
- Vas
- 20L
Markaudio CHP-90 MICA is a 3.5-inch 8 ohm LF driver rated at 40 W RMS. The validated T/S data includes Fs 49 Hz, Qts 0.36, Vas 20.1 L, Xmax 7 mm, sensitivity 89.2 dB, plus 60 cm³ Vd and 111 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 49Hz
- Qts
- 0.36
- Qes
- 0.44
- Qms
- 2.2
- Vas
- 20.1L
- Re
- 6.2Ω
- Le
- 0.26mH
Motor and cone
- BL
- 4.8T·m
- Sd
- 85cm²
- Mms
- 5g
- Xmax
- 7mm
- Vd †
- 60cm³
Power and response
- Sensitivity †
- 89.2dB
- Manufacturer sensitivity
- 89.2dB
- Power
- 40W
- Impedance
- 8Ω
- EBP †
- 111 · Leans vented
Size and mounting
- Weight
- 2.6kg
Other published values
- Cms
- 1.99mm/N
- Rms
- 0.75kg/s
† Calculated by bits from the published values
What this validation status means
Everything else Markaudio lists
LF · Primary · 3.543307086614174″
- BL
- 4.8T·m
- Fs
- 49Hz
- Le
- 0.26mH
- Re
- 6.2Ω
- Sd
- 85cm²
- Cms
- 1.99mm/N
- Mms
- 5g
- Qes
- 0.44
- Qms
- 2.2
- Qts
- 0.36
- Rms
- 0.75kg/s
- SPL
- 89.2dB
- Vas
- 20.1L
- Xmax
- 7mm
- Power
- 40W
- Impedance
- 8Ω
- Sensitivity
- 89.2dB
- Calculated sensitivity †
- 89.2dB
- Manufacturer sensitivity
- 89.2dB
- Weight
- 2.6kg
02
Compare
Same-size drivers, compared with the CHP-90 MICA. Clear differences are green when better and red when worse.
This driverCHP-90 MICA
Best price
–
Fs
49 Hz
Qts
0.36
Vas
20.1 L
BL
4.8 T·m
Xmax
7 mm
Sensitivity
89.2 dB
Power
40 W
Dayton AudioDSA90-8
£20.14Fs67 Hz +37%, worse
Qts0.37 –
Vas2.3 L −89%, better
BL4.6 T·m −5%
Xmax2.5 mm −64%, worse
Sensitivity83.8 dB −5.4, worse
PeerlessSLS-85S25CP04-04
£24.97Fs73 Hz +50%, worse
Qts0.36 –
Vas1.4 L −93%, better
BL4.3 T·m −11%, worse
Xmax6.5 mm −7%
Sensitivity83.6 dB −5.6, worse
MonacorSP-100/8
£31.02Fs61 Hz +26%, worse
Qts0.37 –
Vas4.7 L −77%, better
BL5.5 T·m +14%, better
Xmax2.5 mm −64%, worse
Sensitivity85.9 dB −3.3, worse
Tang BandW3-1231SN
£45.86Fs100 Hz +106%, worse
Qts0.34 −6%
Vas1.4 L −93%, better
BL4.4 T·m −9%
Xmax1.3 mm −82%, worse
Sensitivity87.2 dB −2, worse
WavecorWF118WA07
£47.02Fs56 Hz +15%, worse
Qts0.36 –
Vas4.9 L −76%, better
BL4.5 T·m −7%
Xmax4 mm −43%, worse
Sensitivity85.6 dB −3.6, worse
SB AcousticsSB12NRX25-8
£51.66Fs57 Hz +17%, worse
Qts0.37 –
Vas5.3 L −74%, better
BL5.4 T·m +11%, better
Xmax5 mm −29%, worse
Sensitivity85.8 dB −3.4, worse
Tang BandW4-1320SIF
£57.53Fs75 Hz +55%, worse
Qts0.36 –
Vas5.2 L −74%, better
BL5.3 T·m +10%
Xmax3 mm −57%, worse
Sensitivity89.2 dB –
SB AcousticsSB12CACS25-8
£58.31Fs51 Hz +5%
Qts0.37 –
Vas6.5 L −68%, better
BL5.2 T·m +7%
Xmax5 mm −29%, worse
Sensitivity85.4 dB −3.8, worse

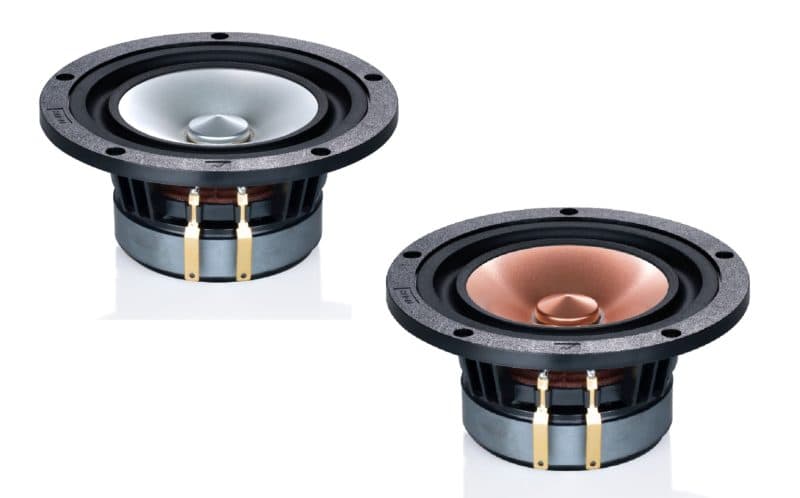

MarkaudioCHR-90
