Markaudio CHR-90 8 Ohm woofer specs & UK prices | bits

Markaudio CHR-90 8Ω

LF Driver

WatchWatch price SimSimulate

Media

Markaudio CHR-90 3.543307086614174 inch 8 ohm loudspeaker driver view 1

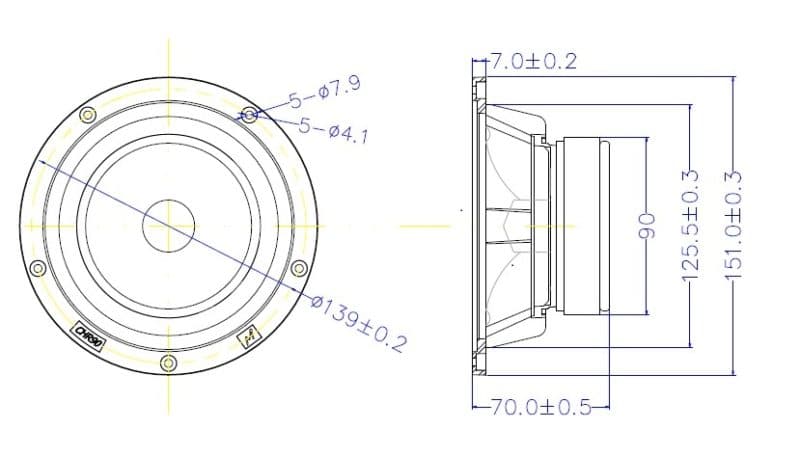

Markaudio CHR-90 3.543307086614174 inch 8 ohm loudspeaker driver view 2

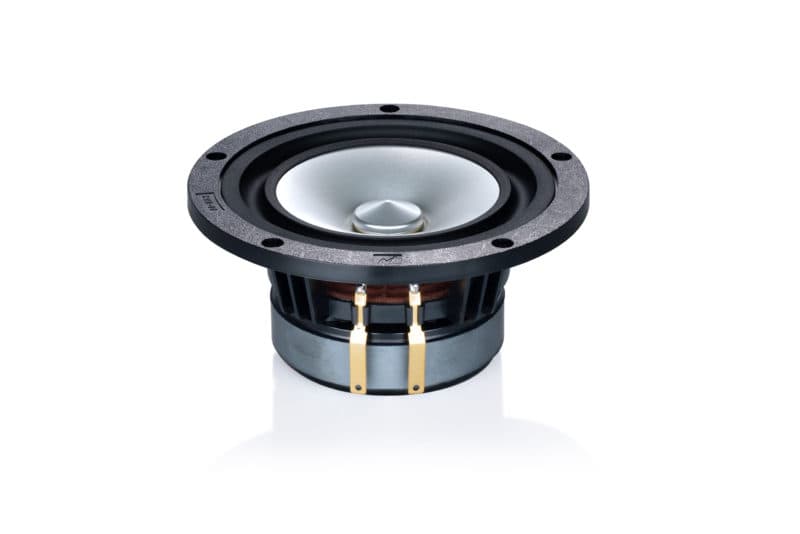

Markaudio CHR-90 3.543307086614174 inch 8 ohm loudspeaker driver view 3

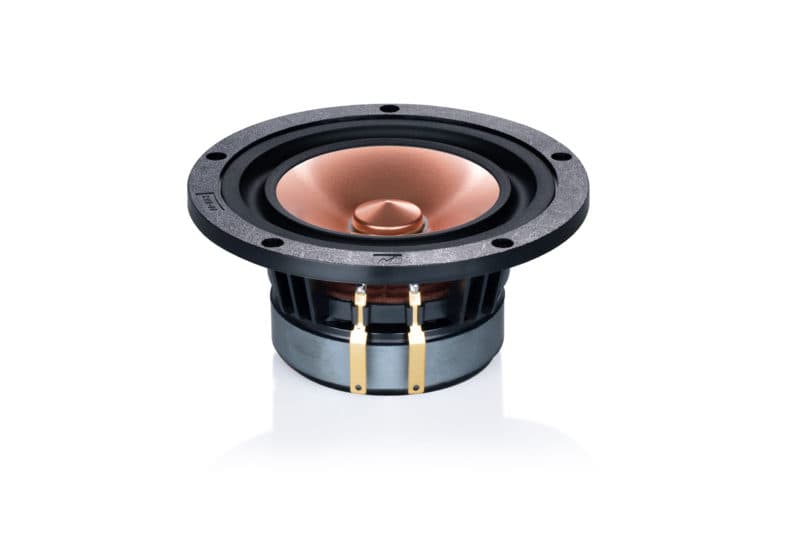

Markaudio CHR-90 3.543307086614174 inch 8 ohm loudspeaker driver view 4

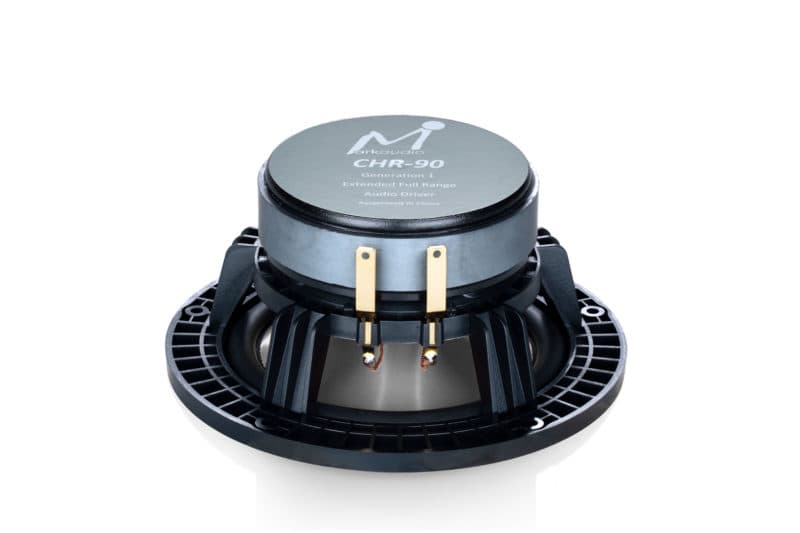

Markaudio CHR-90 3.543307086614174 inch 8 ohm loudspeaker driver view 5

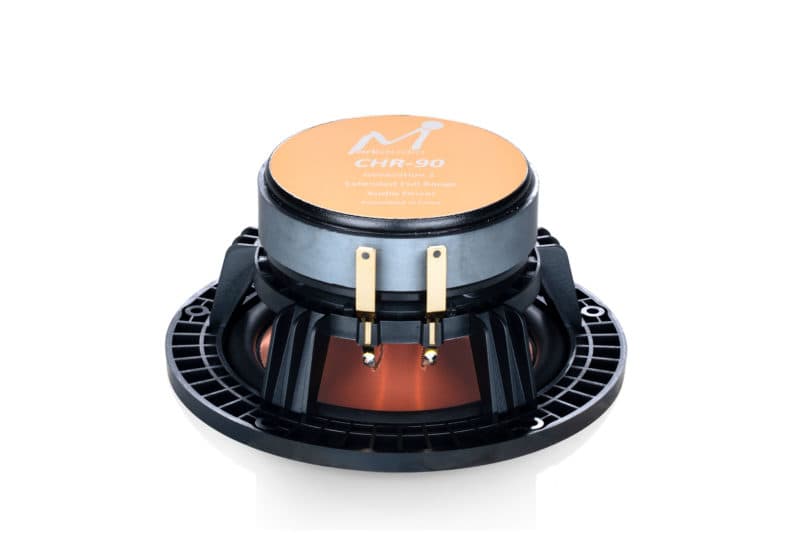

Markaudio CHR-90 3.543307086614174 inch 8 ohm loudspeaker driver view 6

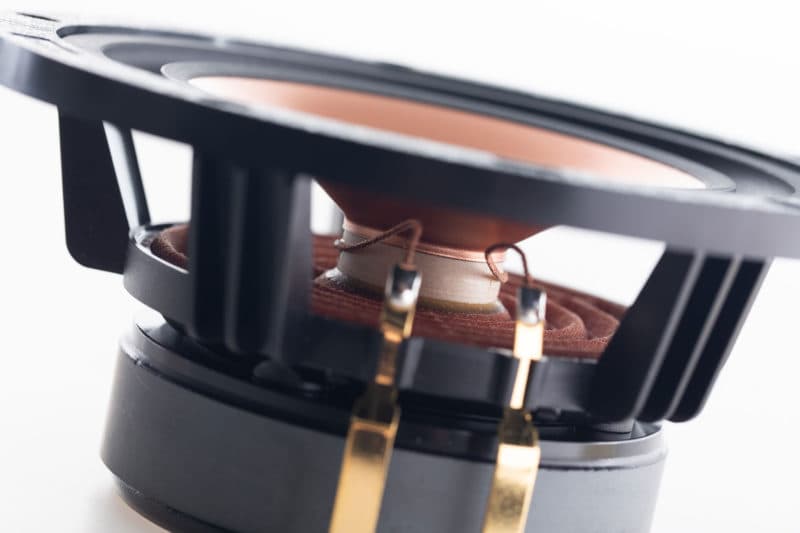

Markaudio CHR-90 3.543307086614174 inch 8 ohm loudspeaker driver view 7

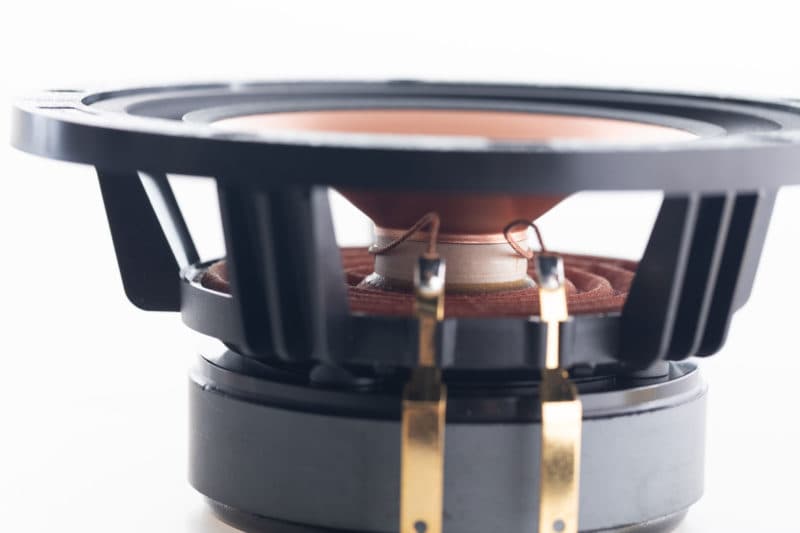

Markaudio CHR-90 3.543307086614174 inch 8 ohm loudspeaker driver view 8

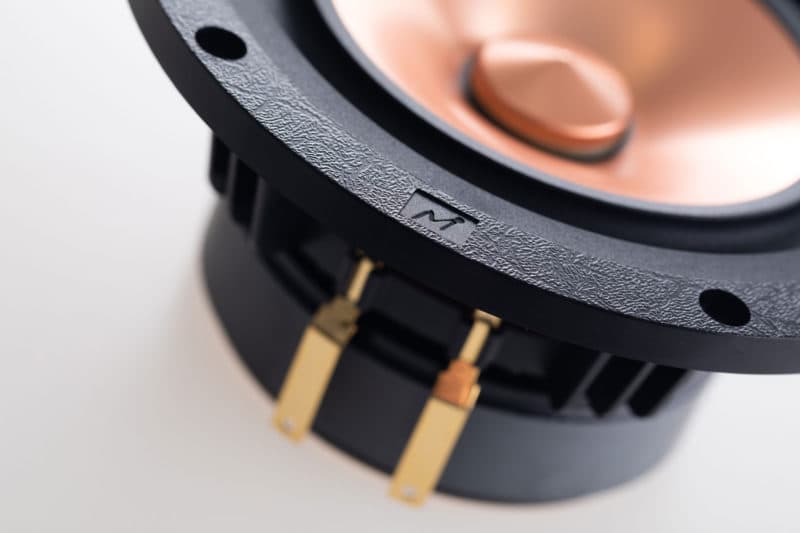

Markaudio CHR-90 3.543307086614174 inch 8 ohm loudspeaker driver view 9

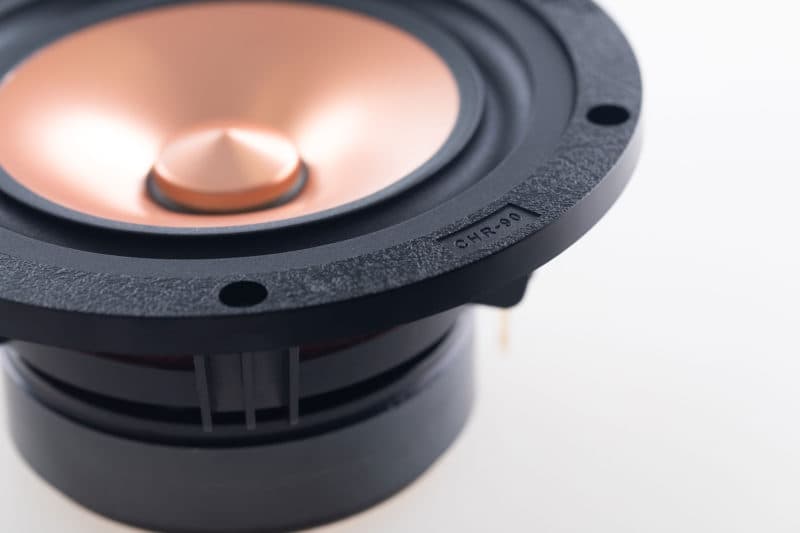

Markaudio CHR-90 3.543307086614174 inch 8 ohm loudspeaker driver view 10

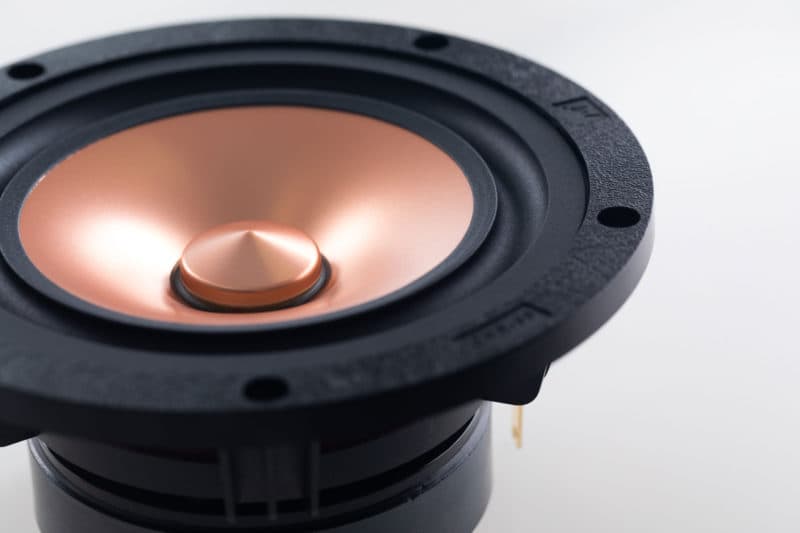

Markaudio CHR-90 3.543307086614174 inch 8 ohm loudspeaker driver view 11

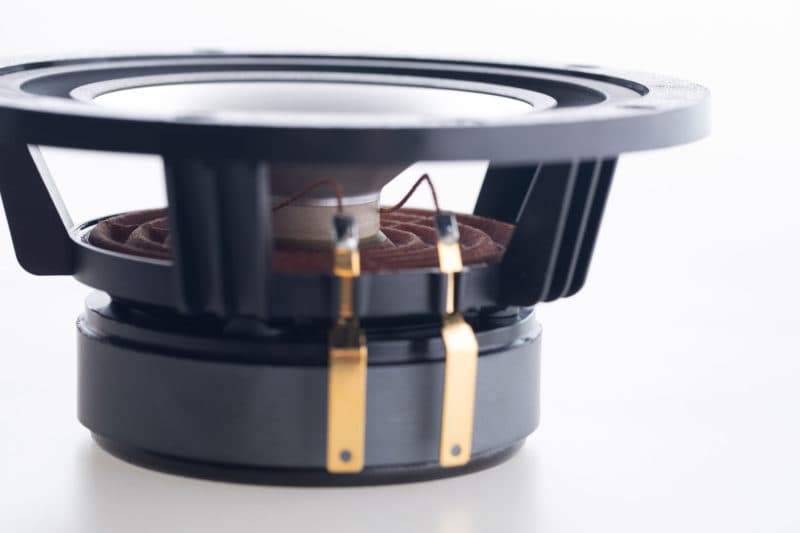

Markaudio CHR-90 3.543307086614174 inch 8 ohm loudspeaker driver view 12

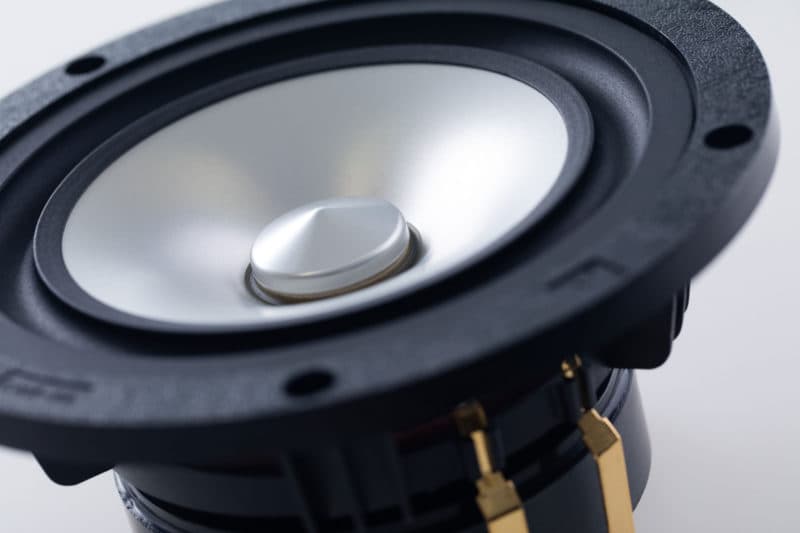

Markaudio CHR-90 3.543307086614174 inch 8 ohm loudspeaker driver view 13

Auto-advancing

Overview

LF DriverCHR series

Markaudio CHR-90

Markaudio CHR-90 is a 3.5" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 44Hz, Qts 0.36, Vas 26.1L, Xmax 7mm, sensitivity 89.4dB, plus 60cm³ Vd and 105 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size

3.5"

Impedance

8Ω

RMS Power

40W

Sensitivity

89.4dB

EBP

105

Vented alignment

V_d

60cm³

T/S Parameters

Valid

Canonical

Fs44Hz

Qts0.36

Qes0.42

Qms2.5

Vas26.1L

Re6.8Ω

Le0.29mH

BL4.7Tm

Sd85cm²

Mms5g

Xmax7.0mm

SPL89dB

Power40W

Impedance8Ω

What this validation status means

Pricing & availability

Price definitions

No current price found

Pricing may appear after the next vendor refresh.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight2.6kg
