Overview
LF Driver
Tang Band

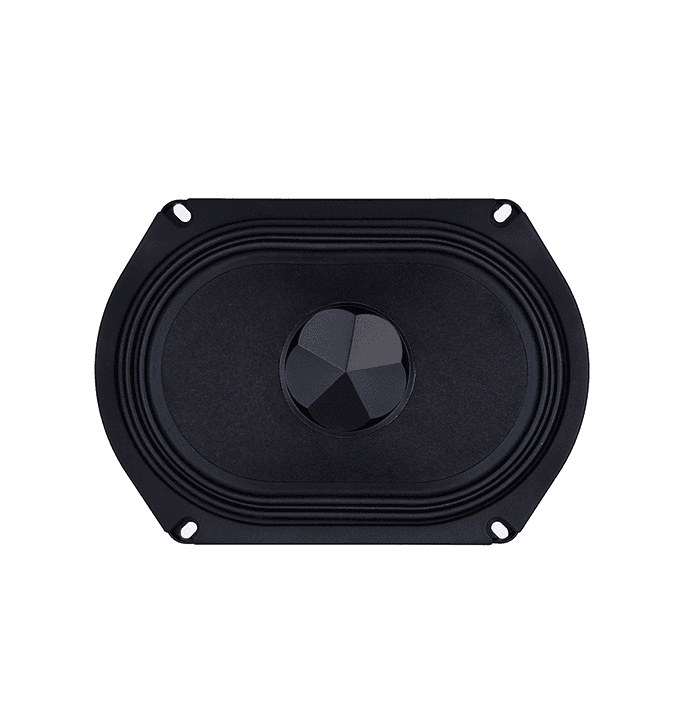

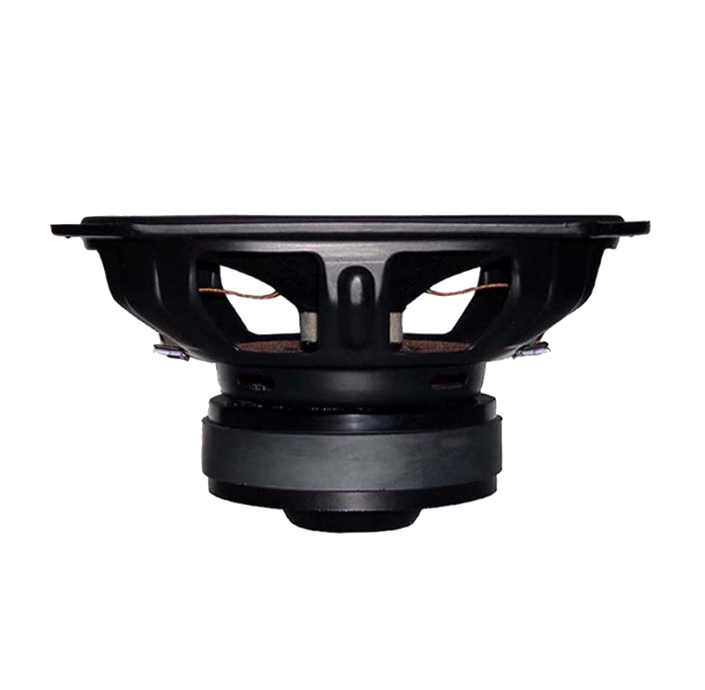

Tang Band W69-1042J
Tang Band W69-1042J is a 2.75" 8 ohm LF driver rated at 90W RMS. The validated T/S data includes Fs 35Hz, Qts 0.37, Vas 30.3L, Xmax 7.3mm, sensitivity 87.1dB, plus 165cm³ Vd and 88 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2.75"
Impedance
8Ω
RMS Power
90W
Sensitivity
87.1dB
EBP
88
Either alignment
Vd
165cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,412 selected pixels of 1,653 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,312 selected pixels of 2,386
T/S Parameters
Valid
Fs35Hz
Qts0.37
Qes0.40
Qms3.9
Vas30.3L
Re6.5Ω
Le0.91mH
BL13.3Tm
Sd226cm²
Mms50g
Xmax7.3mm
SPL87dB
Power90W
Impedance8Ω
