LF DriverPluvia series
Markaudio

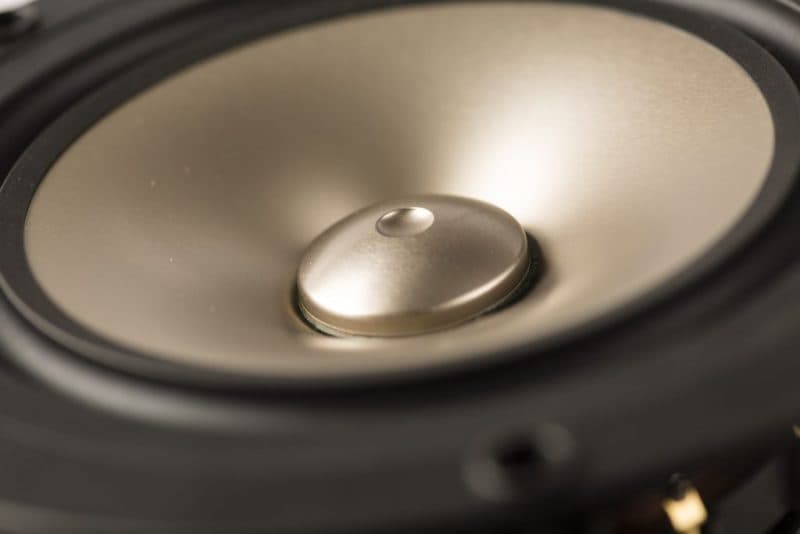

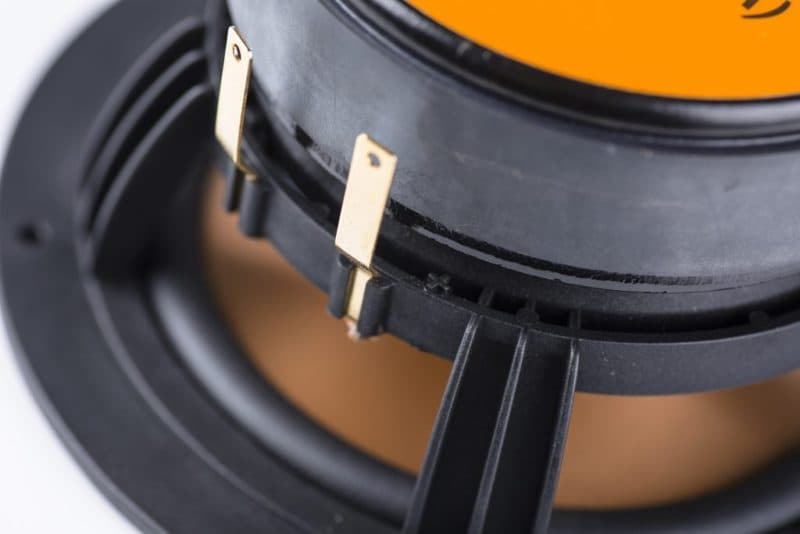

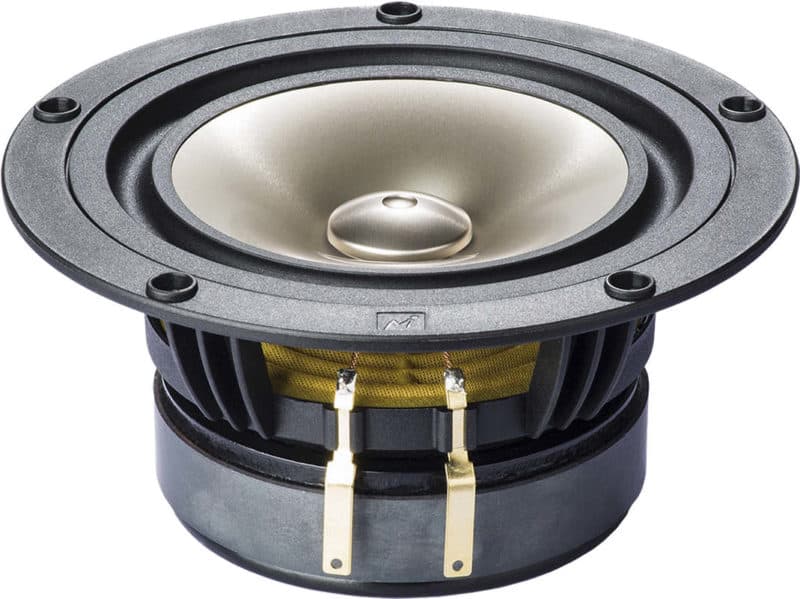

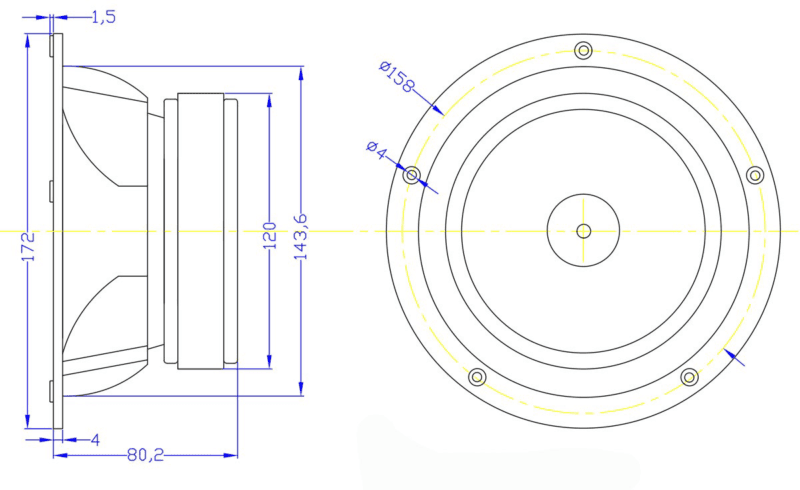

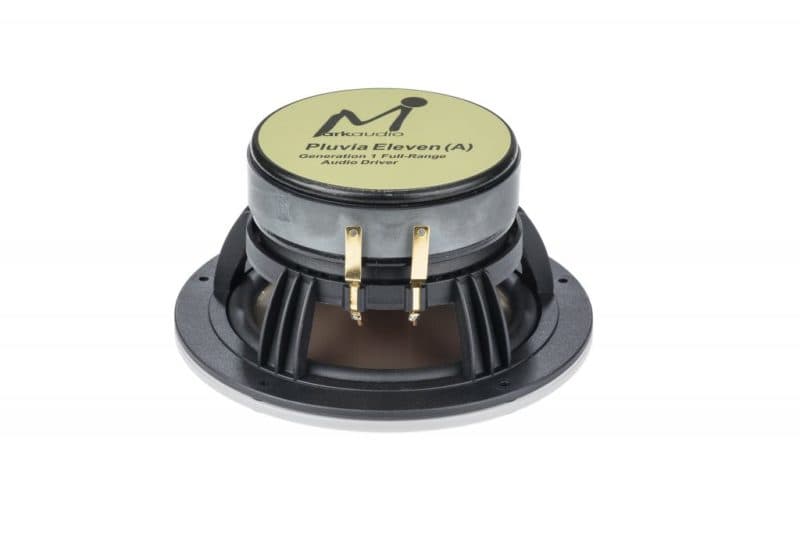

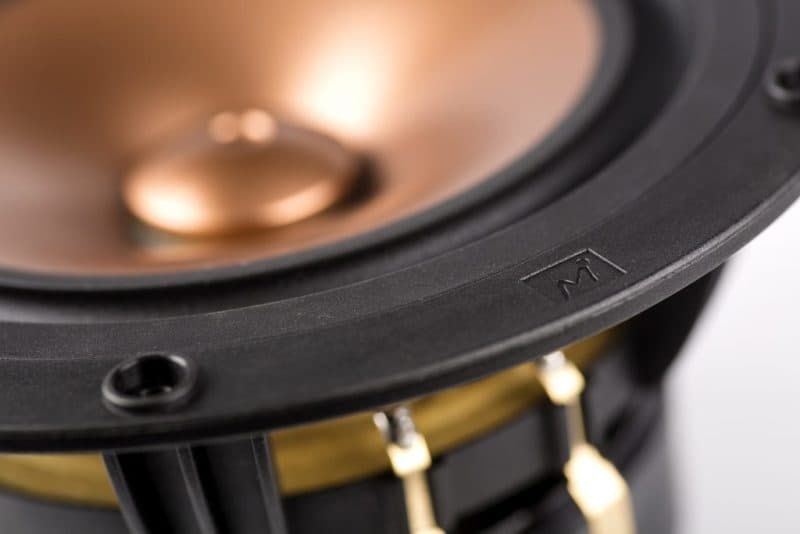

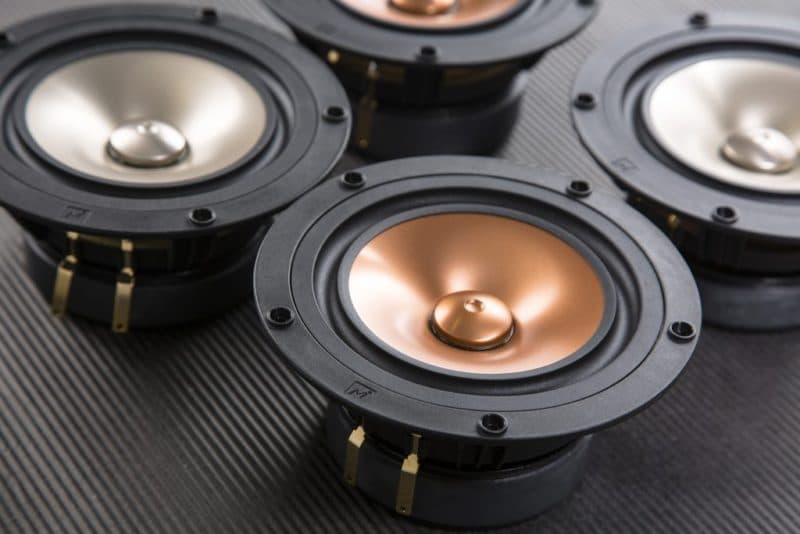

Markaudio Pluvia 11
Markaudio Pluvia 11 is a 4.25" 6 ohm LF driver rated at 45W RMS. The validated T/S data includes Fs 39Hz, Qts 0.29, Vas 24.8L, Xmax 7mm, sensitivity 88.3dB, plus 77cm³ Vd and 111 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £10320.00.
Size
4.25"
Impedance
6Ω
RMS Power
45W
Sensitivity
88.3dB
EBP
111
Vented alignment
Vd
77cm³
T/S Parameters
Valid
Fs39Hz
Qts0.29
Qes0.35
Qms1.8
Vas24.8L
Re5.4Ω
Le0.07mH
BL6.6Tm
Sd109cm²
Mms11g
Xmax7.0mm
SPL88dB
Power45W
Impedance6Ω
Pricing & availability
Price definitionsPrice movement
Best current price
£10,320.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Markaudio
Pluvia 11
4.25"
Best current price
£10,320.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
46%
Similarity
100% cheaper£24.81
SB Acoustics
SB13PFCR25-4
5"
Lower price
Xmax9mm+29%
Qts0.29-1%
BL5.3Tm-19%
Vas13.4L-46%
Qes0.33-6%
44%
Similarity
100% cheaper£24.81
SB Acoustics
SB13PFCR25-8
5"
Lower price
Xmax9mm+29%
Qts0.33+13%
BL6.2Tm-5%
Vas13.4L-46%
Qes0.39+11%
60%
Similarity
100% cheaper£44.95
Eighteen Sound
5W430
5"
Lower price
Xmax6mm-14%
Qts0.32+9%
BL6.3Tm-4%
Vas15L-39%
Qes0.36+3%
47%
Similarity
99% cheaper£77.96
CIARE
HWG130
5"
Lower price
Xmax6.5mm-7%
Qts0.34+16%
BL5Tm-24%
Vas12.5L-49%
Qes0.36+3%
52%
Similarity
99% cheaper£103.00
CIARE
HWG130
5"
Lower price
Xmax6.5mm-7%
Qts0.28-4%
BL7.8Tm+19%
Vas12.5L-49%
Qes0.3-15%
58%
Similarity
99% cheaper£115.00
SB Acoustics
MR13PNW-8
5"
Lower price
Xmax6mm-14%
Qts0.3+2%
BL6.2Tm-5%
Vas12.9L-48%
Qes0.32-9%
31%
Similarity
99% cheaper£115.00
SB Acoustics
MR13P-4
5"
Lower price
Xmax6mm-14%
Qts0.23-22%
BL4.3Tm-34%
Vas19.4L-22%
Qes0.25-29%
31%
Similarity
99% cheaper£115.00
SB Acoustics
MR13PNW-4
5"
Lower price
Xmax6mm-14%
Qts0.23-22%
BL4.3Tm-34%
Vas19.4L-22%
Qes0.25-29%
56%
Similarity
99% cheaper£135.77
SB Acoustics
MR13P-8
5"
Lower price
Xmax6mm-14%
Qts0.31+6%
BL6.1Tm-7%
Vas12.5L-49%
Qes0.33-6%
76%
Similarity

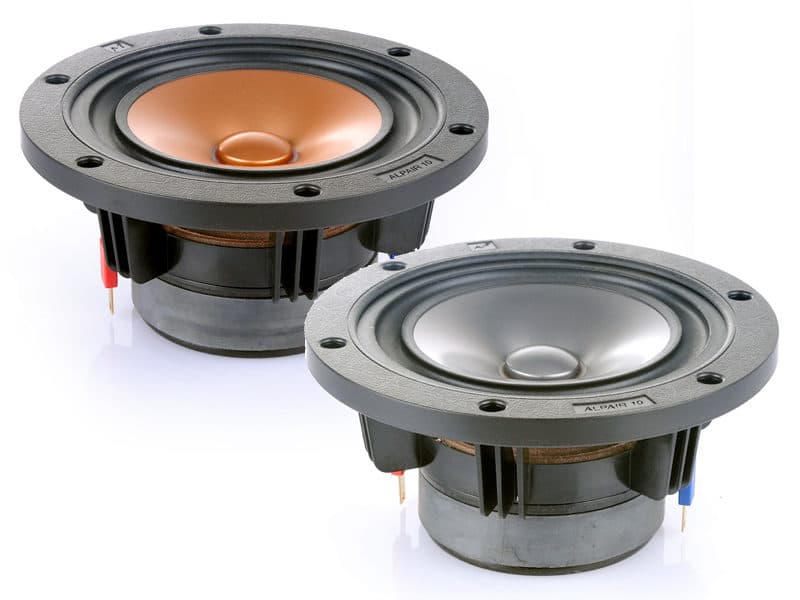

Markaudio
Alpair 10
4"
Xmax7.5mm+7%
Qts0.32+8%
BL5.8Tm-12%
Vas26.3L+6%
Qes0.38+8%
66%
Similarity
Audio Technology
5 H 52 17 06 SD
5"
Xmax6.3mm-10%
Qts0.28-4%
BL6.6Tm+1%
Vas34L+37%
Qes0.33-6%
65%
Similarity

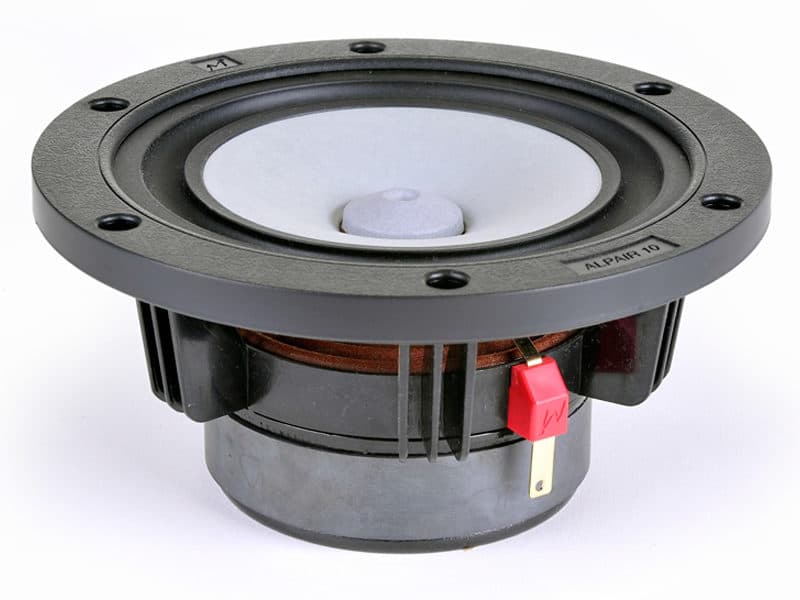

Markaudio
Alpair 10P
4"
Xmax7mm0%
Qts0.33+13%
BL4.7Tm-28%
Vas30L+21%
Qes0.38+9%
