5.75-inch LF driver
Kartesian WOM145_VHE 6Ω
6 Ω · 43–3500 Hz
No current price
- Fs
- 44Hz
- Xmax
- 6mm
- SPL
- 88dB
- Pe
- –
- BL
- 4.9T·m
- Vd
- 51cm³
- Qts
- 0.42
- Vas
- 16L

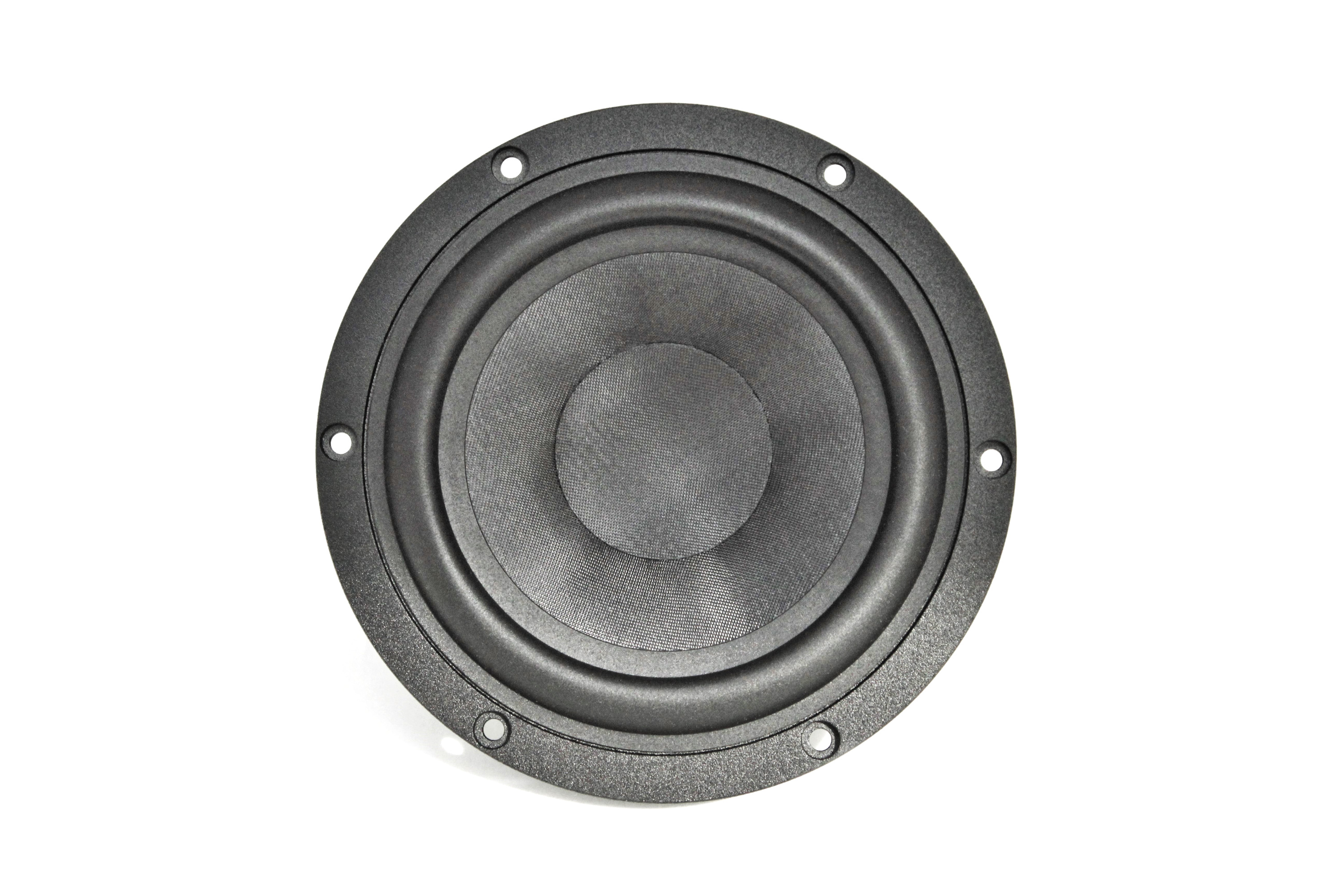

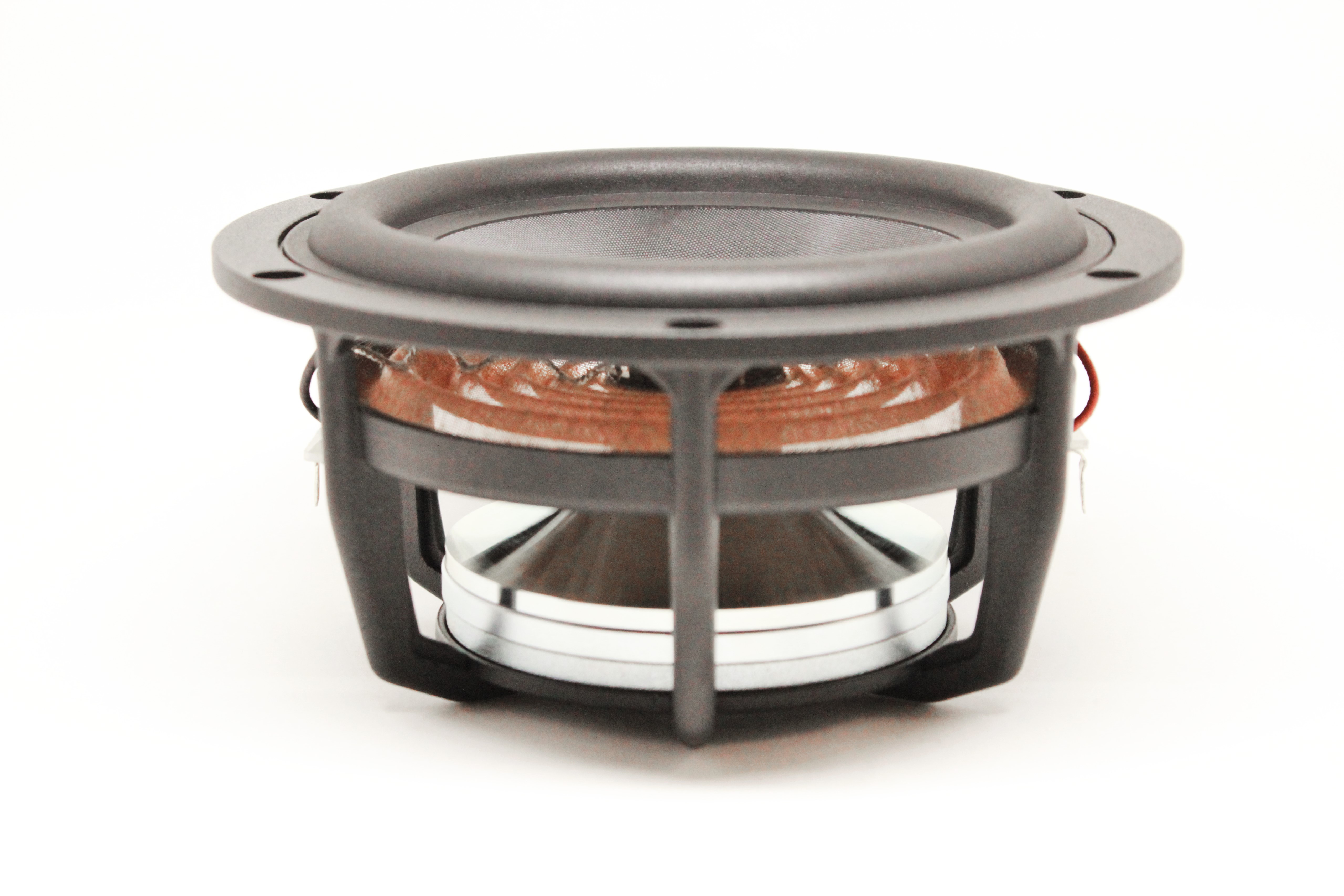

Kartesian WOM145_VHE is a 5.75-inch 6 ohm LF driver. The validated T/S data includes Fs 44 Hz, Qts 0.42, Vas 15.6 L, Xmax 6 mm, sensitivity 88 dB, plus 51 cm³ Vd. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Partial source evidence
Automated T/S checks passed, but some material low-frequency parameters are not published for this record.
Material fields not published: Qes
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
Thiele/Small
- Fs
- 44Hz
- Qts
- 0.42
- Qms
- 4.2
- Vas
- 15.6L
- Re
- 4.8Ω
Motor and cone
- BL
- 4.9T·m
- Sd
- 85cm²
- Mms
- 9g
- Xmax
- 6mm
- Vd †
- 51cm³
Power and response
- Sensitivity
- 88dB
- Impedance
- 6Ω
- Range
- 43–3500Hz
Size and mounting
- Diameter
- 145mm
† Calculated by bits from the published values
What this validation status means
Everything else Kartesian lists
LF · Primary · 5.708661417322835″
- BL
- 4.9T·m
- Fs
- 44Hz
- Re
- 4.8Ω
- Sd
- 85cm²
- Mms
- 9g
- Qms
- 4.2
- Qts
- 0.42
- SPL
- 88dB
- Vas
- 15.6L
- Xmax
- 6mm
- Impedance
- 6Ω
- Sensitivity
- 88dB
- Low limit
- 43Hz
- High limit
- 3500Hz
- Manufacturer sensitivity
- 88dB
- Diameter
- 145mm
02
Compare
Same-size drivers, compared with the WOM145_VHE. Clear differences are green when better and red when worse.
This driverWOM145_VHE
Best price
–
Fs
44 Hz
Qts
0.42
Vas
15.6 L
BL
4.9 T·m
Xmax
6 mm
Sensitivity
88 dB
Power
–
SB AcousticsSB15MFC30-8
£48.66Fs39 Hz −11%, better
Qts0.37 −13%, better
Vas17.7 L +13%, worse
BL5.6 T·m +14%, better
Xmax5 mm −17%, worse
Sensitivity86.2 dB −1.8
WavecorWF146WA05
£53.11Fs41 Hz −7%
Qts0.38 −10%, better
Vas15.2 L –
BL5 T·m –
Xmax3 mm −50%, worse
Sensitivity86.2 dB −1.8
Sica6.5 H 1.5 CP
£56.02Fs45 Hz +3%
Qts0.42 –
Vas20.2 L +29%, worse
BL7.0 T·m +43%, better
Xmax6 mm –
Sensitivity88.2 dB –
WavecorWF146WA01
£57.60Fs56 Hz +27%, worse
Qts0.42 –
Vas10 L −36%, better
BL5.1 T·m +4%
Xmax3 mm −50%, worse
Sensitivity87.9 dB –
SB AcousticsSB15NBAC30-8
£62.57Fs36 Hz −19%, better
Qts0.37 −13%, better
Vas17 L +9%
BL5.7 T·m +16%, better
Xmax5 mm −17%, worse
Sensitivity84.7 dB −3.3, worse
SB AcousticsSB15CAC30-8
£76.56Fs36 Hz −19%, better
Qts0.38 −10%, better
Vas17.9 L +15%, worse
BL5.7 T·m +16%, better
Xmax5 mm −17%, worse
Sensitivity84.8 dB −3.2, worse
CIAREHWG130
£77.96Fs40 Hz −9%
Qts0.34 −20%, better
Vas12.5 L −20%, better
BL5 T·m –
Xmax6.5 mm +8%
Sensitivity85.5 dB −2.5, worse
SB AcousticsSB15CRC30-8
£81.08Fs40 Hz −9%
Qts0.41 −3%
Vas14.9 L −4%
BL5.6 T·m +14%, better
Xmax5.5 mm −8%
Sensitivity85.2 dB −2.8, worse
SB AcousticsSB15CRC30-4
£81.08Fs37 Hz −16%, better
Qts0.32 −25%, better
Vas17.3 L +11%, worse
BL4.5 T·m −8%
Xmax5.5 mm −8%
Sensitivity85.9 dB −2.1, worse
FountekFW168K
£87.88Fs49 Hz +10%, worse
Qts0.43 –
Vas15.1 L −3%
BL7.9 T·m +60%, better
Xmax5 mm −17%, worse
Sensitivity87.2 dB −0.8
SEASH1480 L16RN-SL
£123.54Fs37 Hz −16%, better
Qts0.45 +6%
Vas19 L +22%, worse
BL6.1 T·m +24%, better
Xmax6 mm –
Sensitivity84.5 dB −3.5, worse
VisatonAL 130
£129.53Fs43 Hz –
Qts0.38 −10%, better
Vas13 L −17%, better
BL5.6 T·m +14%, better
Xmax6 mm –
Sensitivity85.9 dB −2.1, worse
SB AcousticsMW13P-4
£139.69Fs41 Hz −7%
Qts0.27 −36%, better
Vas14.6 L −6%
BL4.9 T·m –
Xmax5 mm −17%, worse
Sensitivity87.4 dB −0.6
SB AcousticsMW13PNW-4
£139.69Fs41 Hz −7%
Qts0.27 −36%, better
Vas14.6 L −6%
BL4.9 T·m –
Xmax5 mm −17%, worse
Sensitivity87.4 dB −0.6
Scanspeak15W/8530K00
£157.03Fs39 Hz −11%, better
Qts0.39 −8%
Vas16 L –
BL6.6 T·m +34%, better
Xmax6.5 mm +8%
Sensitivity85.5 dB −2.5, worse
Scanspeak15W/8530K01
£157.04Fs38 Hz −14%, better
Qts0.50 +18%, worse
Vas17 L +9%
BL5.8 T·m +18%, better
Xmax6.5 mm +8%
Sensitivity84.3 dB −3.7, worse
£167.42
Fs49 Hz +11%, worse
Qts0.45 +6%
Vas12 L −23%, better
BL4.6 T·m −7%
Xmax5 mm −17%, worse
Sensitivity86 dB −2, worse
Scanspeak15W/4531G00
£167.42Fs40 Hz −9%
Qts0.32 −25%, better
Vas15.8 L –
BL5.7 T·m +16%, better
Xmax6.5 mm +8%
Sensitivity86.8 dB −1.2
SB AcousticsMW13TX-4
£225.24Fs38 Hz −14%, better
Qts0.26 −39%, better
Vas16 L –
BL5 T·m –
Xmax5 mm −17%, worse
Sensitivity87.2 dB −0.8
£375.54
Fs37 Hz −16%, better
Qts0.33 −22%, better
Vas15 L −4%
BL5.3 T·m +8%
Xmax7 mm +17%, better
Sensitivity85 dB −3, worse
£385.12
Fs38 Hz −14%, better
Qts0.42 –
Vas14 L −10%, better
BL5.1 T·m +4%
Xmax4 mm −33%, worse
Sensitivity83.9 dB −4.1, worse
Tang BandW5-1685
No current priceFs50 Hz +14%, worse
Qts0.46 +8%
Vas12.8 L −18%, better
BL4.7 T·m −4%
Xmax6 mm –
Sensitivity86.8 dB −1.2
HiViS6.5
No current priceFs47 Hz +7%
Qts0.42 –
Vas18.4 L +18%, worse
BL6.4 T·m +30%, better
Xmax5.8 mm −3%
Sensitivity88.1 dB –
WavecorWF146OM01
No current priceFs49 Hz +11%, worse
Qts0.42 –
Vas13.6 L −13%, better
BL4.6 T·m −7%
Xmax3.3 mm −45%, worse
Sensitivity87.5 dB −0.5
HiViS6.5RMKII
No current priceFs52 Hz +18%, worse
Qts0.48 +13%, worse
Vas15.7 L –
BL6.4 T·m +30%, better
Xmax5.8 mm −3%
Sensitivity88.1 dB –
Tang BandW5-1611SDF
No current priceFs60 Hz +36%, worse
Qts0.41 −3%
Vas15.2 L –
BL4.3 T·m −13%, worse
Xmax3 mm −50%, worse
Sensitivity90.5 dB +2.5, better
Tang BandW5-1611SA
No current priceFs60 Hz +36%, worse
Qts0.44 +4%
Vas13.0 L −17%, better
BL5.2 T·m +5%
Xmax3 mm −50%, worse
Sensitivity88.7 dB +0.7
KartesianWIB145_VHE
No current priceFs56 Hz +27%, worse
Qts0.52 +23%, worse
Vas9.7 L −38%, better
BL5 T·m –
Xmax6 mm –
Sensitivity89 dB +1
Supravox165 GMF
No current priceFs70 Hz +59%, worse
Qts0.39 −8%
Vas40 L +156%, worse
BL5.6 T·m +14%, better
Xmax6 mm –
Sensitivity97.2 dB +9.2, better
