Overview
LF DriverPrestige series
SEAS

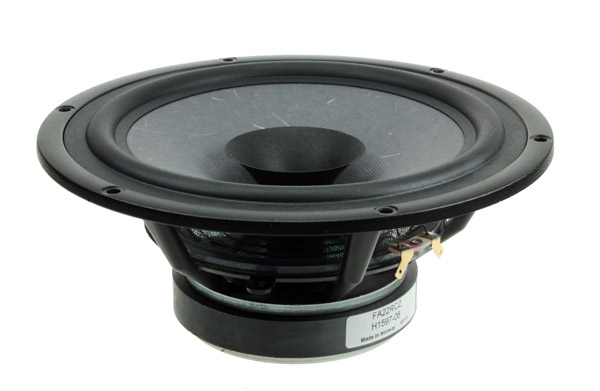

SEAS H1597-08 FA22RCZ
SEAS H1597-08 FA22RCZ is a 8" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 30Hz, Qts 0.35, Vas 134L, Xmax 3mm, sensitivity 91.8dB, plus 67cm³ Vd and 79 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
40W
Sensitivity
91.8dB
94.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
79
Either alignment
Vd
67cm³

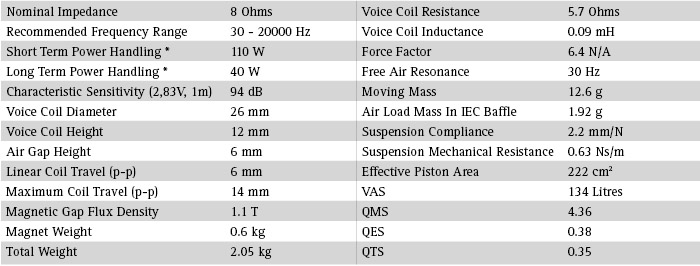

T/S Parameters
Valid
Fs30Hz
Qts0.35
Qes0.38
Qms4.4
Vas134.0L
Re5.7Ω
Le0.09mH
BL6.4Tm
Sd222cm²
Mms13g
Xmax3.0mm
SPL92dB
Power40W
Impedance8Ω
F Low30Hz
F High20000Hz
Voice Coil26mm
Flux Density1.10T
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£206.16
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

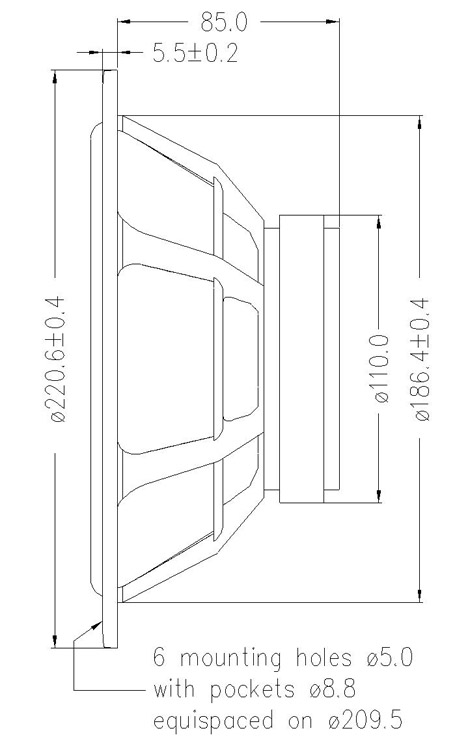

Dimensions & Physical
Weight2.0kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SEAS
H1597-08 FA22RCZ
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
69%
Similarity

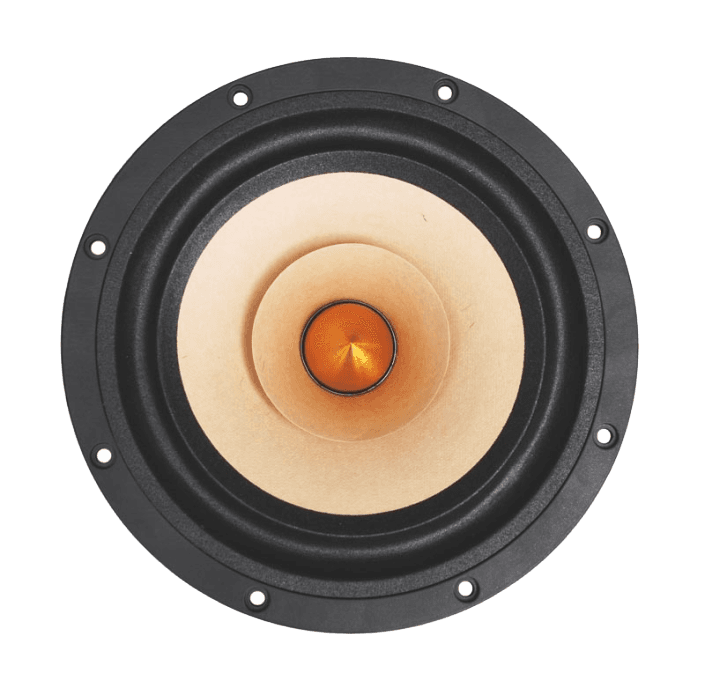

Tang Band
