LF DriverCME series
CIARE
CIARE CME200
CIARE CME200 is a 8" 4 ohm LF driver rated at 260W RMS. The validated T/S data includes Fs 76Hz, Qts 0.37, Vas 18L, Xmax 3.5mm, sensitivity 95.1dB, plus 72cm³ Vd and 195 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £58.19.
Size
8"
Impedance
4Ω
RMS Power
260W
Sensitivity
95.1dB
99.5dBmanufacturer; using T/S-derived value (4.4dB delta).
EBP
195
Vented alignment
Vd
72cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence2,301 selected pixels of 2,301 - Trace datasheet-response-trace-poc/v1
free air impedance
Impedance response
240 plotted pointsMedium confidence2,034 selected pixels of 2,034
T/S Parameters
Valid
Fs76Hz
Qts0.37
Qes0.39
Qms7.0
Vas18.0L
Re3.0Ω
Le0.45mH
BL7.3Tm
Sd206cm²
Mms14g
Xmax3.5mm
SPL95dB
Power260W
Power Nominal130W
Impedance4Ω
F Low70Hz
F High8000Hz
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
£58.19
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.5kg
Diameter206.0mm
Overall Depth91.5mm
Cutout Diameter185.0mm
Bolt Circle Diameter194.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CME200
8"
Best current price
£58.19
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
43%
Similarity
36% cheaper£37.43
Dayton Audio
MB820-8
8"
Lower price
Xmax4mm+14%
Qts0.46+24%
BL9.6Tm+32%
Vas15.8L-12%
Qes0.52+33%
60%
Similarity
23% cheaper£44.87
PRV Audio
8MR500-4
8"
Lower price
Xmax3.3mm-7%
Qts0.46+24%
BL6.5Tm-12%
Vas20.8L+16%
Qes0.48+23%
45%
Similarity
20% more£69.95

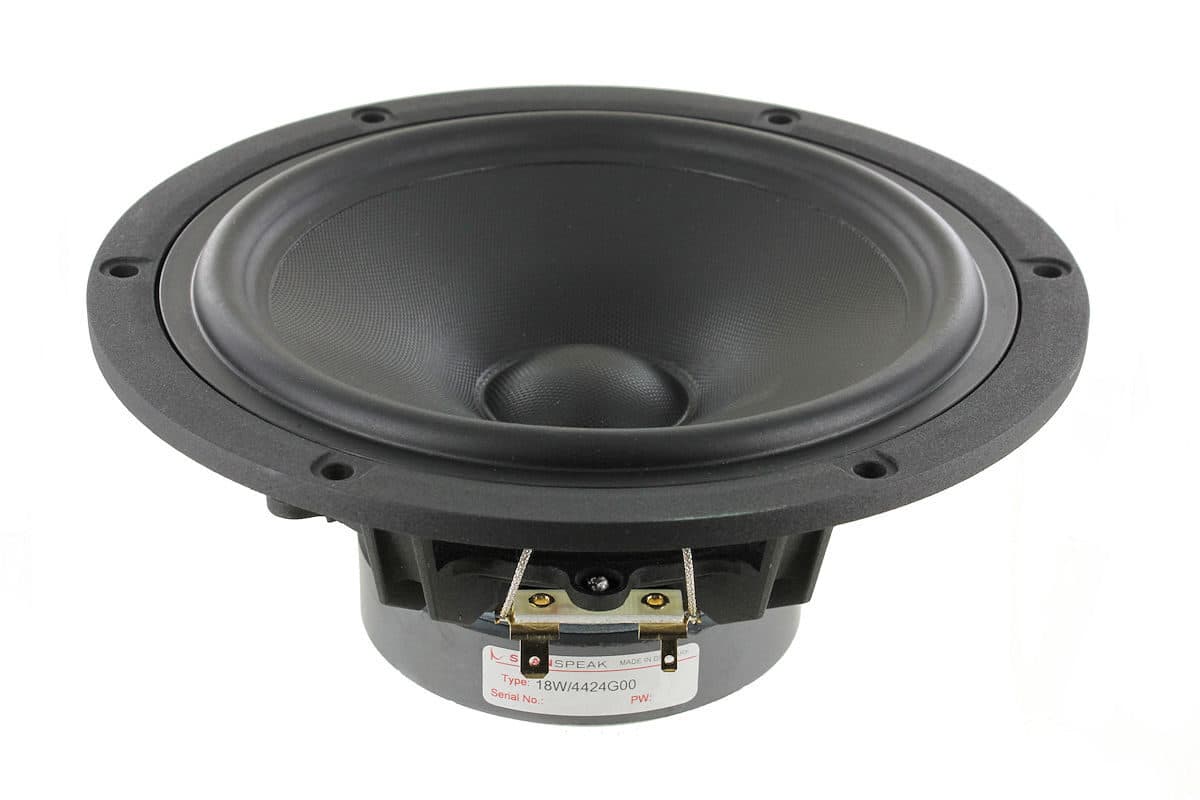

Scanspeak
18W/4424G00
7"
Higher price
Xmax2.8mm-20%
Qts0.38+3%
BL5.2Tm-29%
Vas24.1L+34%
Qes0.42+8%
34%
Similarity
20% more£69.95

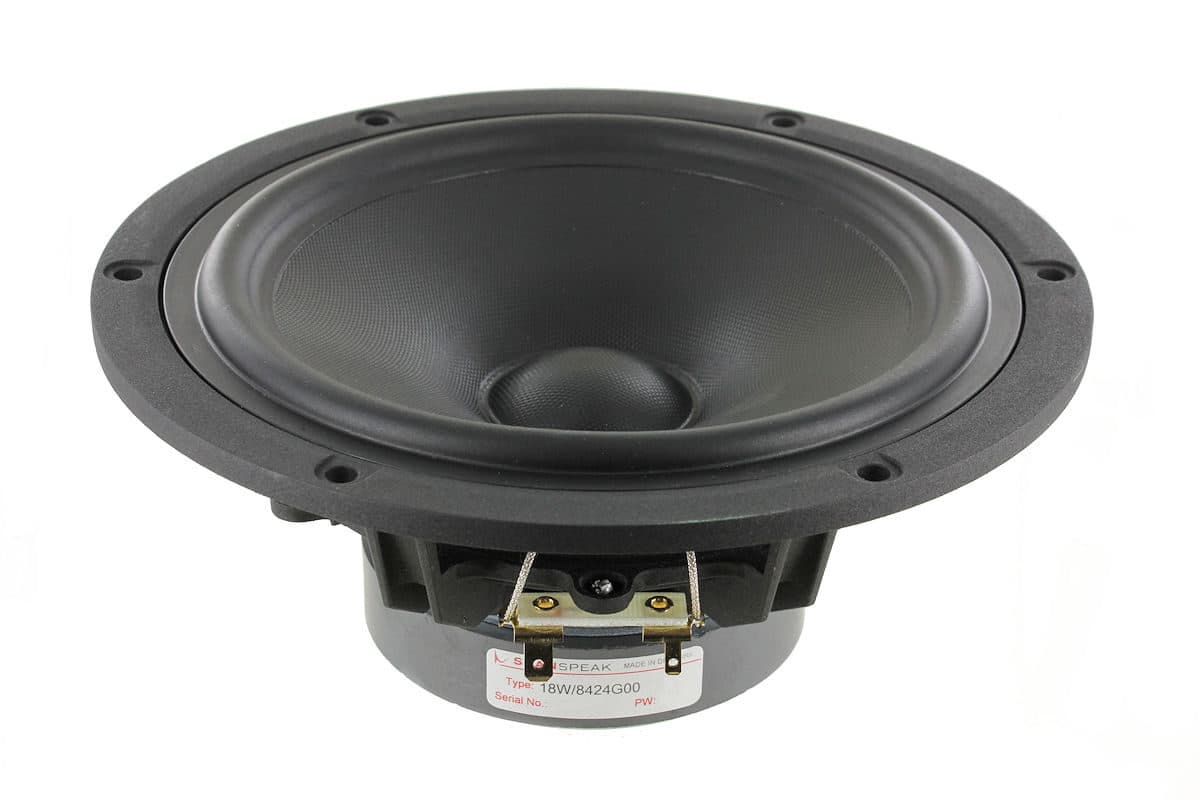

Scanspeak
18W/8424G00
7"
Higher price
Xmax2.6mm-26%
Qts0.45+22%
BL6.6Tm-10%
Vas20.3L+13%
Qes0.51+31%
65%
Similarity
23% more£71.54

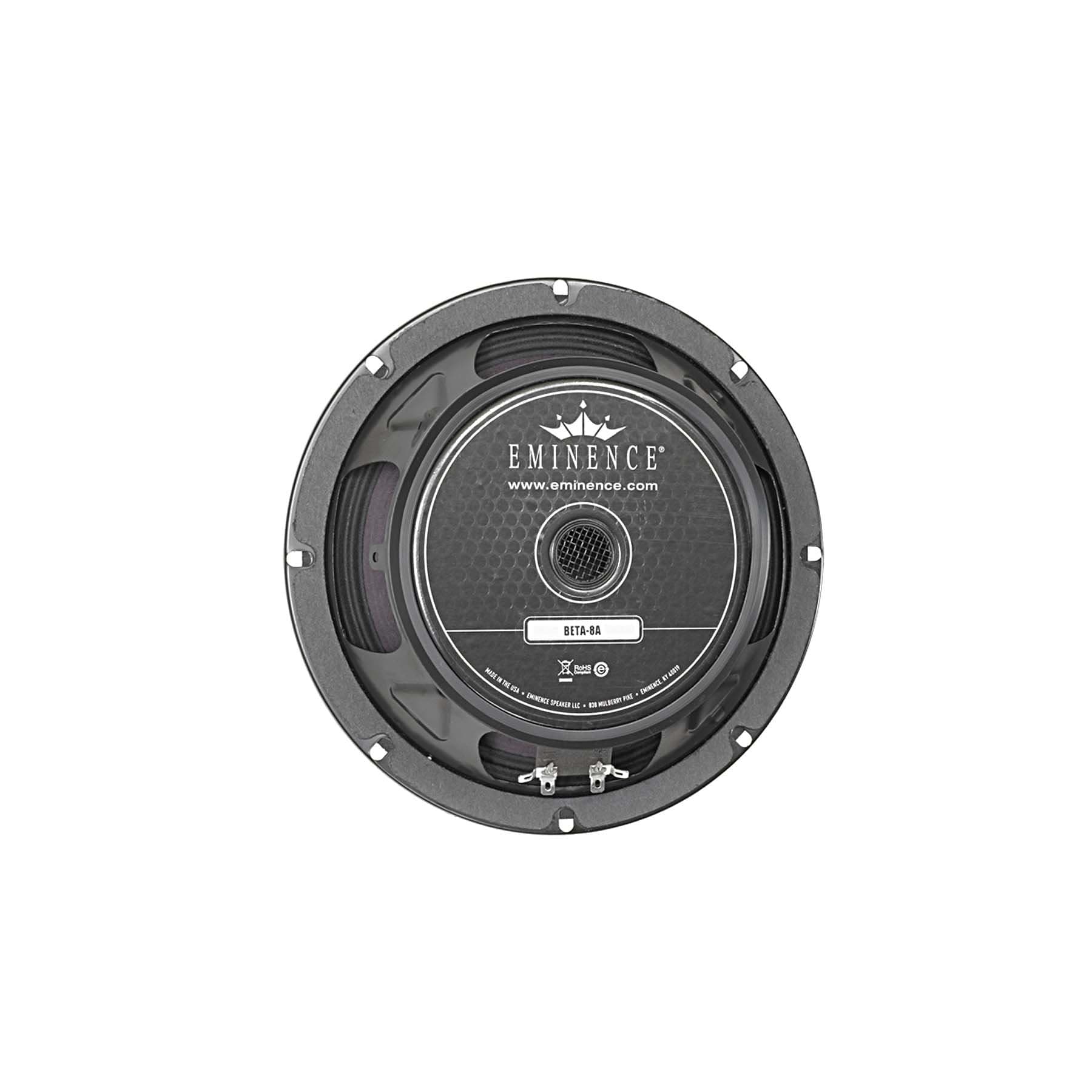

Eminence
