Eighteen Sound 8MB500 4Ω

LF Driver
WatchWatch priceSimSimulate
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /8MB500

Media

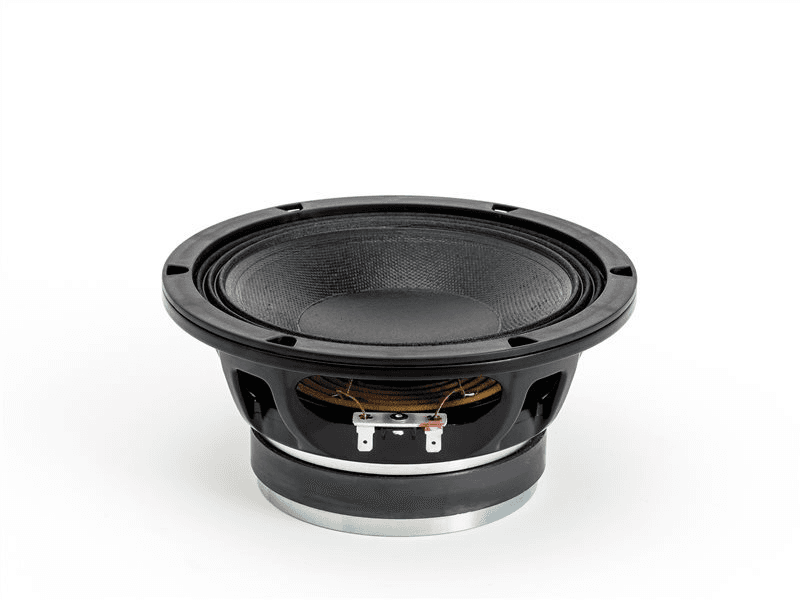

Eighteen Sound 8MB500 8 inch 4 ohm loudspeaker driver view 1

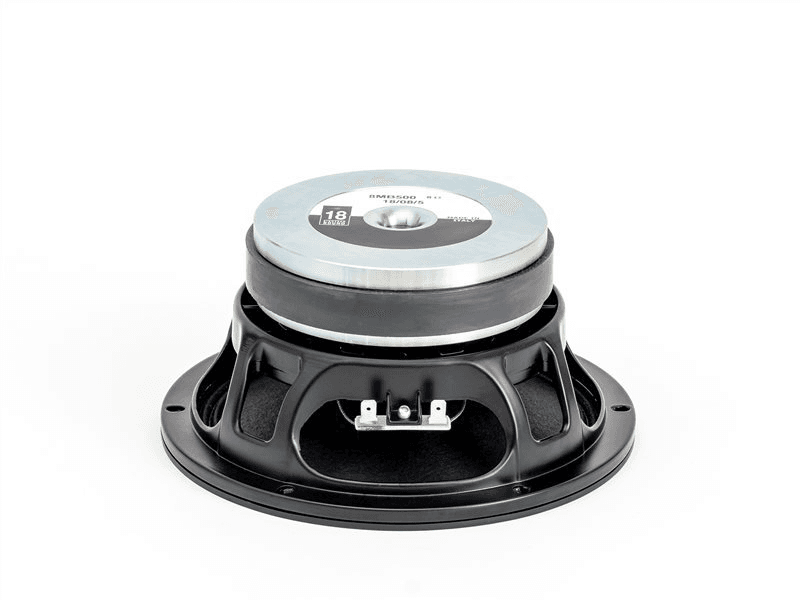

Eighteen Sound 8MB500 8 inch 4 ohm loudspeaker driver view 2
Auto-advancing

Overview

LF Driver
Eighteen Sound

Eighteen Sound 8MB500

Eighteen Sound 8MB500 is a 8" 4 ohm LF driver rated at 280W RMS. The validated T/S data includes Fs 73Hz, Qts 0.36, Vas 18.4L, Xmax 6mm, sensitivity 94.3dB, plus 138cm³ Vd and 174 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size
8"
Impedance
4Ω
RMS Power
280W
Sensitivity
94.3dB
EBP
174
Vented alignment
Vd
138cm³
Datasheet

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

2 curves
97908477711k2k5k10kHzdBfrequency response
frequency response173 ptsp2medium
Curve provenanceInspect 2 tracesHide details

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

  • frequency response

    Frequency response

    Trace datasheet-response-trace-poc/v2
    173 plotted pointsSource file SHA-256 607e2fddf592…Medium confidence2,690 selected pixels of 2,690
    Manufacturer datasheet, page 2

  • impedance

    Impedance response

    Trace datasheet-response-trace-poc/v2
    240 plotted pointsSource file SHA-256 607e2fddf592…Medium confidence1,285 selected pixels of 1,590
    Manufacturer datasheet, page 2

T/S Parameters

Valid
Canonical
Fs73Hz
Qts0.36
Qes0.42
Qms2.6
Vas18.4L
Re2.6Ω
Le0.34mH
BL7.2Tm
Sd230cm²
Mms18g
Xmax6.0mm
SPL94dB
Power280W
Power Nominal280W
Impedance4Ω
F Low60Hz
F High4500Hz
What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight3.4kg
Diameter210.0mm
Overall Depth99.0mm
Cutout Diameter186.0mm
Bolt Circle Diameter195.0mm

Similar Drivers

Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.

Search Similar
Eighteen Sound 8MB500 8 inch 4 ohm loudspeaker driver similar-driver reference
Reference
Eighteen Sound
8MB500
8"
Compare on

Matches sit inside every range. Size stays fixed automatically.

Qts
Qes
Vas
L
Xmax
mm
BL
Tm

5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.

12 matches

Compare a specific driver

Added drivers stay at the front of the list, whatever the ranges say.

Dayton Audio RS180P-8 7 inch 8 ohm loudspeaker driver similar driver
72%
Similarity
£60.35
Dayton Audio
RS180P-8
7"
Xmax6mm0%
Qts0.34-6%
BL7.2Tm-1%
Vas22L+20%
Qes0.44+5%
Eighteen Sound 8MB400 8 inch 8 ohm loudspeaker driver similar driver
71%
Similarity
£90.00
Eighteen Sound
8MB400
8"
Xmax5.8mm-3%
Qts0.38+6%
BL9.3Tm+29%
Vas23.9L+30%
Qes0.43+2%
CIARE CME201 8 inch 4 ohm loudspeaker driver similar driver
70%
Similarity
CIARE
CME201
8"
Xmax4.5mm-25%
Qts0.4+11%
BL7.5Tm+4%
Vas21.5L+17%
Qes0.44+5%
Dayton Audio RS180S-8 7 inch 8 ohm loudspeaker driver similar driver
69%
Similarity
£103.21
Dayton Audio
RS180S-8
7"
Xmax6mm0%
Qts0.360%
BL7.3Tm+1%
Vas23L+25%
Qes0.49+17%
PRV Audio 8MR600X-4 8 inch 4 ohm loudspeaker driver similar driver
69%
Similarity
£67.85
PRV Audio
8MR600X-4
8"
Xmax5.1mm-15%
Qts0.34-6%
BL8.9Tm+24%
Vas19.6L+7%
Qes0.36-14%
Eighteen Sound 8CX401F 8 inch 8 ohm loudspeaker driver similar driver
68%
Similarity
£199.68
Eighteen Sound
8CX401F
8"
Xmax5.8mm-3%
Qts0.34-6%
BL9.3Tm+29%
Vas23.9L+30%
Qes0.38-10%
PRV Audio MT8MB600CF-NDY-4 8 inch 4 ohm loudspeaker driver similar driver
68%
Similarity
PRV Audio
MT8MB600CF-NDY-4
8"
Xmax4.8mm-21%
Qts0.37+3%
BL9.3Tm+29%
Vas18.8L+2%
Qes0.38-10%
Oberton 8CX 8 inch 8 ohm loudspeaker driver similar driver
66%
Similarity
Oberton
8CX
8"
Xmax5.3mm-12%
Qts0.4+11%
BL9.4Tm+31%
Vas16.8L-8%
Qes0.44+5%
CIARE CMI200ND 8 inch 4 ohm loudspeaker driver similar driver
62%
Similarity
CIARE
CMI200ND
8"
Xmax4.5mm-25%
Qts0.37+3%
BL8.8Tm+22%
Vas12.5L-32%
Qes0.39-7%
FaitalPRO 8FE300 8 inch 4 ohm loudspeaker driver similar driver
62%
Similarity
£54.96
FaitalPRO
8FE300
8"
Xmax5.5mm-9%
Qts0.41+14%
BL9.7Tm+35%
Vas14L-24%
Qes0.43+2%
Eighteen Sound 8MB500 8 inch 8 ohm loudspeaker driver similar driver
62%
Similarity
£103.07
Eighteen Sound
8MB500
8"
Xmax6mm0%
Qts0.43+19%
BL9Tm+25%
Vas21.5L+17%
Qes0.51+21%
Scanspeak 18W/8542-10 7 inch 8 ohm loudspeaker driver similar driver
61%
Similarity
£157.04
Scanspeak
18W/8542-10
7"
Xmax6.5mm+8%
Qts0.35-3%
BL6.9Tm-4%
Vas26L+41%
Qes0.44+5%
