Eighteen Sound 8MB500 16Ω

LF Driver
WatchWatch priceSimSimulate
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /8MB500

Media

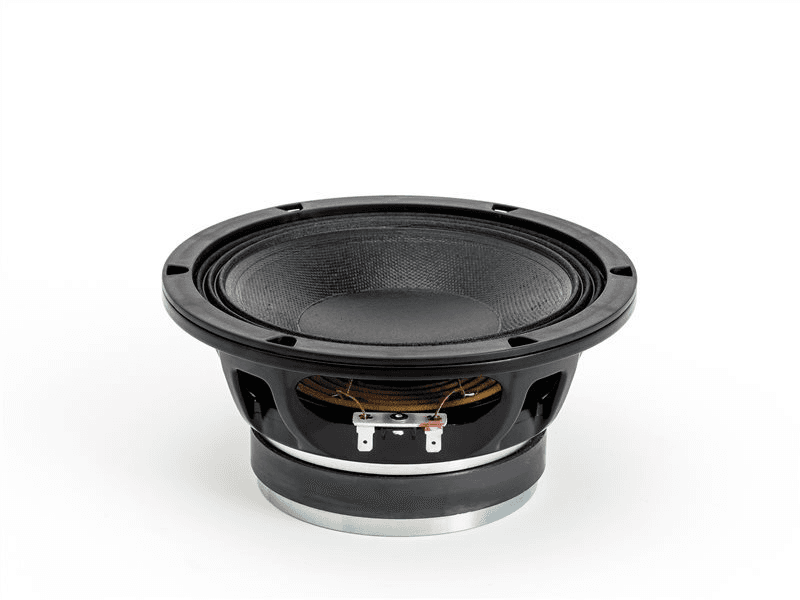

Eighteen Sound 8MB500 8 inch 16 ohm loudspeaker driver view 1

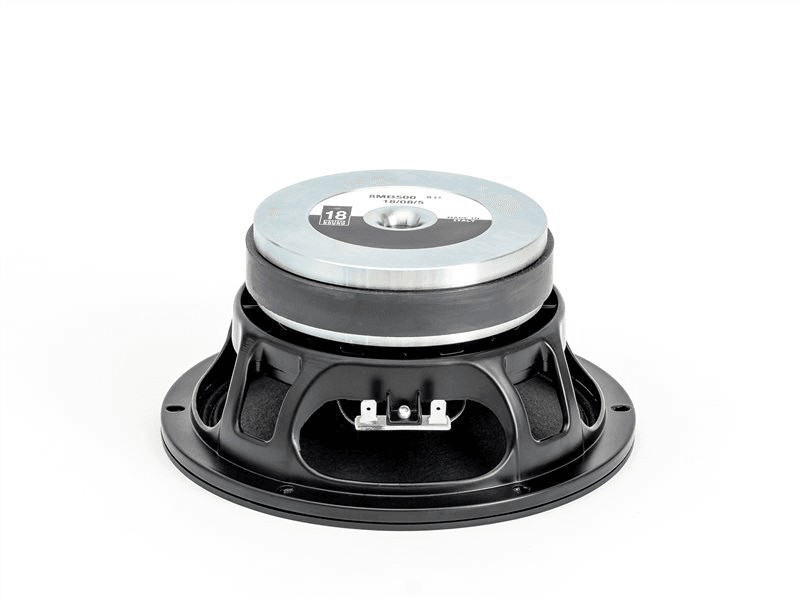

Eighteen Sound 8MB500 8 inch 16 ohm loudspeaker driver view 2
Auto-advancing

Overview

LF Driver
Eighteen Sound

Eighteen Sound 8MB500

Eighteen Sound 8MB500 is a 8" 16 ohm LF driver rated at 280W RMS. The validated T/S data includes Fs 73Hz, Qts 0.50, Vas 21.3L, Xmax 6mm, sensitivity 93.6dB, plus 138cm³ Vd and 126 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size
8"
Impedance
16Ω
RMS Power
280W
Sensitivity
93.6dB
95.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
126
Vented alignment
Vd
138cm³
Datasheet

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

2 curves
109998979681k2k5k10kHzdBfrequency response
frequency response174 ptsp2medium
Curve provenanceInspect 2 tracesHide details

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

  • frequency response

    Frequency response

    Trace datasheet-response-trace-poc/v2
    174 plotted pointsSource file SHA-256 1d68980e7be8…Medium confidence2,450 selected pixels of 2,914
    Manufacturer datasheet, page 2

  • impedance

    Impedance response

    Trace datasheet-response-trace-poc/v2
    240 plotted pointsSource file SHA-256 1d68980e7be8…Medium confidence4,039 selected pixels of 4,393
    Manufacturer datasheet, page 2

T/S Parameters

Valid
Canonical
Fs73Hz
Qts0.50
Qes0.58
Qms3.4
Vas21.3L
Re9.8Ω
Le0.86mH
BL11.0Tm
Sd230cm²
Mms16g
Xmax6.0mm
SPL94dB
Power280W
Power Nominal280W
Impedance16Ω
F Low60Hz
F High4500Hz
What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight3.4kg
Diameter210.0mm
Overall Depth99.0mm
Cutout Diameter186.0mm
Bolt Circle Diameter195.0mm
